Masport PG36-3 Gas Inbuilt
36
PARTS LIST

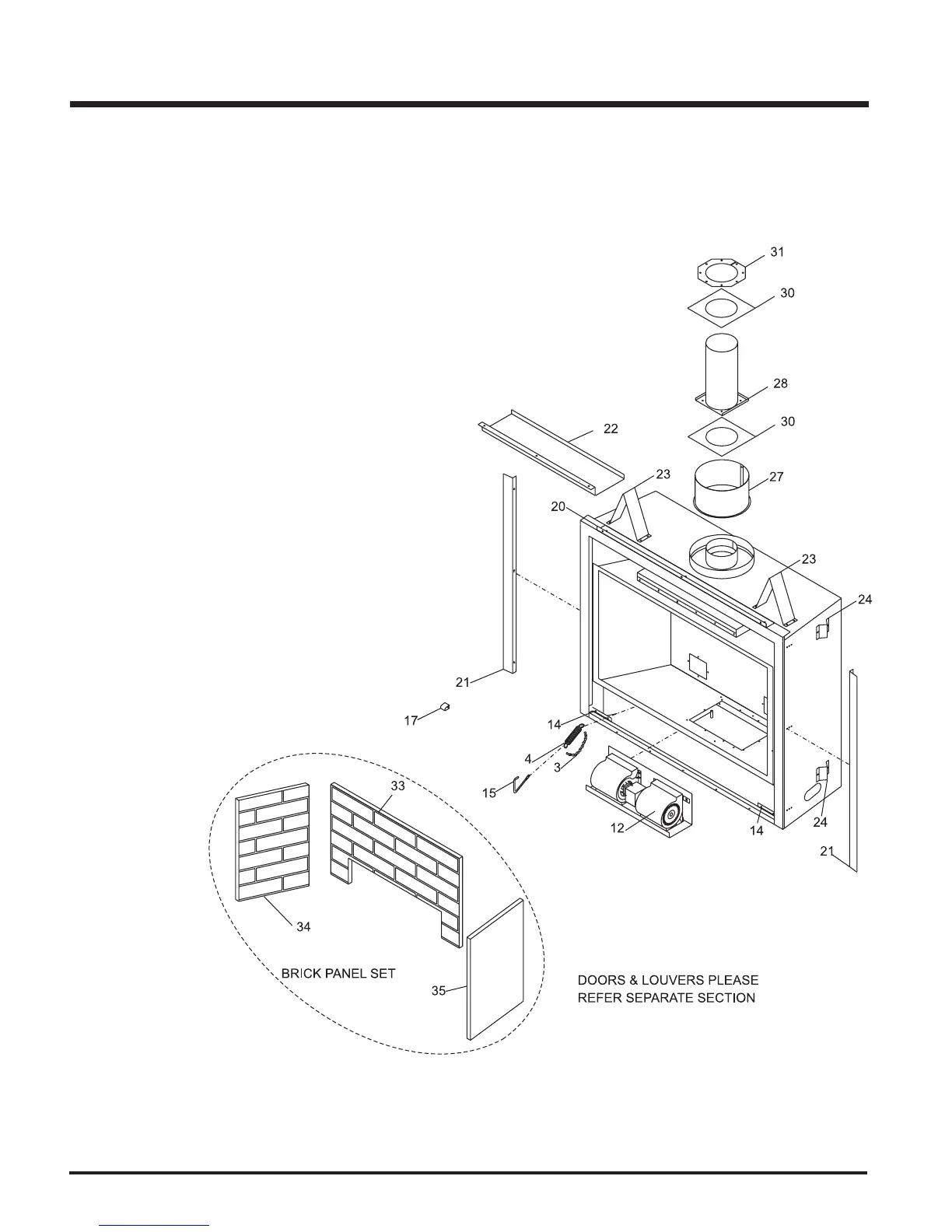

PG36-3 MAIN ASSEMBLY
Part # Description
3) 948-045 Chain
4) 948-025 Spring
12) 510-519/P Fan Assembly (240V)
910-155/P Fan Motor
910-716 Wire Harness (Fan End)
910-809 Wire Harness (Stove End)
910-714 Power Cord (240 V)
14) 510-026 Hinge Bracket - Left/Right
15) 948-253 Door Handle
17) * Wire Holder Clip
20) 510-033 Top Nailing Strip
21) 510-064 Side Nailing Strip
22) 510-153 Baffle Plate
23) 510-011F Standoff - Top
24) 511-044 Standoff - Side/Back
27) * Outer Flue Collar
28) * Inner Flue Collar Assembly
30) * Gasket for Flue Collar
31) * Flue Mounting Plate
513-928 Brick Panel Set (Optional)
33) 902-323 Brick Panel - Back
34) 902-324 Brick Panel - Left
35) 902-325 Brick Panel - Right
511-031 Brick Clip (each)
918-341 Manual
516-969 Conversion Kit - NG to LPG
*Not available as a replacement part.
