Masport PG36-3 Gas Inbuilt 27

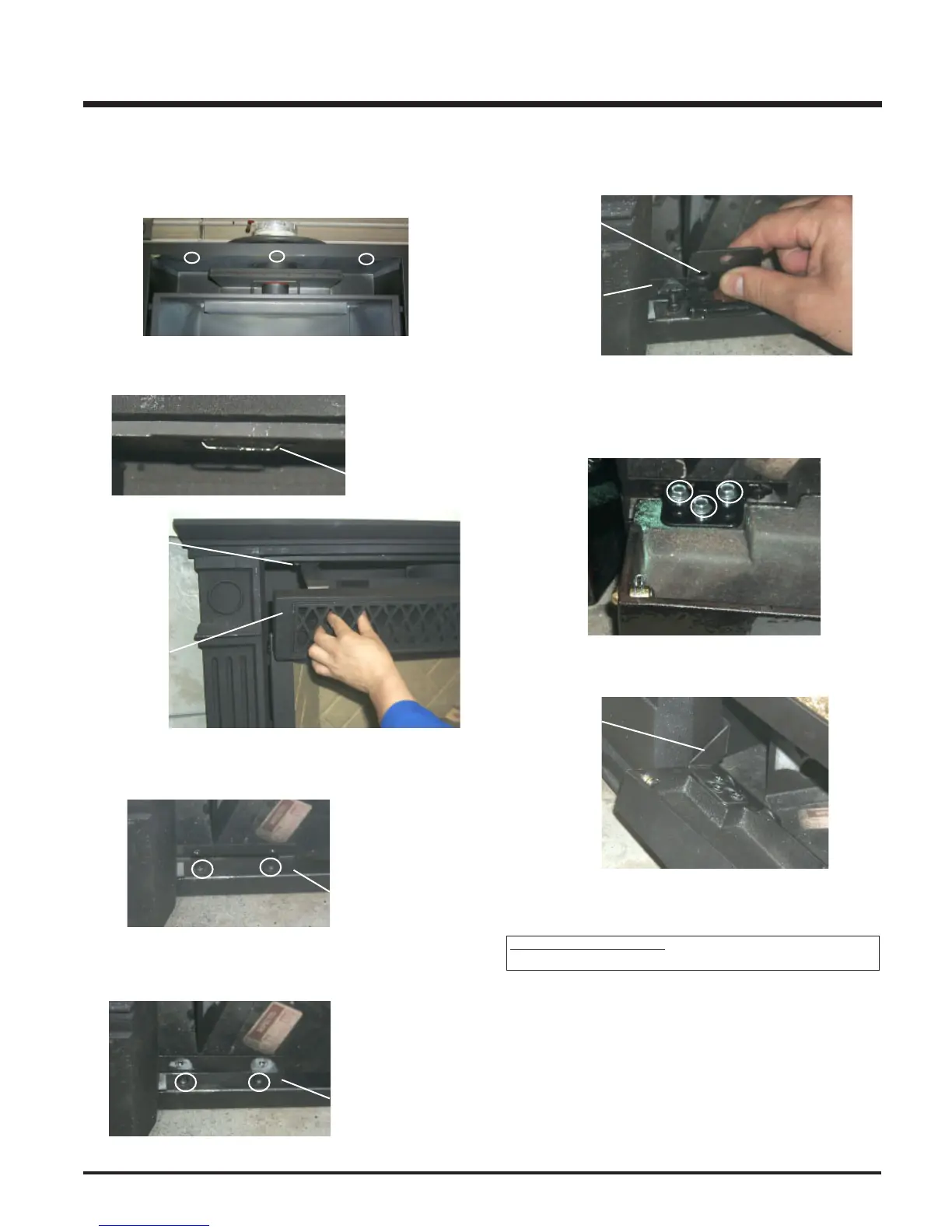

1) Remove the 3 faceplate mounting phillips head screws from the
inside top of firebox, and discard if necessary.
2) Place top grill in brackets located inside top of firebox as shown.
3) Remove hinge brackets on bottom left and right side of firebox by
removing 2 screws and discard brackets only.
Bracket inside top
of firebox.
Hinge bracket.
Left side shown.
4) Install new hinge brackets using the same 2 screws removed in
step 3.
5) Install hinge to bracket then secure with screw.
New hinge bracket.
Left side shown.
6) Place something underneath bottom grill to prevent scratching.
7) Line up hinge holes in bottom grill holes.
8) Place screws half way in -- do not secure completely.
Hinge
9) Place bracket over screws then push to the side against faceplate
to lock in place as per diagram.
10)Tighten screws. (Screws will easily be tightened if using a stubby
screwdriver.)
Bracket
Bracket
Top Grill
Bracket
HAMPTON CAST GRILLS
INSTALLATION
Black Metallic Grills Only
Mount grill stopper to bottom of firebox securing with one screw.
11)Adjust ball plunger if necessary.
To Next Page
