Masport PG36-3 Gas Inbuilt 35

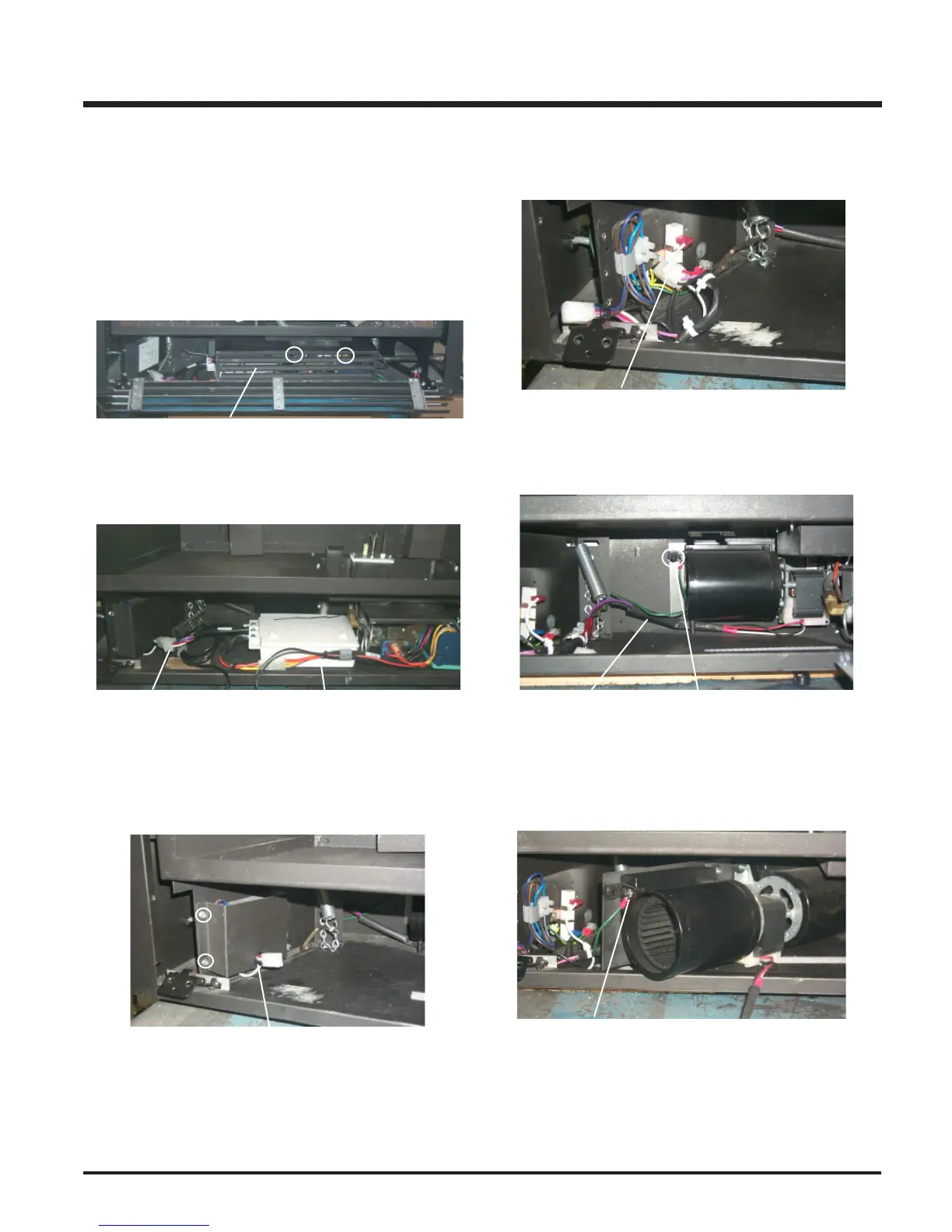

FAN REPLACEMENT
4) Remove the front cover by removing the 2 screws which secure the
front cover to the valve tray.
5) Unplug the 6 pin Molex connector and carefully pull out the ECS box.
6 Pin Molex
Connector
ECS Box
MAINTENANCE
1) Shut off the power supply.
2) Remove the top louvre.
3) Remove the glass door.
Grommet
6) Remove the electric cover by undoing the 2 screws, pull out the
grommet and the harness.
6 Pin Molex
Connector
7) Unplug the 6 Pin Molex Connector from the Fan.
Fan Harness
Screw which
secures the fan.
8) Pull out the fan harness and remove the screw which secures the
fan.
Ground Wire
9) Carefully slide the fan to the front left side of the unit.
10)Remove the screw which holds the ground wire.
11)Pull out the fan.
12)Reverse steps 10 thru 1 to install the new fan.
Front Cover
To Next Page
