Masport SOFIA - Piccolo - Lighting; OPERATING INSTRUCTIONS; Pre-Operation Checklist

Page 14
• Flue must be supported at offsets
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain a 40mm clearance to combustibles
FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS

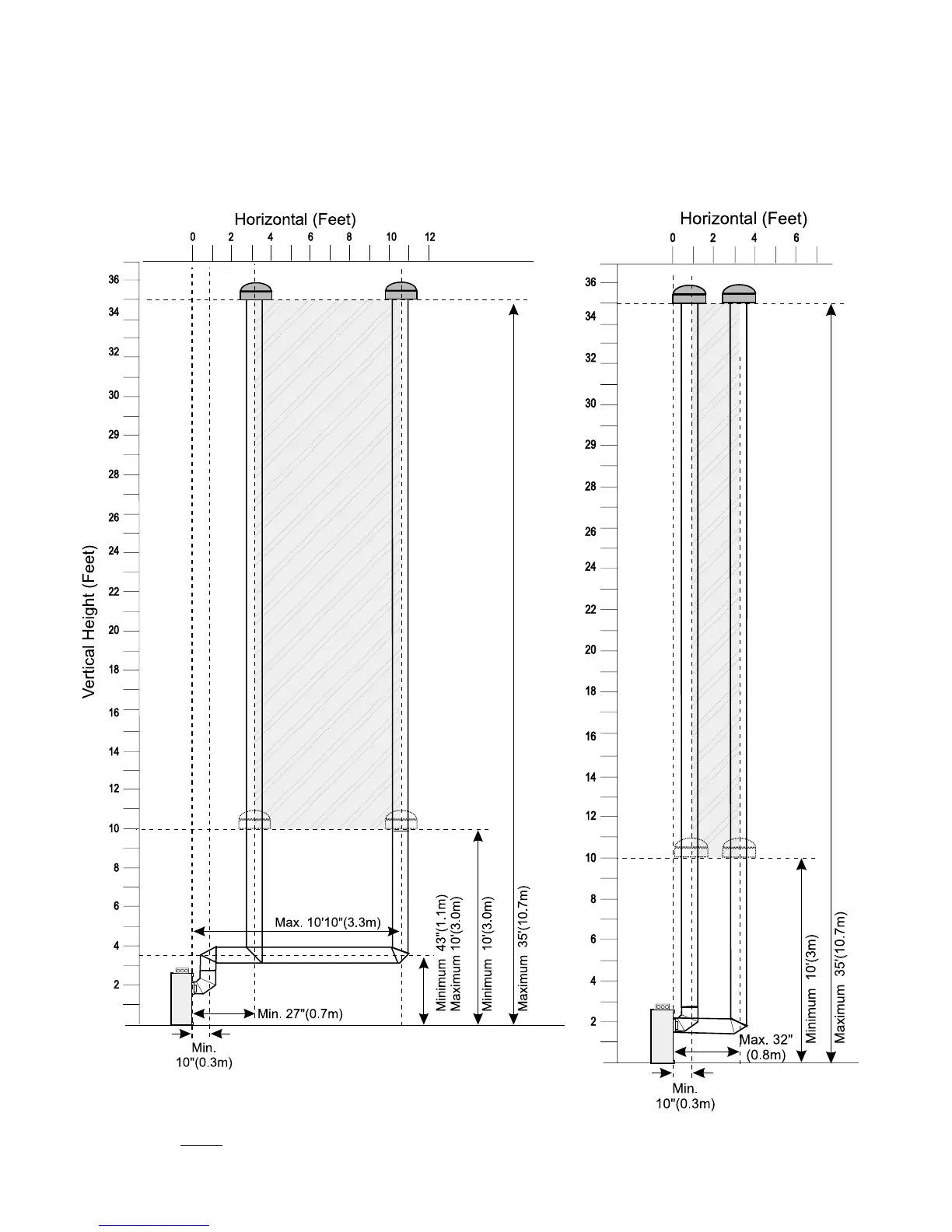

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations
, using three 90
o
elbows (two 45
o
elbows equal one 90
o
elbow).
