Page 69
INSTALLATION
OPTIONAL OUTSIDE COMBUSTION AIR SUPPLY INSTALLATION
A 4" (100 mm) dia. aluminum flex pipe or equivalent
may be installed from the outside (with a proper
exterior cover) to the Zero Clearance cabinet.

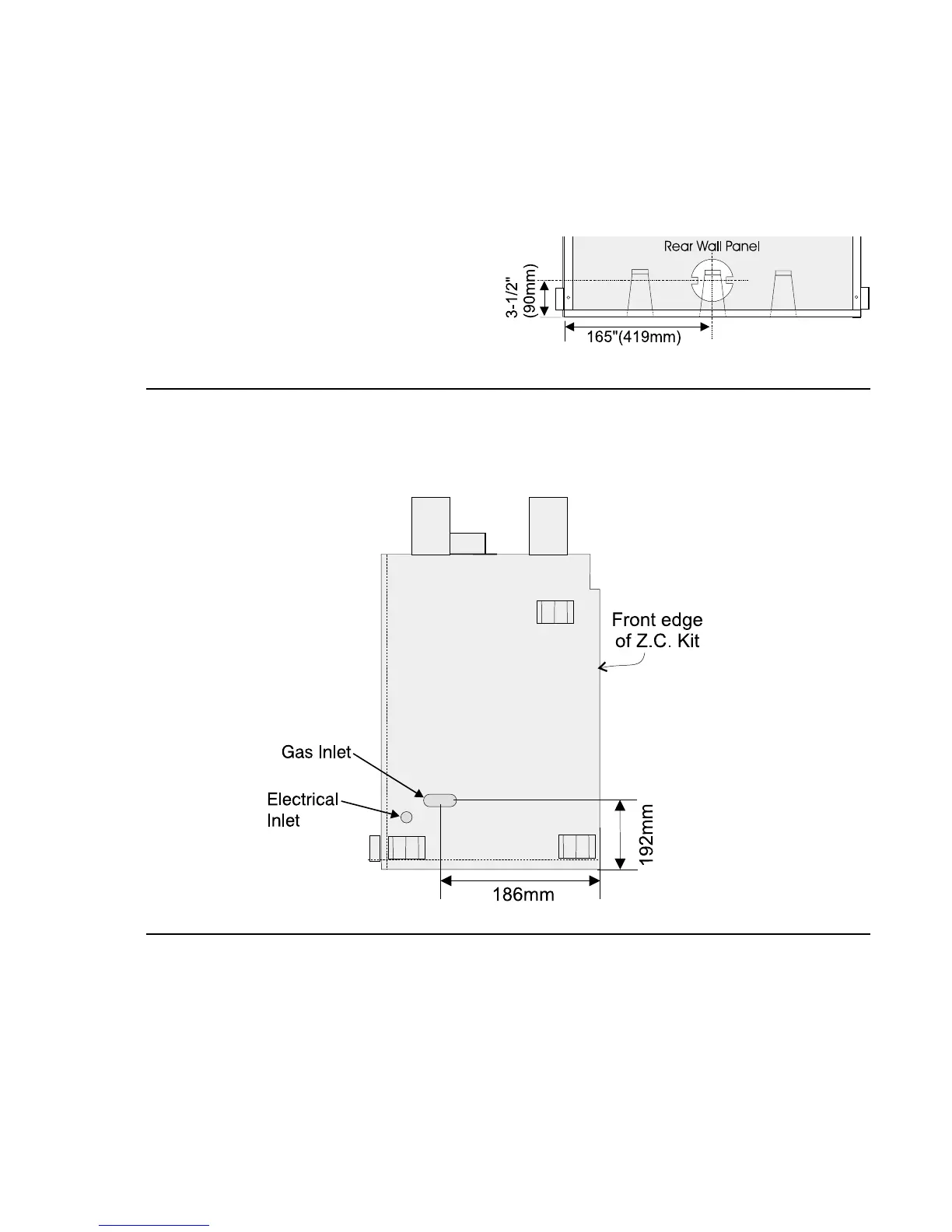

There is an outside hole provided on the rear wall
of the kit. This will provide adequate outside
combustion air supply to the heater.
permit, flex gas line or coiled copper tubing may be used as gas supply line.
ELECTRICAL SUPPLY
Provide 120 VAC, 60 Hz (in Australia and New Zealand: 240 VAC, 50 Hz) receptacle within 24"(610mm) of the
left side of the appliance (not inside the Zero Clearance Cabinet). Plug the cord on the appliance into the
receptacle.
GAS SUPPLY LINE
An authorized service person should install the gas line in accordance with all local building codes. If codes
