Page 17
Grenada / Calais (P36-2)
Framing, Flue &
Clearance Information

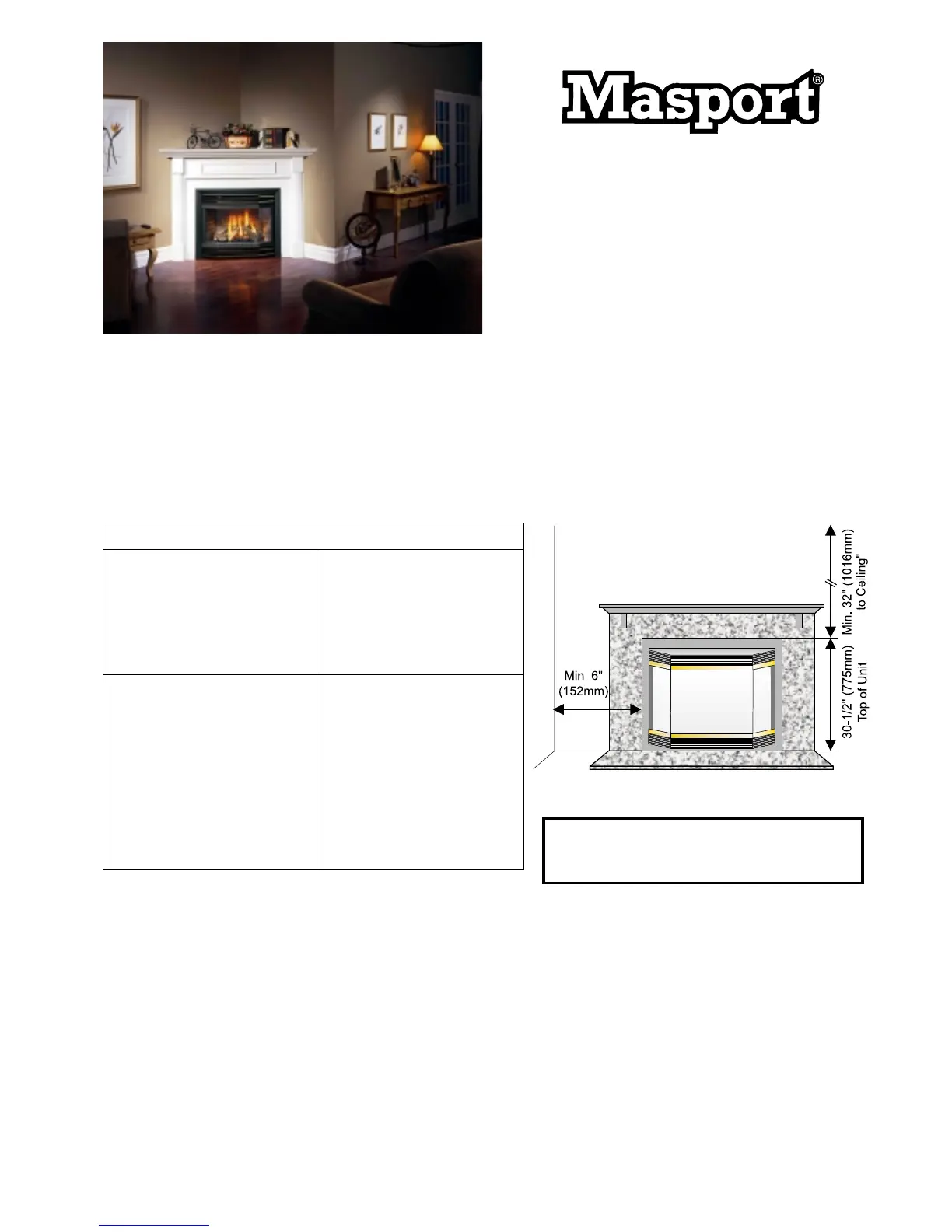

CLEARANCES
The clearances listed below are minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required
clearances (air space) to combustible materials. It is of the greatest
importance that this fireplace and vent system be installed only in accordance
with these instructions.
Clearance to combustibles from:
Back (0mm) Side Wall Clearance
Side (0mm) Bay or Flush Front (152mm)
Floor (0mm)
NOTE: The minimum floor clearance
must be maintained from the top Vent (38mm) Flex
surface of the carpeting, tile, etc.
Minimum Clearance from Top of Unit to: Alcove Clearances:
Mantel* min. (177mm) Max. Depth (914mm)
Ceiling (1016mm)
from top of unit. Min. Width (1219mm)
Min. Height (1499mm)
Horizontal Clearances
Top (51mm)
Side (40mm)
Bottom (40mm)
WARNING
Fire hazard is an extreme risk if these
clearances are not adhered to.
Clearances for Bay or Flush Front
Note:
Gas supply from right hand side
and power from left hand side
