INTRODUCTION
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers
Charger Receptacle
Connect the charger cord to this charger receptacle (11) to charge the batteries (Figure 6).
Weather Enclosure (if equipped)
A weather enclosure provides protection from strong weather conditions.
Rear View Mirror (if equipped)
The rear view mirror is adjustable for use during the day or night.
DC to DC Converter
The DC to DC Converter Supplies power to the power accessories.
Battery Compartment
Lift the front seat to access the battery compartment for maintenance of the batteries and for
access to the Tow Switch.
In the DS-A2-2 L6e model,
1. There is a plastic isolator plate with a key lock. According to the European Regulation,
the street legal model should protect the battery compartment with one locked door, so
this locked plated will be only allowed the Owner authorized person to service.
2. There is a seat sensor under the driver seat, only when the driver sit on the cart, then
it can drive the cart. When driver leave the seat, it will release an alarm signal sound, this
is the L6E EEC requirement.
3. There is an Emergency Stop Button located on the Seat pop, According to European EEC
Regulation requirement, this button is a Must for driver emergency stop the whole cart power supply;
11
4. There is a Lock on the steering column, the function for locking the steering wheel
Owner’s Guide

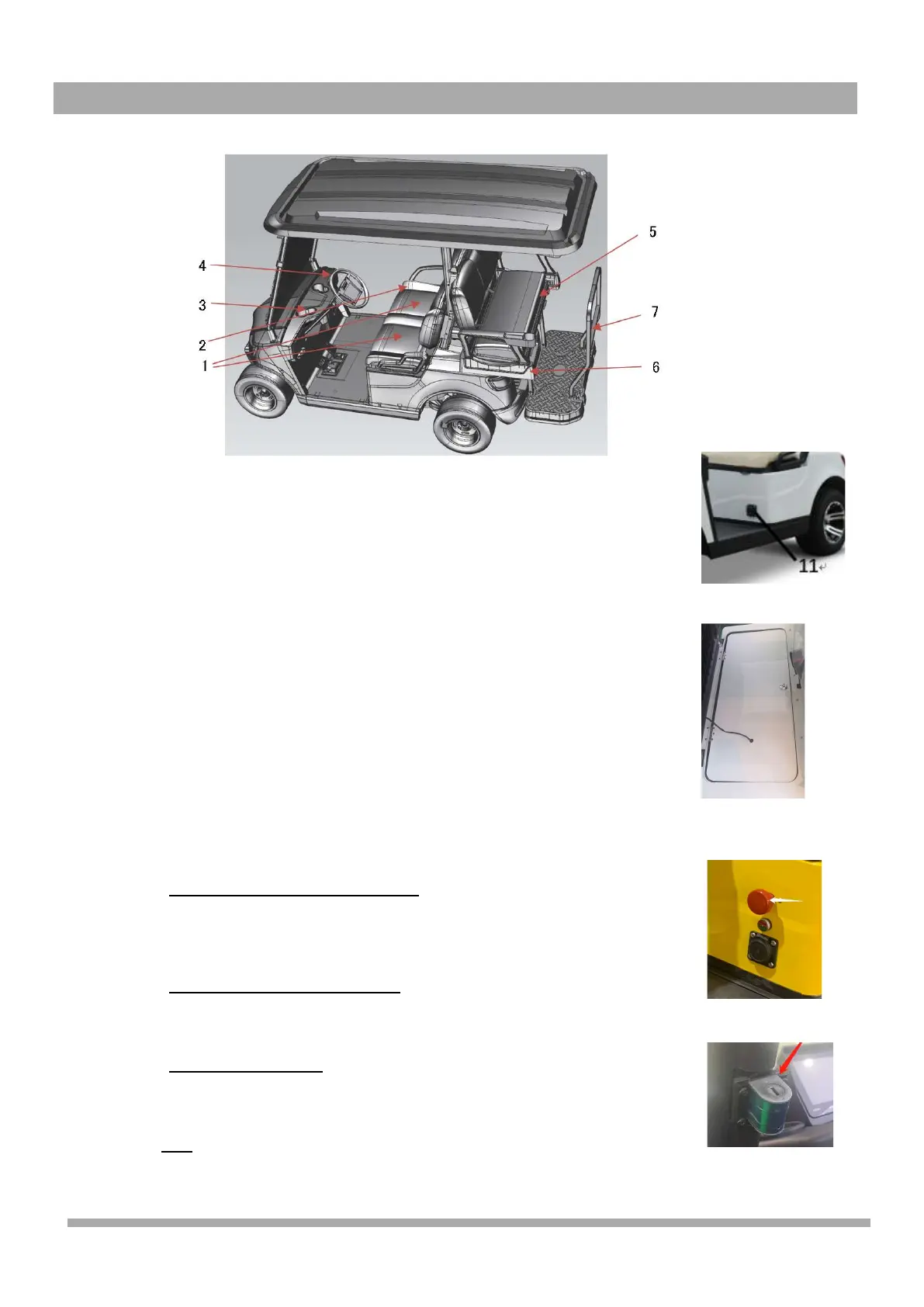

Figure 6
Charger Receptacle
Isolator plate
Emergency Stop Button
Lock For Steering Wheel
To Next Page
