Owner’s Guide
LIGHT BULB REPLACEMENT
To decrease the risk of premature bulb failure, do not allow your fingers to contact new bulbs. Use clean, dry
paper or paper towels to touch the glass part of the bulb.
Headlight (if equipped)
Make sure that the vehicle key switch is in the OFF
position and the key has been removed. For
vehicles equipped with lights mounted in the cowl
locate the headlight bulb socket on the backside of
the light assembly.

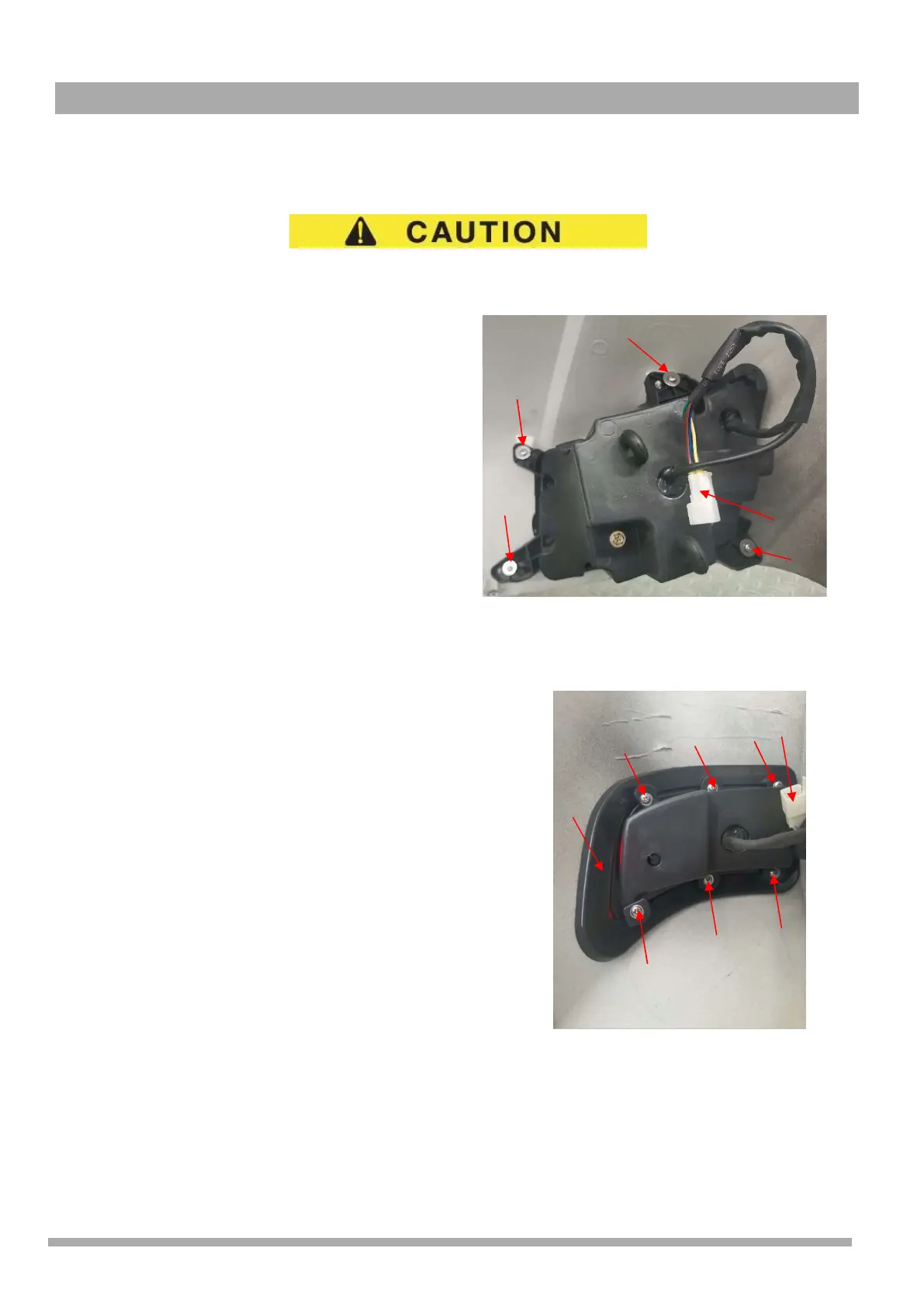

Replace the entire headlight
• Disconnect the wiring harness (1) (Figure 1)
• Use a Phillips screwdriver to take out the bolts (2)(3)(4) (5)
and take out the headlight assembly
• Replace with new headlights and fix the bolts at (2)(3)(4) (5)
• Connect the upper wiring harness (1)
Taillight/brake (if equipped)
Make sure that the vehicle key switch is in the OFF position and the
key has been removed.
•
Remove the nail (1)(2)(3)(4)(5)(6) with a Phillips screwdriver,
and take out the maintenance cover (7).
•
Remove the screw (12) with a Phillips screwdriver, and take
out the rear tail light (13).
•
Separate the wiring harness (8) to take out the rear light.
Replace with a new rear light and connect the wiring harness (8).
•
Fix the bolt (1)(2)(3)(4)(5)(6) with a Phillips screwdriver.
•
Cover the repair cover (7).
Figure 2
1
3
2
4
5
3
2
1
4
5
6
7
8
