4.11 MEASURING AC VOLTAGE
WARNING
Beware of Electrocution.
Pay special attention to avoid electric shock when
measuring high voltage.
Do not input the voltage which more than 750V rms AC.
4.12.1 Plug the black test lead into the COM jack and the red test
lead into the INPUT jack.
4.12.2 Set the rotary selector to position to make the meter
get into AC V range.
4.12.3 Connect the test leads to the voltage source or load terminals
for measurement.
4.12.5 Take the reading on the LCD.
NOTE:
1) “ ” means the maximum input voltage is 750V rms AC.
2) If the test result is more than 750V rms AC, symbol “OL” will
be displayed on LCD and the build-up buzzer will sound.
- 23 -

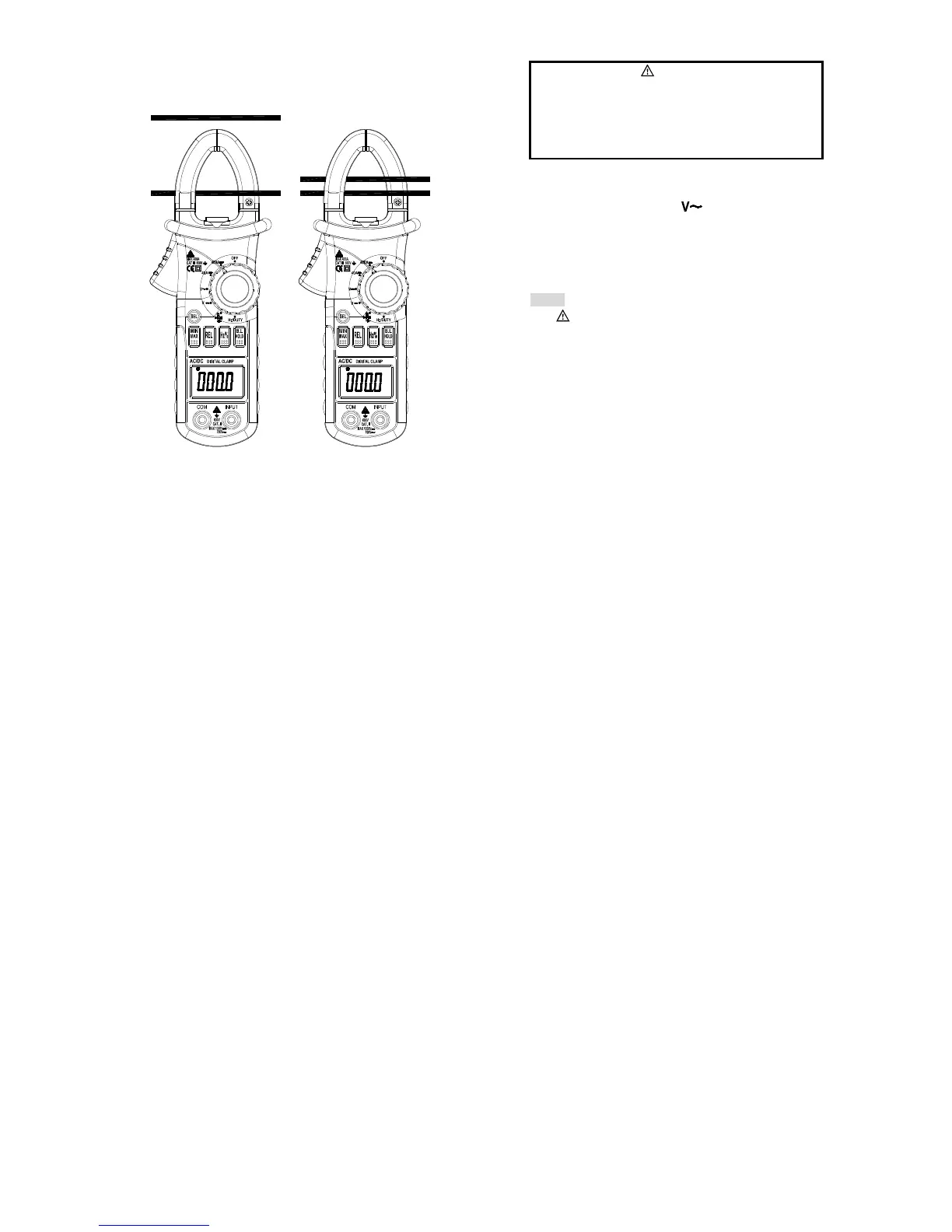

Correct Incorrect
