- 34 -

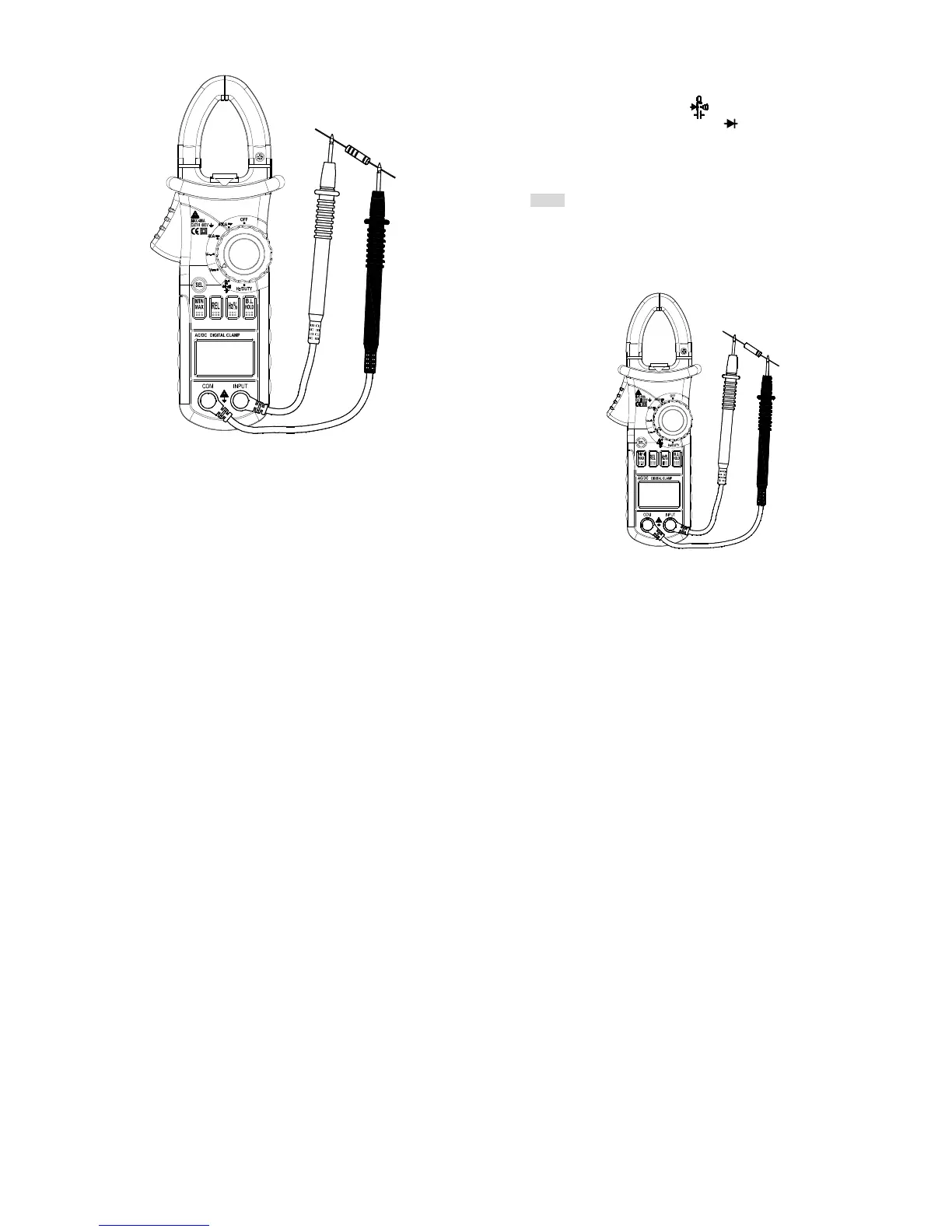

4.16 TESTING DIODE
4.16.1 Plug the black test lead into the COM jack and the red test
lead into the INPUT jack.
4.16.2 Set the rotary selector to the range position.
4.16.3 Press the "SEL" button to switch to test.
4.16.4 Connect the red test lead to the anode and the black test lead
to the cathode of the diode for testing.
4.16.5 Take the reading on the LCD.
NOTE:
1) The meter will show the approximate forward voltage drop of
the diode.
2) When the test leads have been reversed or open, ‘OL’ will
appear on the LCD.
- 35 -
