Assembly Instructions
Step 3
Step 4
Product no. 085-3250-4 (TF2201804-MC) |
Contact us: 1-855-803-9313

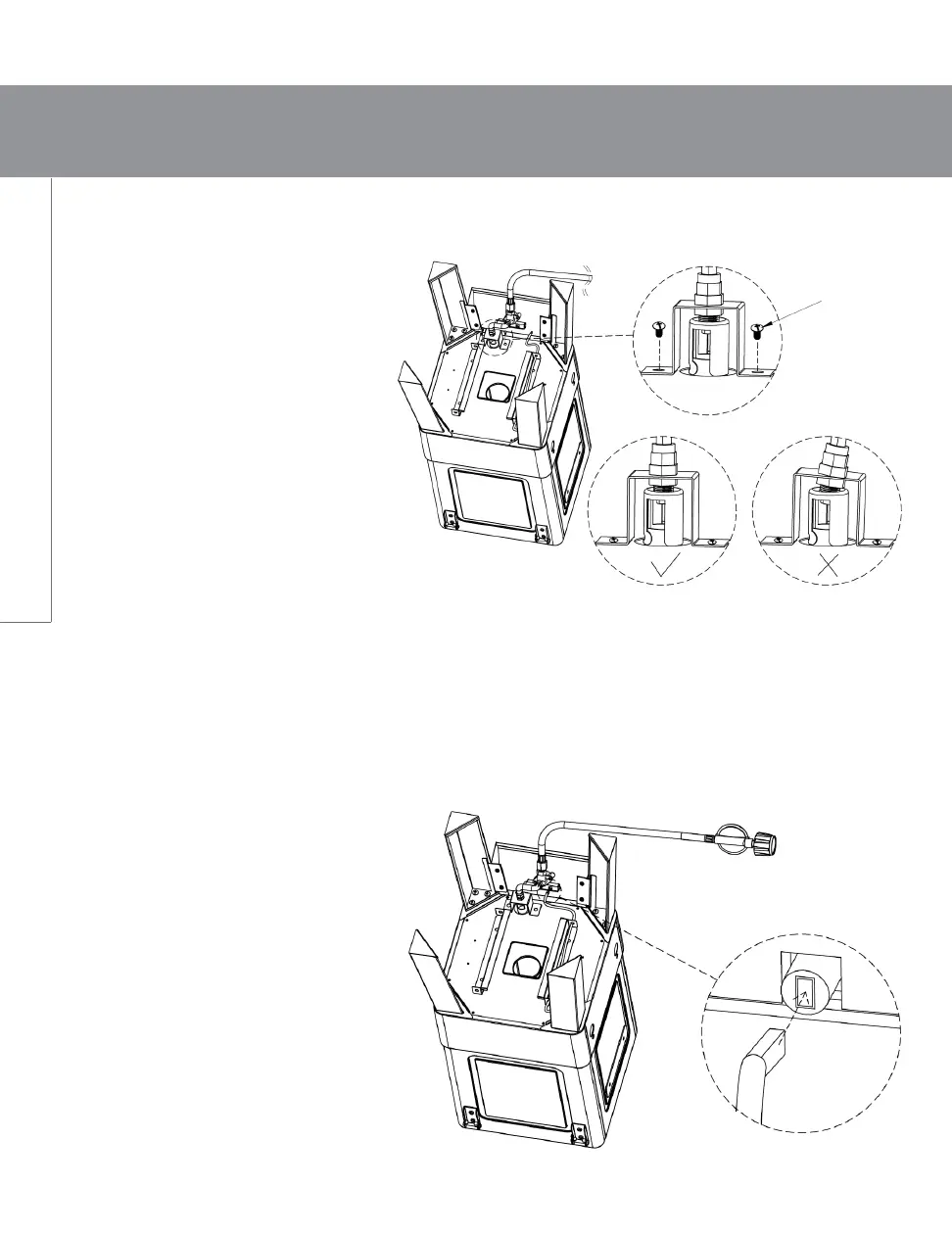

Attach the Orifice Bracket to the
bottom of the body assembly by
using 2 pcs M6 x 12 mm Bolt (A)
as shown.
Make sure that the valve outlet
(orifice) is inserted UPRIGHT
into the burner port.
A
Correct Position
Incorrect Position
Insert the terminal of the ignition
wire into the connector of the
burner valve.
To Next Page
