8

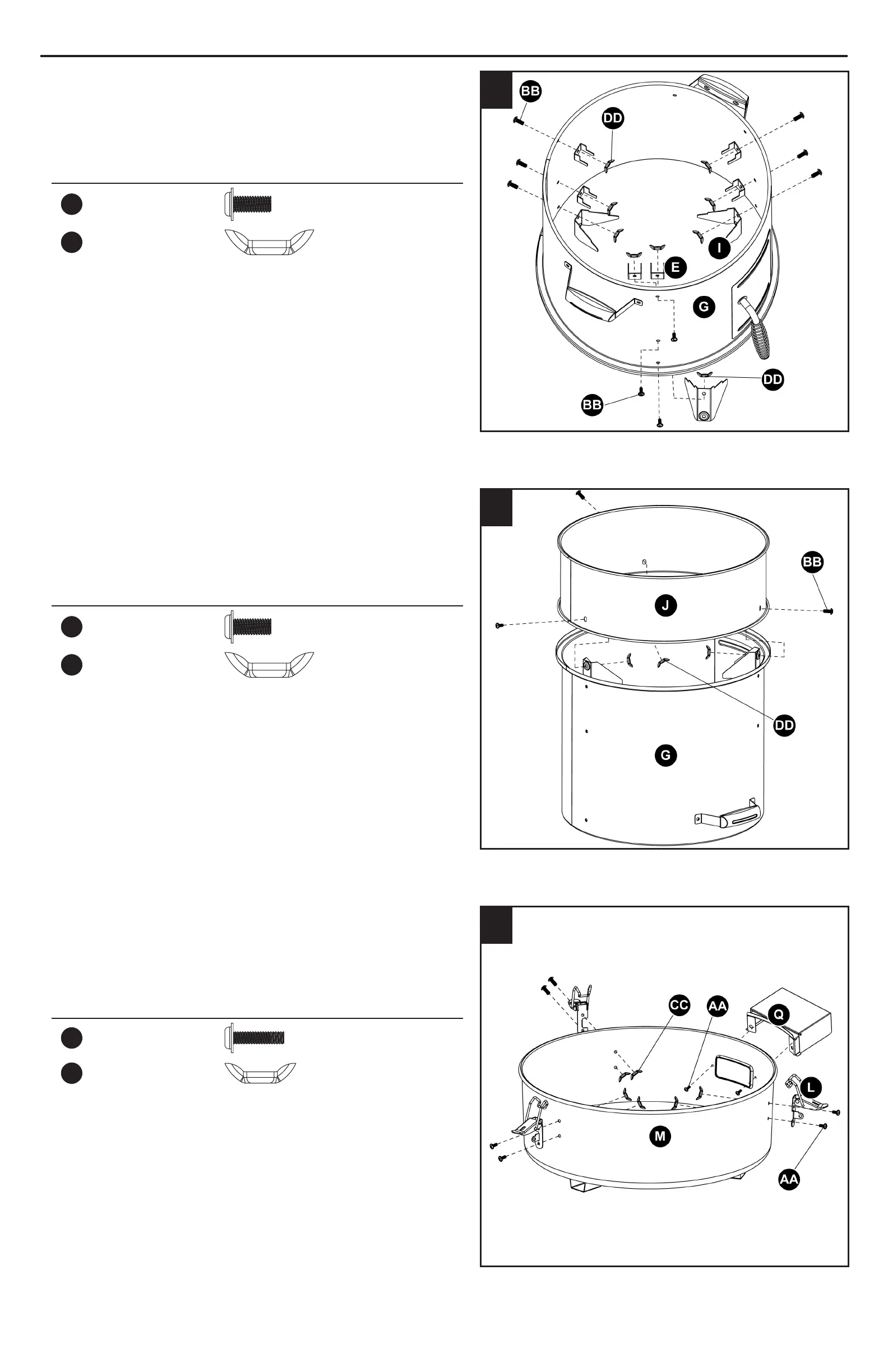

ASSEMBLY INSTRUCTIONS
5. Flip the upper smoker body (G) upside down.
three screws (BB) and three wing nuts (DD).
Turn assembled smoker body right-side up.
Hardware used
BB
M5 x 12 mm Screw
x 3
DD
x 3
5
6. Attach (Q) to
bottom bowl (M) using two screws (AA).
Attach locks (L) to bottom bowl (M) using six screws (AA) and six
wing nuts (CC).
Hardware used
AA
M4 x 15 mm Screw
x 8
CC
x 6
6
4. Attach water pan supports (I) to upper smoker body (G) using
three screws (BB) and three wing nuts (DD).
Attach cooking grid supports (E) to upper smoker body (G) using
six screws (BB) and six wing nuts (DD).
Hardware used
BB
M5 x 12 mm Screw
x 9
DD
x 9
4
To Next Page
