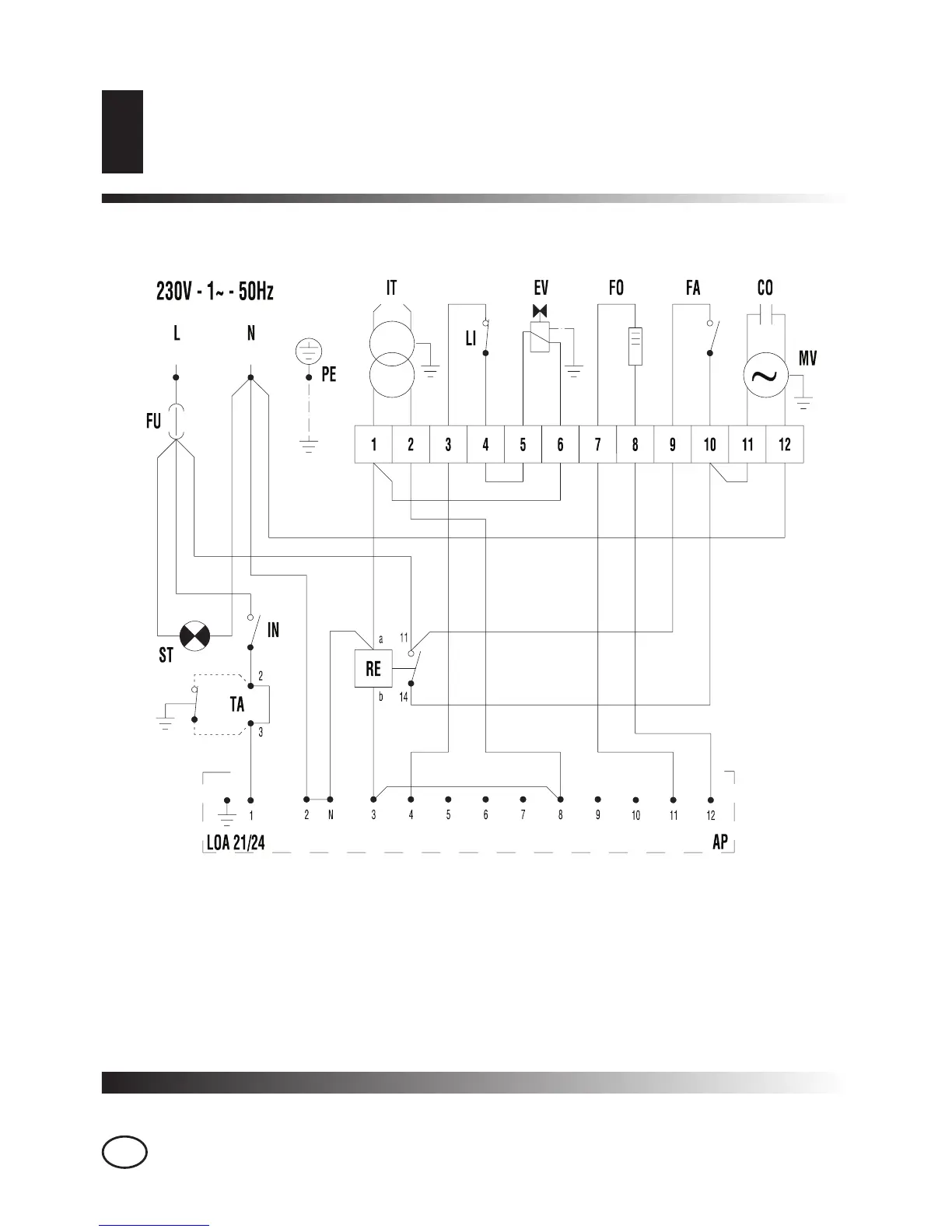

ELEKTROSCHALTPLAN
FU Schmelzsicherung
6A BV80E, BV100E, BV160E, B220CEA
10A BV280E, B354CEA
IT Hochspannungstransformator
LI Sicherheitsthermostat
EV Elektroventil
FO Fotozelle
FA Ventilatorthermostat
CO Kondensator
MV Ventilatormotor
ST Spannungsanzeige
IN Schalter
TA Steckvorrichtung Raumthermostat
RE Relais
AP Steuergerät
