Master MH-80T-KFA - Wiring Diagrams

NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
© 2018 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual
10

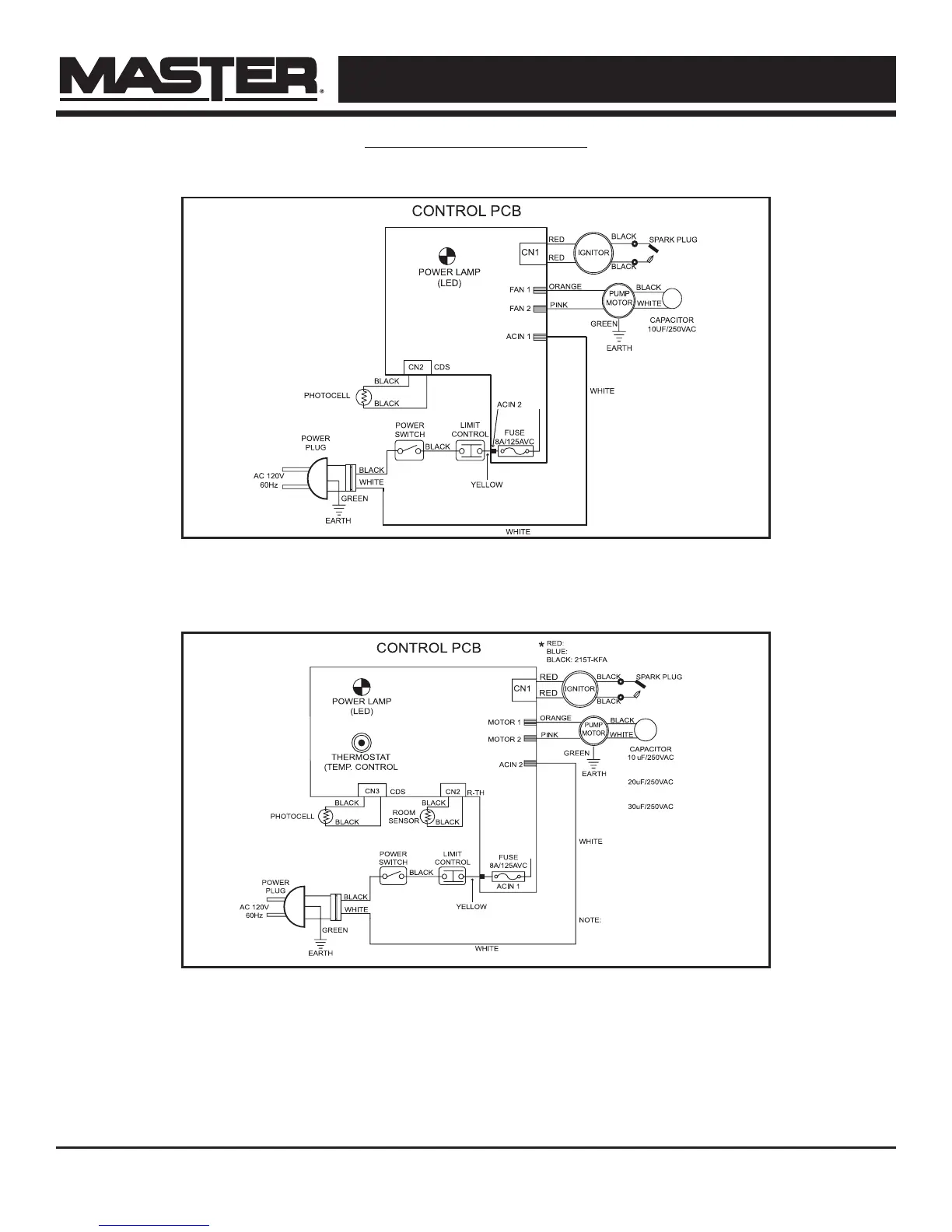

WIRING DIAGRAMS
(80T-KFA)
(140T-KFA)
(175T-KFA / 190T-KFA / 215T-KFA)
Models
140T/175T/190T/215T-KFA have
a digital display.
80T-KFA
140T-KFA / 175T-KFA / 190T-KFA
45-KFA
80T - 215T- KFA
