© 2018, Pinnacle Climate Technologies, Inc. Manuel de l’utilisateur de la chaufferette à air forcé à
entraînement silencieux
NE JAMAIS LAISSER UNE CHAUFFERETTE SANS
SURVEILLANCE LORSQU’ELLE BRÛLE OU QU’ELLE EST
BRANCHÉE À UNE SOURCE D’ALIMENTATION.
12
1
2
8
11
15
9
7
14
6
5
16
13
3
4
10
17
12
28
25
27
18
19
21
24
26
24
22
20
29
30
31
23
32
33
34
35
36
39
38
37
40

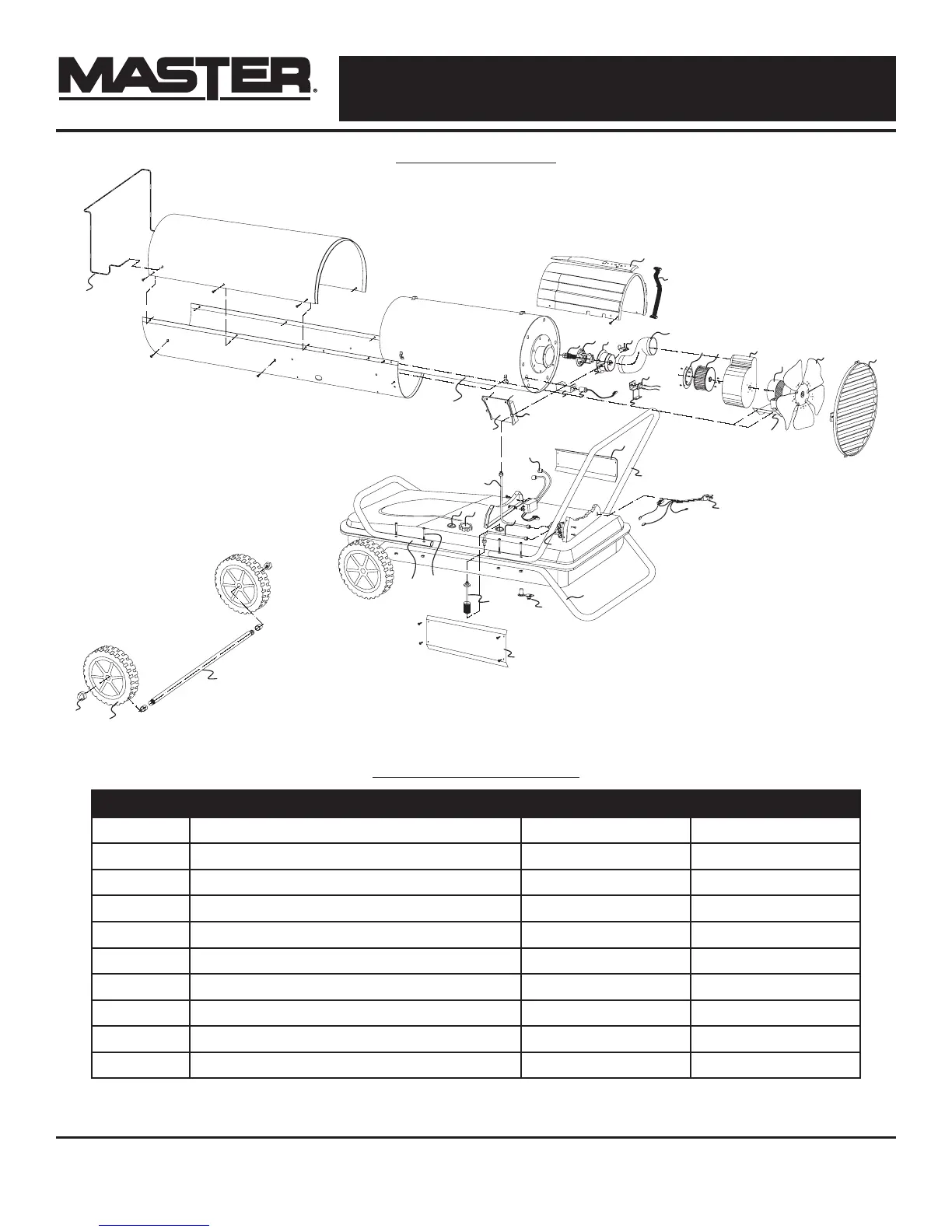

VUE ÉCLATÉE
LISTE DES PIÈCES
N
o
de réf. Description 150T-SDR 220T-SDR
1 Chambre de combustion 70-011-1000 70-011-1010
2 Circuit d’alimentation principal 70-027-2005 70-027-2005
3 Boîtier du circuit d’alimentation 70-027-1250 70-027-1250
4 Fil du circuit d’alimentation 70-027-1025 70-027-1025
5 Buse 70-015-1000 70-015-1010
6 Diuseur d’air 70-063-1000 70-063-1000
7 Tête du brûleur 70-014-1000 70-014-1000
8 Raccord de conduite de carburant 70-014-1100 70-014-1100
9 Bougie 70-052-1000 70-052-1000
10 Limiteur 70-019-1000 70-019-1000
