NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
5
1. Insert axle through holes in wheel support.
2. Slide then spacer onto axle.
3. Slide wheel onto axle and hold in place with the
axle nuts. (See Figure 1).
4. Place heater on wheel support frame and line up
holes on the fuel tank lip.
5. Attach front handle with (4) long screws
(50 mm) and (4) nuts through the second and
third hole from the front on both sides of the tank
lip and wheel support frame and tighten firmly.
6. Insert (2) short screws (30 mm) through the first
hole the front of in the tank lip and tighten firmly.
Make certain all (6) screws are secure.
7. Attach rear handle with (4) long screws (50 mm)
and (4) nuts through the first and second hole
from the rear on both sides of the tank lip and
wheel support frame and tighten firmly.
8. Attach front guard with the included hardware.

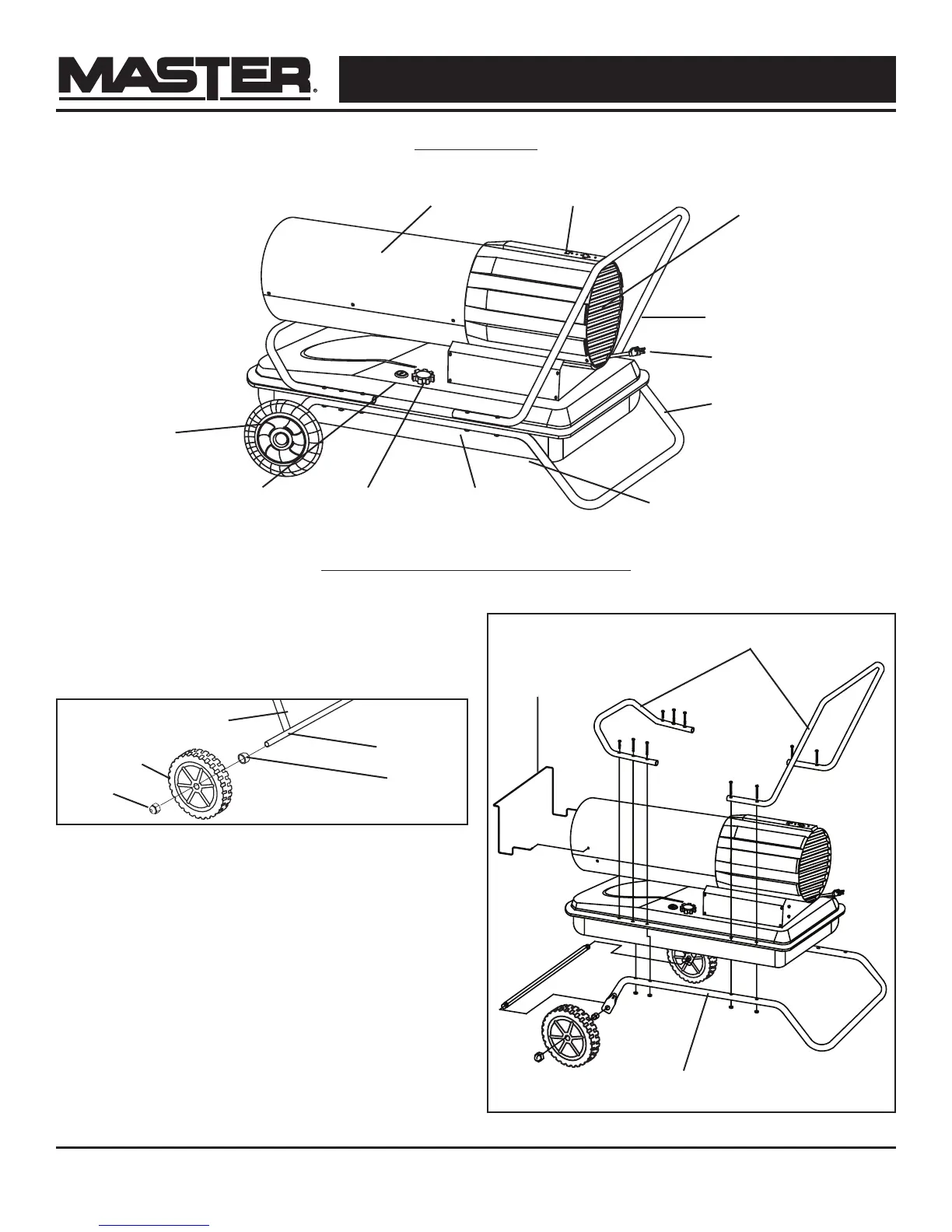

ASSEMBLY INSTRUCTIONS
Models: 150T-SDR / 220T-SDR
Figure 1
Axle
Axle Nut
Spacer
Tire
Wheel Support Frame
Figure 2
Handle
Wheel Support Frame
Safety Guard
FEATURES
Control PanelShell
Wheel
Fuel Gauge Fuel Cap Fuel Tank Drain Bolt
Support Frame
Power Cord
Handle
Rear Guard
To Next Page
