© 2018 Pinnacle Climate Technologies, Inc. Silent Drive Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
7
OPERATION CONT.
Starting the Heater: (Ignition)
1. Fill the tank with kerosene or other approved
fuel until needle on fuel gauge points to “F”.
2. Replace fuel cap and tighten firmly.
3. Connect the heater to a three prong
(grounded) power source. You must use a
three prong (grounded) extension cord that
is at least 6 feet long and is a minimum of 14
AWG rating.
4. Press the power button to power on the
heater (see Figure 3).
5. Select desired temperature using temperature
+/- buttons.
6. The heater will ignite once the temperature
setting is higher than the ambient
temperature in the space.
Stopping / Restarting Heater:
- To stop the heater, move the power switch to
the “O” position and unplug the power cord.
- To restart the heater; wait 10 seconds and
follow ignition steps.
Adjusting the Pump Pressure:
- Remove the right side cover (4 screws). Behind
the panel, the pump will have a brass screw.
Turn screw in quarter turn increments.
- Clockwise increases the pressure.
- Counterclockwise decreases pressure.
TIP: If the heater does not ignite; press
power button to power o the heater, check
steps 1-3 above and press power button to
power ON the heater.
TIP: If the heater does not ignite, the
thermostat may be set too low. Increase the
temperature to a higher setting until the heater
ignites.

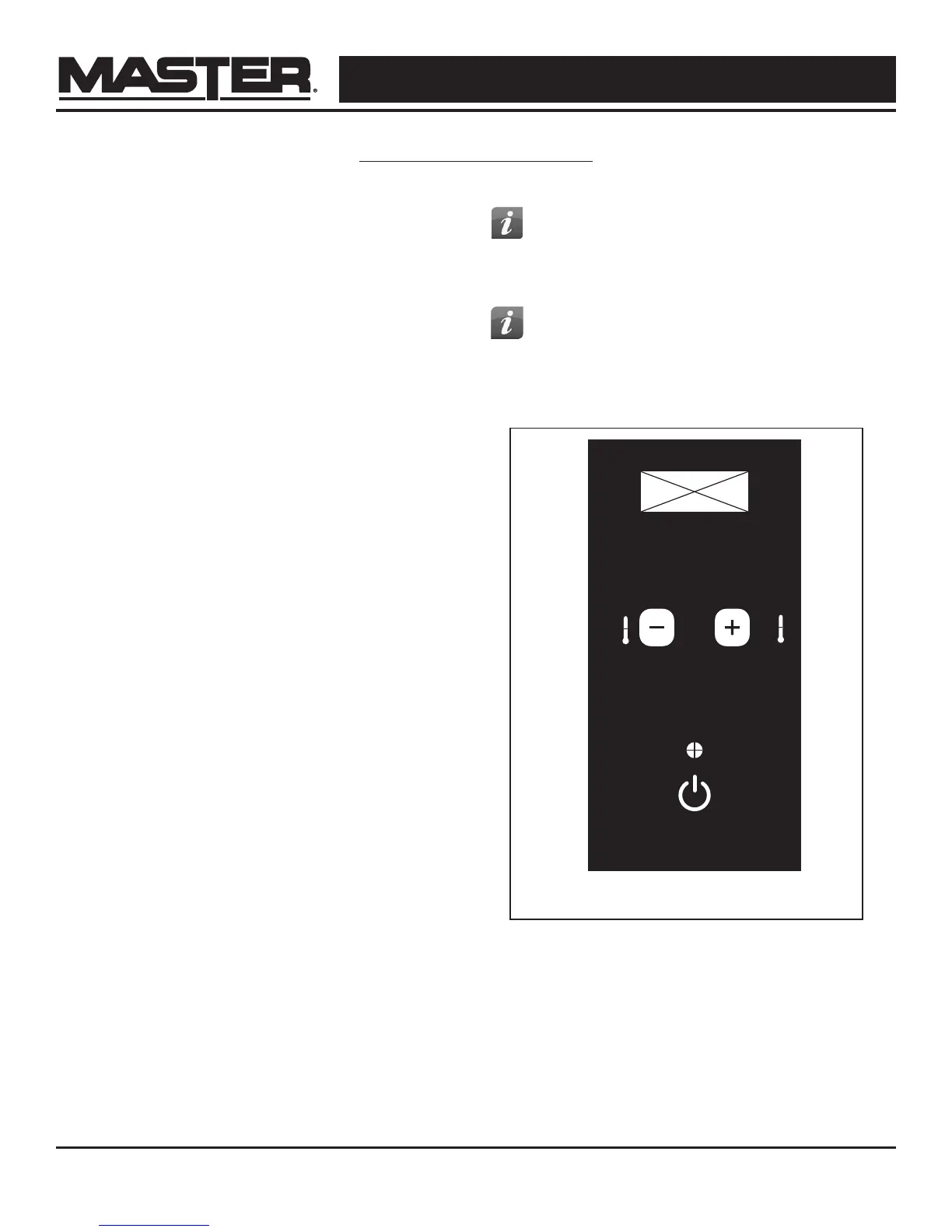

Figure 3
SDR 220 Rating Label + Control Panel
Model - Modelo MH-220T-SDR
COMPLIES WITH UL 733 AND
CSA-B140.0-03 AND CSA B140.8-1967
Minimum Distance From Combustibles:
Outlet: 8 ft. (250 cm) Sides / Top / Rear: 4 ft. (125 cm)
Minimas Distancias de Separacion de Materiales
Combustibles:
Salida de Aire: 8 ft. (250 cm)
Lateral / Superior / Posterior: 4 ft. (125 cm)
BTU/Hr - BTU/h 220,000
Fuel Consumption Gal./Hr.
Consumo de Combustible Gal./h
Fuel Tank Capacity Gal.
Capacidad del Depósito Gal.
V~Hz/Amps - V~Hz/Amperes 120V~60Hz / 3.15
Fuse - Fusible 3.15A
Type of Fuel No. 1 / Kerosene
Tipo de aceite combustible No. 1 / Queroseno
Maximum Air Outlet Temp. °F
Max. Temp. Del Aire De Salida °C
Pump Pressure PSI - Presión de le Bomba 123
Phase - Fase 1Ø
1.67
13
1025
552
© 2018 Pinnacle Climate Technologies, Inc.
www.masterindustrialproducts.com
Made In China
Hecho en China
See Operating Instructions and Troubleshooting on
side panel.
Las instrucciones de Funcionamiento y soluciónes
de problemas se encuentran en el panel lateral.
°F
°F
