© 2018 Pinnacle Climate Technologies, Inc. Silent Drive Forced Air Heater User’s Manual
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR
WHILE CONNECTED TO A POWER SOURCE
12
1
2
8
11
15
9
7
14
6
5
16
13
3
4
10
17
12
28
25
27
18
19
21
24
26
24
22
20
29
30
31
23
32
33
34
35
36
39
38
37
40

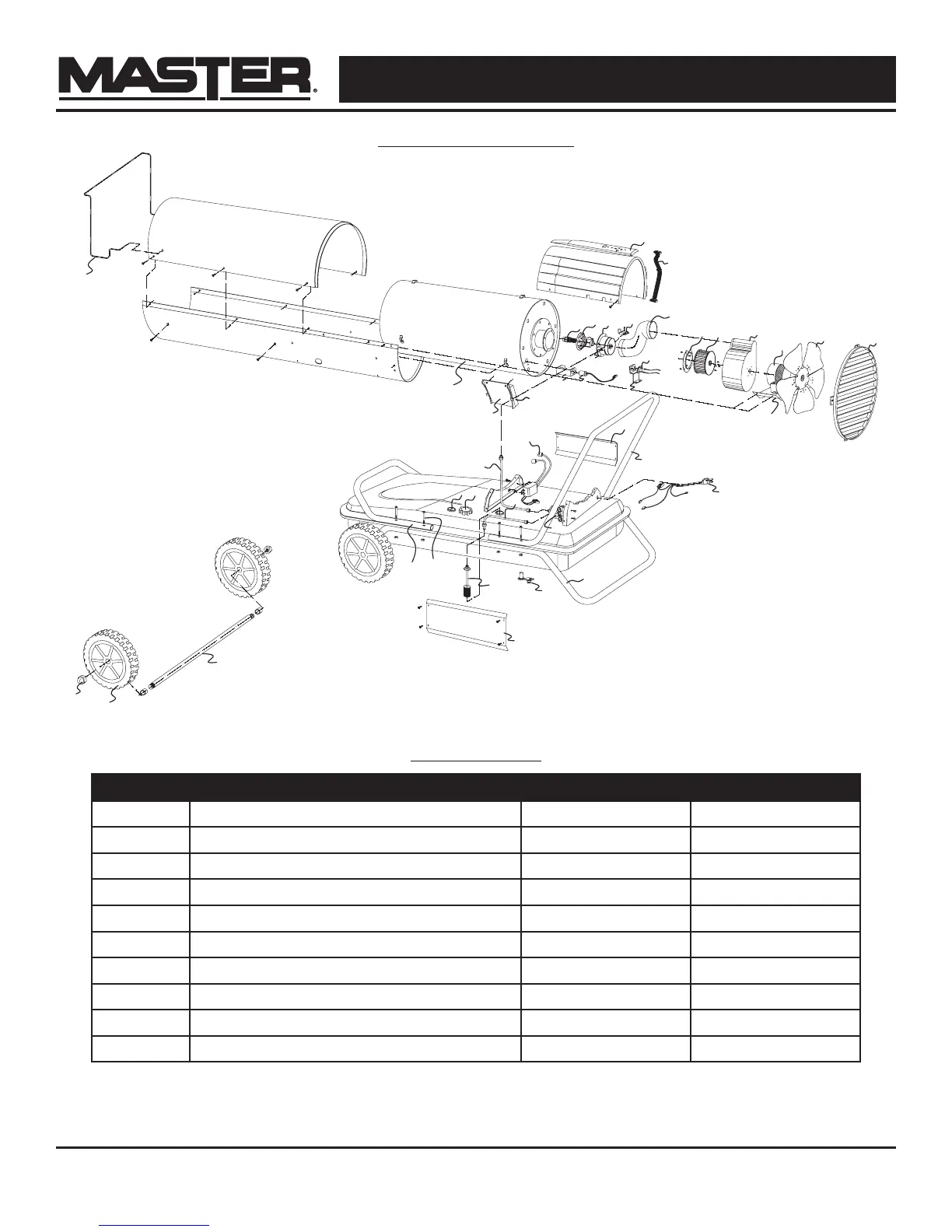

EXPLODED VIEW
PARTS LIST
Item # Description 150T-SDR 220T-SDR
1 Combustion Chamber 70-011-1000 70-011-1010
2 Main Power PCB 70-027-2005 70-027-2005
3 Power PCB Case 70-027-1250 70-027-1250
4 PCB Lead Wire 70-027-1025 70-027-1025
5 Nozzle 70-015-1000 70-015-1010
6 Air Dispenser 70-063-1000 70-063-1000
7 Burner Head 70-014-1000 70-014-1000
8 Fuel Line Nipple 70-014-1100 70-014-1100
9 Spark Plug 70-052-1000 70-052-1000
10 Limit Control 70-019-1000 70-019-1000
