Tools needed for assembly:
Phillips Head Screwdriver
Adjustable Wrench
Do not tighten screws all the
way. Cooker stand legs may
need to be adjusted during
assembly.

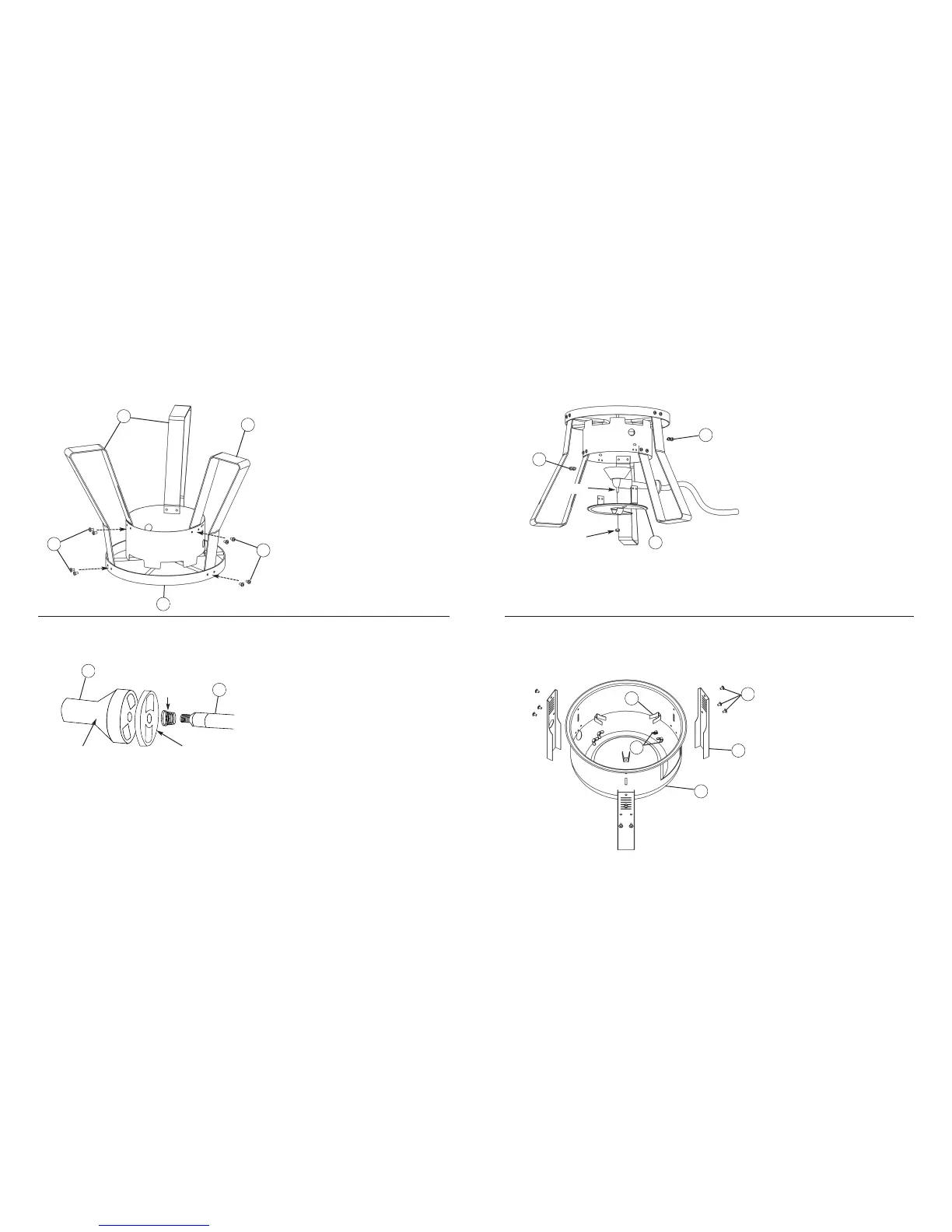

STEP 1.
Attach cooker stand legs (5) to
cooker head (4) using phillips head
flange screws (B) as shown.
NNooww ttiigghhtteenn aallll ssccrreewwss..
STEP 2.
Burner Hose Assembly:
Place air shutter on burner (13)
venturi.
Slide small end of spring onto end of
hose (20).
Thread end of hose into burner
clockwise to tighten. Do NOT
overtighten.
Before assembly read
instructions carefully.
Assemble unit on a clean, flat
surface.
B
B
4
5
5
Burner Venturi Air Shutter
Spring
20
13
Make sure open end of burner
mount faces between cooker
stand legs. This is necessary in
order to mount burner/hose
assembly.
STEP 3a.
Attach burner mount (14) to cooker
head using phillips head flange
screw (B) as shown.
STEP 3b.
Remove burner nut from
burner/hose assembly.
Insert burner bolt through burner
mount.
Secure with burner nut.
STEP 4.
Place base pan (3) on top of cooker
stand and align slots with cooker
stand legs.
Align bottom two holes of each
smoker leg (6) with base pan and
secure with phillips head flange
screw (A) and wing nuts (E).
Position grill bracket (D) on inside of
base pan so it is aligned with top
hole of smoker leg. Insert phillips
head flange screw (A) through
smoker leg, base pan and grill
bracket.
B
B
14
A
6
3
D
E
Burner Bolt
Burner Nut
11
12
