Masterbuilt 7BCM User Manual

DO NOT RETURN TO RETAILER
For Assembly Assistance, Missing or Damaged Parts
Call: MASTERBUILT Customer Service at 1-800-489-1581
STOP!
REPLACEMENT PARTS LIST
ITEM NO. DESCRIPTION
990060184 Smoker Lid Kit - M7P
990060185 Smoker Lid Kit - CM7P
990060186 Smoker Lid Kit - SMM7P, CSMM7P
990060187 Smoker Body Kit - M7P
990060188 Smoker Body Kit - CM7P
990060189 Smoker Body Kit - SMM7P
990060190 Smoker Body Kit - CSMM7P
990060191 Smoker Base Pan Kit - M7P
990060192 Smoker Base Pan Kit - CM7P
990060193 Smoker Base Pan Kit - SMM7P, CSMM7P
990060194 Smoker Handle Kit - M7P, CM7P
990060195 Smoker Handle Kit - SMM7P, CSMM7P
990060196 Smoker Leg Kit - M7P, SMM7P
990060197 Smoker Leg Kit - CM7P
990060198 Smoker Leg Kit - CSMM7P
990060199 Temperature Gauge Kit - All Models
990060200 Cooker Head Kit - M7P, SMM7P
990060201 Cooker Head Kit - CM7P
990060202 Cooker Head Kit - CSMM7P
990060203 Cooker Leg Kit - M7P, SMM7P
990060204 Cooker Leg Kit - CM7P
990060205 Cooker Leg Kit - CSMM7P
990060206 Burner Mount Kit - M7P, SMM7P
990060207 Burner Mount Kit - CM7P
ITEM NO. DESCRIPTION
990060208 Burner Mount Kit - CSMM7P
911060031 Cooking Grate - All Models
911060064 Water Bowl - All Models
911060060 Flame Disk Bowl - All Models
911060034 Charcoal Access Door - M7P, CM7P
911060061 Charcoal Access Door - SMM7P, CSMM7P
911060035 Cast Iron Burner - All Models
911060036 Regulator/Hose Assembly - All Models
990060209 Wood Side Shelf Kit - SMM7P
990060210 Side Shelf Leg Kit - SMM7P
911060065 10QT (0.96L) Pot - M7P, CM7P, SMM7P
911060062 10QT (0.96L) Pot - CSMM7 Pot
990060212 Pot Basket Kit - M7P, CM7P, SMM7P
990060213 Pot Basket Kit - CSMM7P
990060211 Pot Basket Handle Kit - M7P, CM7P, SMM7P
990060214 Pot Basket Handle Kit - CSMM7P
988050002 Instruction Manual - All Models
990060215 Smoker Hardware Kit - M7P, CM7P
990060216 Smoker Hardware Kit - SMM7P, CSMM7P
990060217 Cooker Hardware Kit - M7P, CM7P, SMM7P
990060218 Cooker Hardware Kit - CSMM7P
990060219 Side Shelf Hardware Kit - SMM7P
911060033 Deep Fry Thermometer
990060220 Grill Bracket Kit - All models

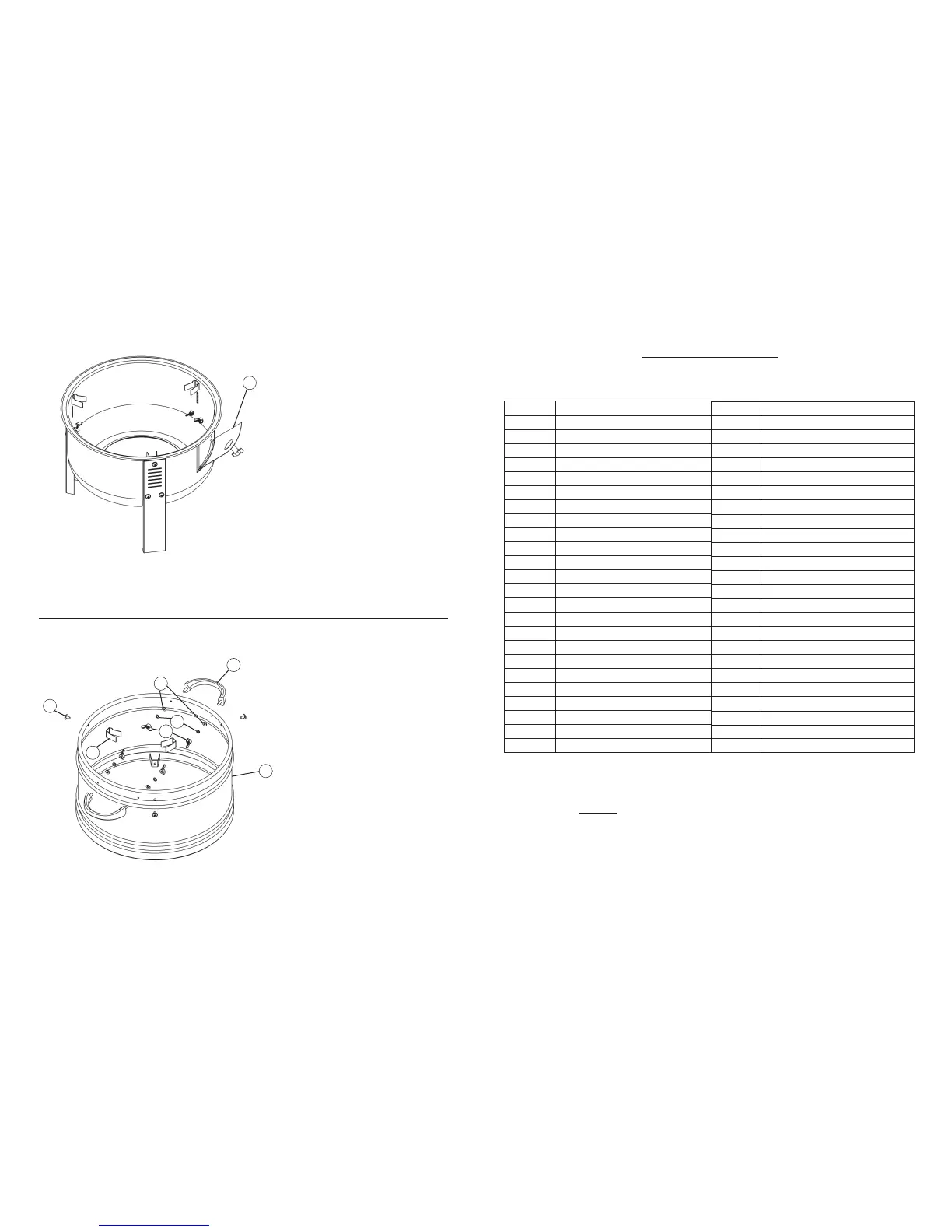

STEP 5.
Place bottom flange of charcoal
access door (12) inside door opening
in base pan. Close access door and
turn knob to secure. To open door
turn knob until door releases.
STEP 6a.
Use handle’s (7) pre-threaded bolt,
flat washer (F), lock washer (G) and
wing nut (E) to mount handle to
smoker body (2) as shown. Repeat
on other side.
STEP 6b.
Align grill brackets (D) with smoker
body holes and secure with phillips
head flange screw (A).
12
A
G
F
7
2
D
E
10
13
