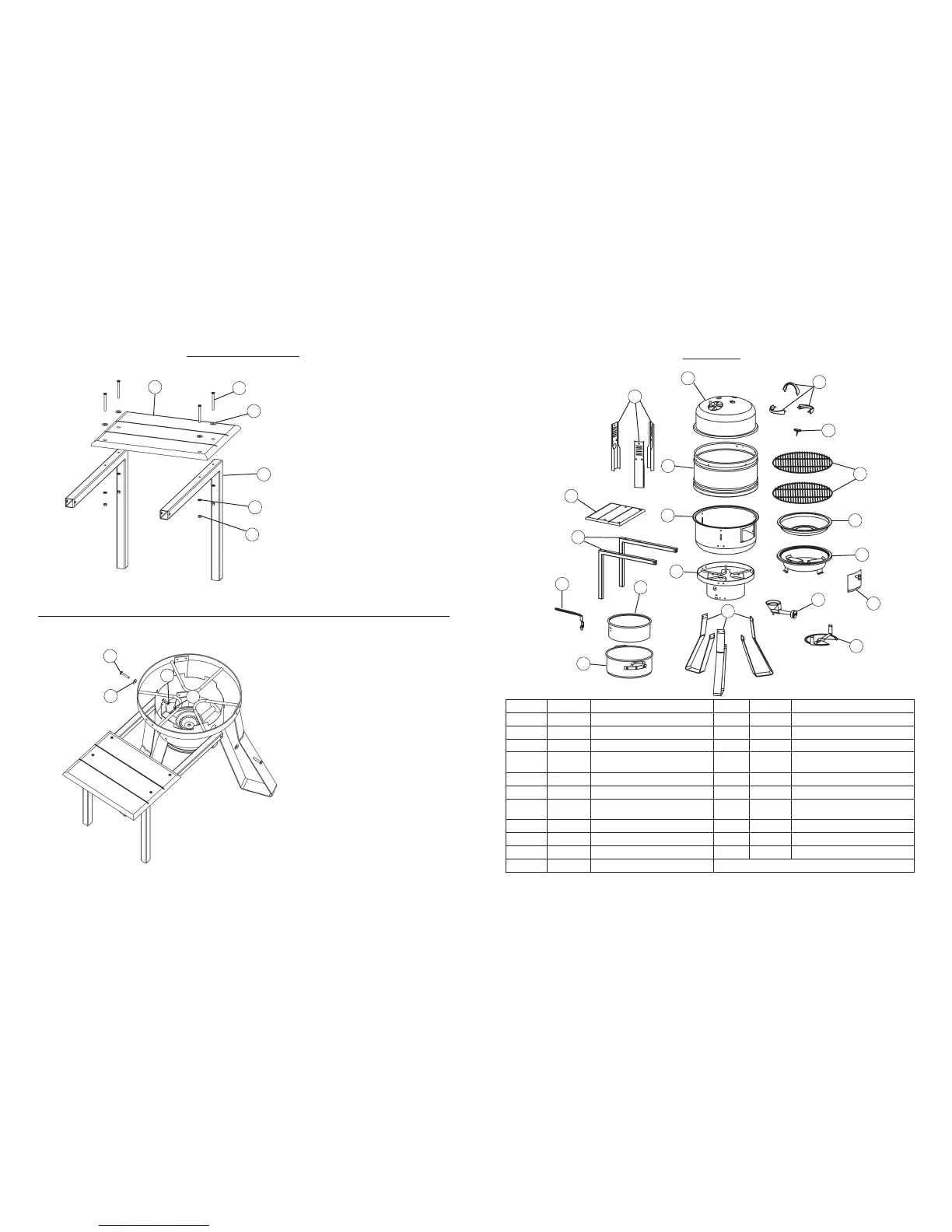

PARTS LIST
SIDE SHELF ASSEMBLY
6
1
7
8
9
10
11
12
14
13
2
3
18
19
17
15
16
5
4
ITEM NO. QUANTITY DESCRIPTION
1 1 Smoker Lid
2 1 Smoker Body
3 1 Smoker Base Pan
4 1 Cooker Head
5 3 Cooker Stand Legs
6 3 Smoker Legs
7 3 Smoker Handles
8 1 Temperature Gauge
9 2 Cooking Grates
10 1 Water Bowl
11 1 Flame Disk Bowl
ITEM NO. QUANTITY DESCRIPTION
12 1 Charcoal/Water Access Door
13 1 Cast Iron Burner
14 1 Burner Mount
15 1 10QT(0.96L) Pot (Not all models sold
with cookware-check unit packaging)
16 1 Pot Basket
17 1 Basket Handle
18 1 Wood Side Shelf (Not all models sold
with side shelf-check unit packaging)
19 2 Side Shelf Legs
20 1 Regulator/Hose Assembly(not shown)
21 1 Deep Fry Thermomter (not shown)
STEP 1.
Place wood shelf (18) on top of side
shelf legs (19) as shown.
Attach using phillips head screws (J),
flat washers (P), lock washers (Q) and
hex nuts (M).
SStteepp 22
Align side shelf legs to cooker head
and attach as shown using
phillips head screws (K), flat washers
(N), lock washers (O) and hex nuts (L).
P
19
K
N
O
L
J
18
M
Q
To Next Page
