WARNING:Always work to the right side of the blade during this type of cut. The mitre gauge
must be in the right side groove, because the bevel angle may cause the blade guard to
interfere with the cut if it is used in the left side groove.
WARNING:Always work to the right side of the blade during this type of cut. The mitre gauge
must be in the right side groove, because the bevel angle may cause the blade guard to
interfere with the cut if it is used in the left side groove.
This cutting operating is the same as crosscutting,
except that the blade is at a bevel angle other
than 0°. This operation must be performed with
mitre gauge in the right side groove.
1. Adjust the blade (1) to the desired angle,
and then tighten the blade bevel lock knob.
2. Tighten the mitre lock handle (3) at 90°.
3. Hold the workpiece (2) firmly against the
face of the mitre gauge throughout the
cutting operation.
This sawing operation combines a mitre angle
with a bevel angle. This operation must be
performed with the mitre gauge in the right
side groove.
1. Set the mitre gauge (3) to the desired angle.
2. Place the mitre gauge in the right side
groove of the table.
3. Set the blade (1) bevel to the desired bevel
angle, and tighten the blade bevel lock knob.
4. Hold the workpiece (2) firmly against the
face of the mitre gauge throughout the
cutting operation.

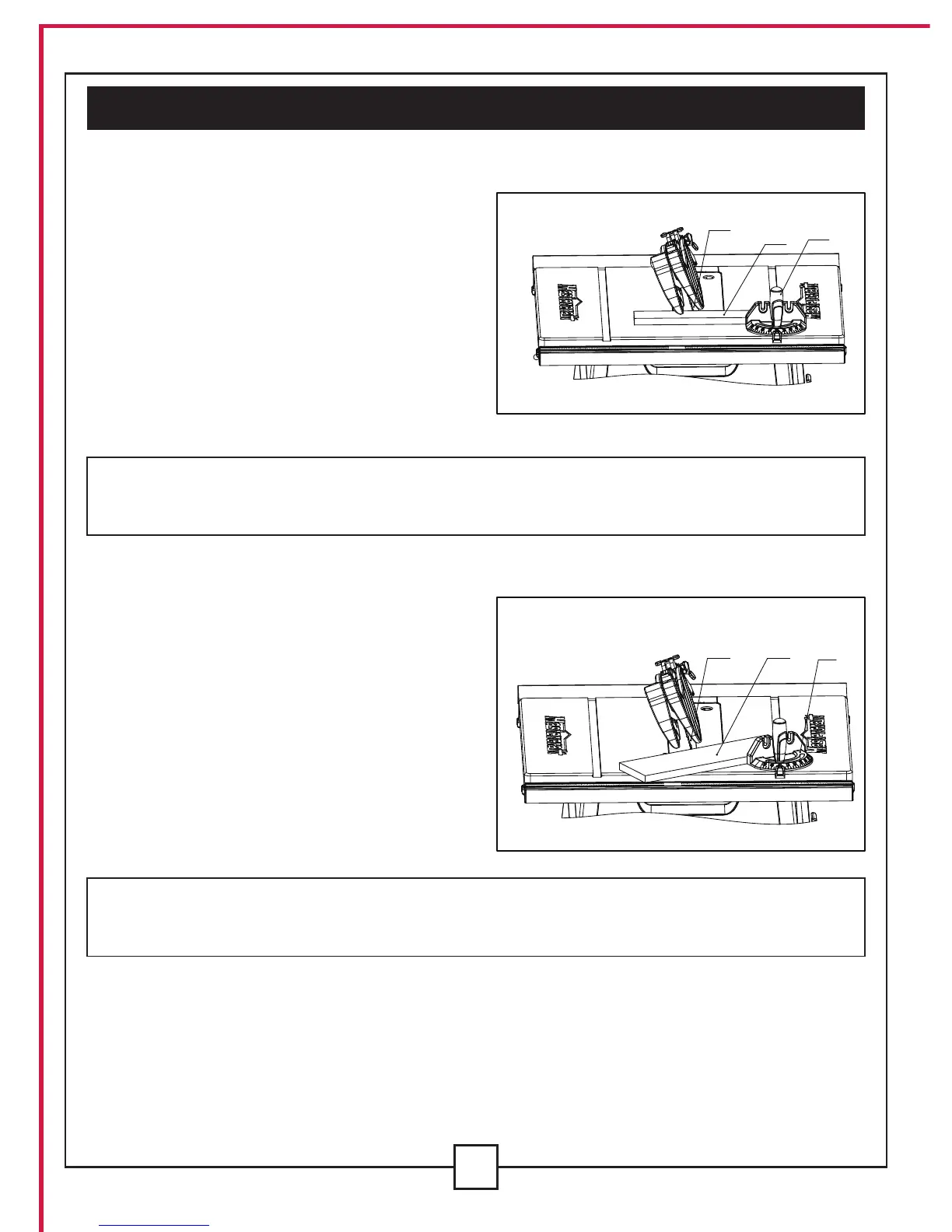

BEVEL CROSSCUTTING (FIG. 27)0°~45° BLADE BEVEL & 90° MITRE ANGLE
0°~45° BLADE BEVEL & 0°~45° MITRE ANGLE
Fig. 27
Fig. 28
26
VI. Operating instructions(continued)
1
2
3
1
2
3
