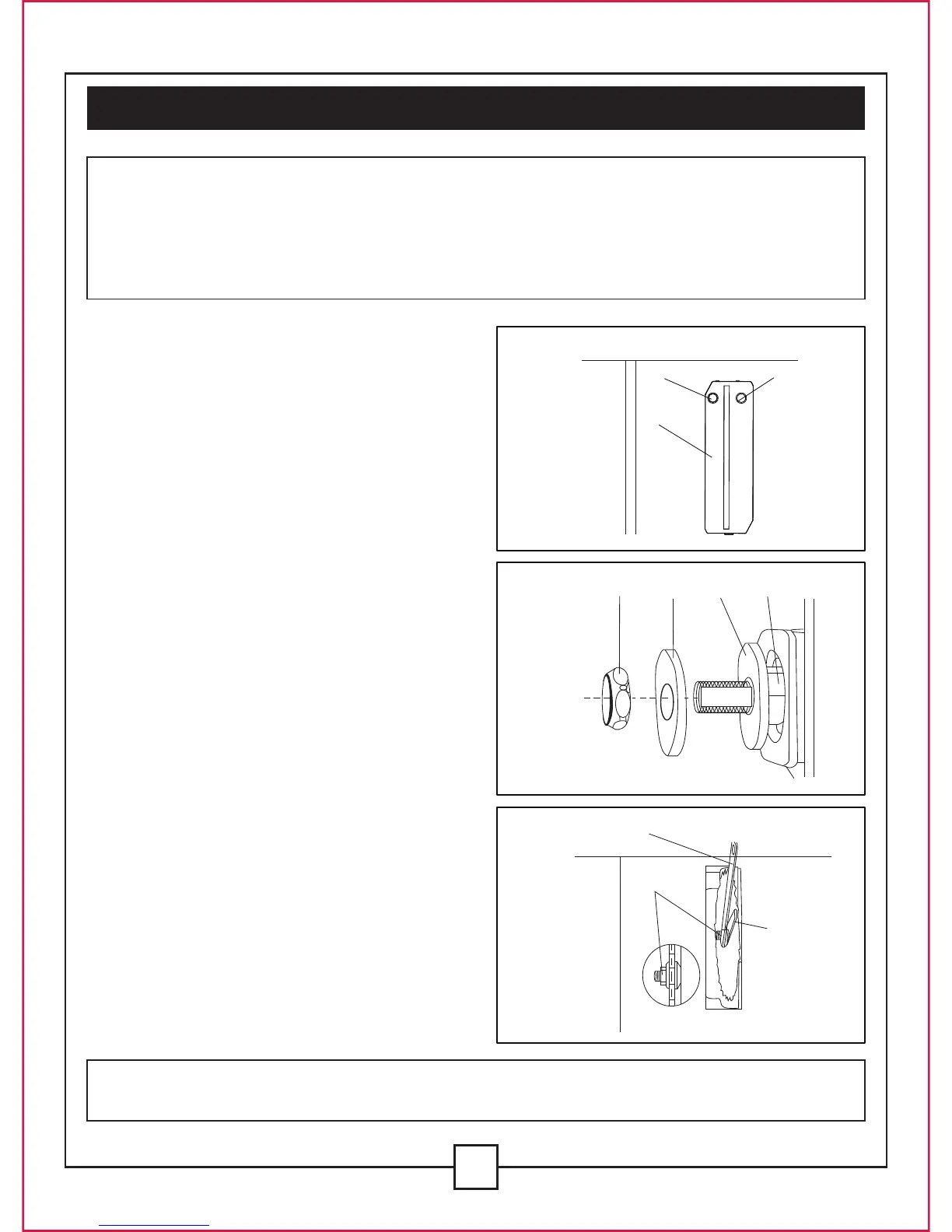

INSTALL THE BLADE TO THE
ARBOR (FIG. 7, 8 & 9)
WARNING: TO AVOID INJURY FROM AN ACCIDENTAL STARTUP, VERIFY THAT THE
SWITCH IS IN THE “OFF” POSITION AND THE PLUG IS NOT CONNECTED TO THE
OUTLET. IN ORDER TO AVOID SERIOUS INJURY, THE TABLE INSERT MUST BE LEVEL
WITH THE TABLE. IF THE TABLE INSERT IS NOT LEVEL WITH THE TABLE, ADJUST THE
SCREW (3) UNTIL IT IS LEVEL WITH THE TABLE. TURN THE SCREW COUNTER-CLOCK
WISE TO RAISE THE INSERT, OR TURN IT CLOCKWISE TO LOWER THE INSERT.
WARNING: MAKE SURE THE SAW BLADE, ARBOR FLANGE, AND NUT ARE PROPERLY
SEATED, AND VERIFY THAT THE ARBOR NUT IS TIGHT.
1. Remove the table insert (1) by inserting the
finger into the hole (2 & 3) (see Fig. 7).
2. Raise the saw blade arbor (4) to its
maximum height by turning the blade raising
hand wheel counter-clockwise (see Fig. 8).
Remove the arbor nut (5) and the outer
flange (6) from the saw arbor.
3. Place the saw blade on the arbor, making
sure the teeth of the blade point DOWN at
the front of the table.
4. Place the flange (6) and the arbor nut (5)
on the arbor, and tighten the nut as far as
possible by hand, making sure the saw
blade is firmly seated against the inner
flange (7) (see Fig. 8).
NOTE: Make sure the large flat surfaces
of the flange and the nut face INWARD,
toward the saw blade.
5. Place the jaws of the open-ended wrench
(8) on the flats of the saw arbor in order to
prevent the arbor from turning while
tightening. Tighten the arbor nut by turning
it clockwise using the box end of the wrench
(9) (See Fig. 9).
Fig. 7
Fig. 8
Fig. 9
V. Assembly and adjustments(continued)
14
2
1
3
4
7
6
5
8
5
9
