V. Assembly and adjustments
UNPACKING
1. Carefully remove the table saw from the carton.
2. Separate the parts.
3. Lay out all of the parts, and check them against the parts listed below. Examine all of the parts
carefully.
WARNING:
• IF ANY PART IS MISSING OR DAMAGED, DO NOT PLUG IN THE TABLE SAW UNTIL
YOU HAVE REPLACED THE MISSING OR DAMAGED PARTS. CALL THE TOLL FREE
HELPLINE AT 1-800-689-9928 FOR MORE INFORMATION.
• TO AVOID INJURY, THE STYROFOAM BLOCK SHOULD BE REMOVED BETWEEN
THE MOTOR AND THE TABLE.

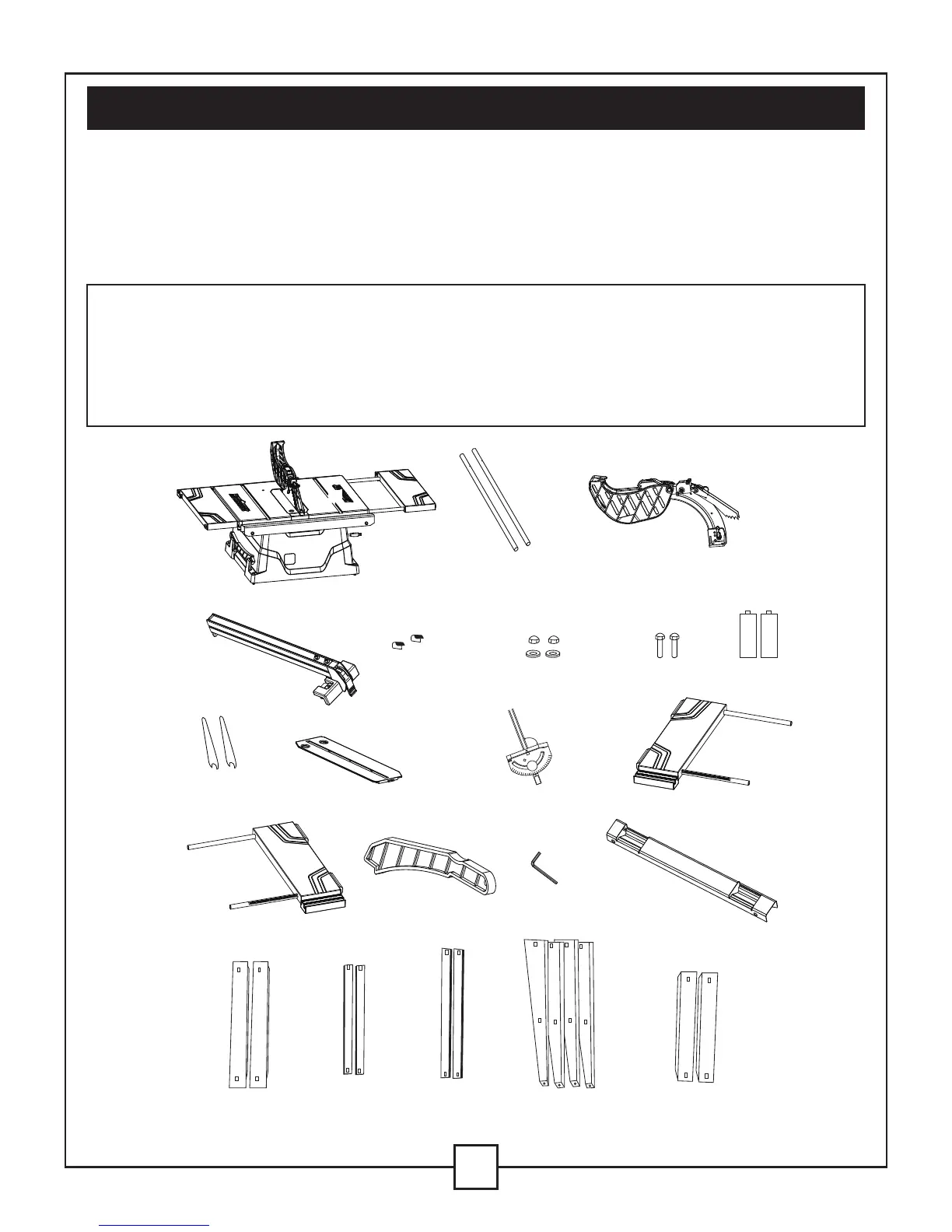

Table saw assembly
Rear table extension
tubes
Rip fence Locating seats
Blade
wrenches
Dado table insert
Right table
extension fence
Push sticker Hex key Rear table
extension
Long top leg
brackets
Short bottom
leg brackets
Long bottom
leg brackets
Stand legs
Short top leg
brackets
Mitre gauge Left table
extension fence
Flat washers
and dome nuts
Hex bolts Batteries
Blade guard and
splitter
30
45
60
75
75
90
60
45
30
