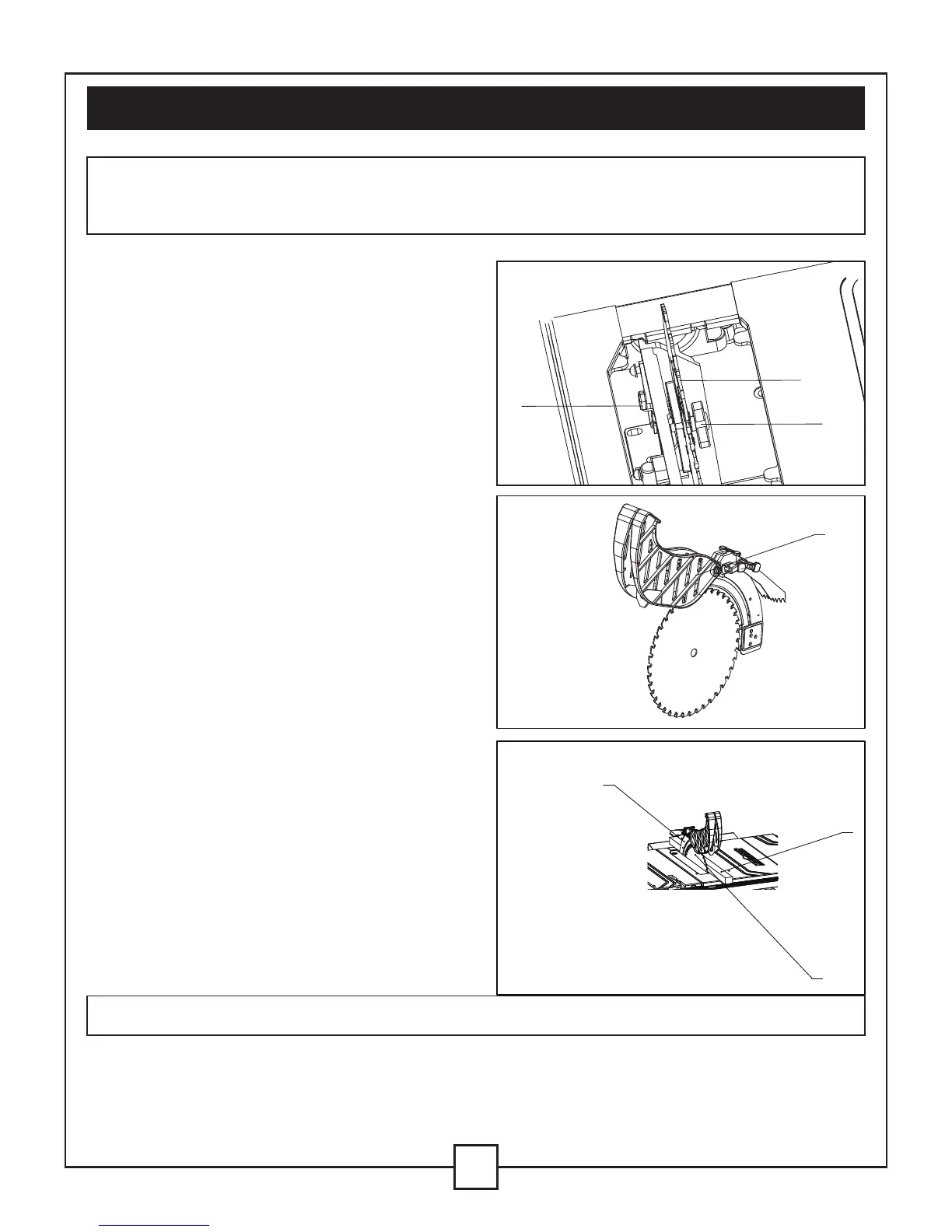

ASSEMBLE THE BLADE GUARD
AND THE SPLITTER (FIG. 10, 11, 12)
WARNING: TO AVOID INJURY FROM AN ACCIDENTAL STARTUP, VERIFY THAT THE
SWITCH IS IN THE “OFF” POSITION AND THE PLUG IS NOT CONNECTED TO THE
OUTLET.
WARNING: Improper splitter alignment can cause kickback and serious injury.
MAKE SURE THE SAW IS DISCONNECTED
FROM THE POWER SOURCE WHEN
INSTALLING THE BLADE GUARD AND
SPLITTER ASSEMBLIES.
Fig. 10
Fig. 11
V. Assembly and adjustments(continued)
15
1
Fig. 12
2
4
3
1. Use the handwheel to set the blade to
the maximum height and to set the tilt
to 0° on the bevel scale. Lock the
blade bevel locking knob.
3. Insert the blade guard assembly (1)
into the splitter bracket, as shown.
(Fig. 11)
4. Using a straight edge (2), verify
whether the blade guard splitter (3)
is aligned with the saw blade (4),
with the straight edge lying between
the teeth of the blade. (Fig. 12)
NOTE: The blade guard and splitter
must always be correctly aligned so
that the cut workpiece will pass on
either side of the splitter without
binding or twisting to the side.
2. After loosing the knob (6),press the
device(5),the splitter (7) should be at
the highest position(Fig.10)
5
6
7
