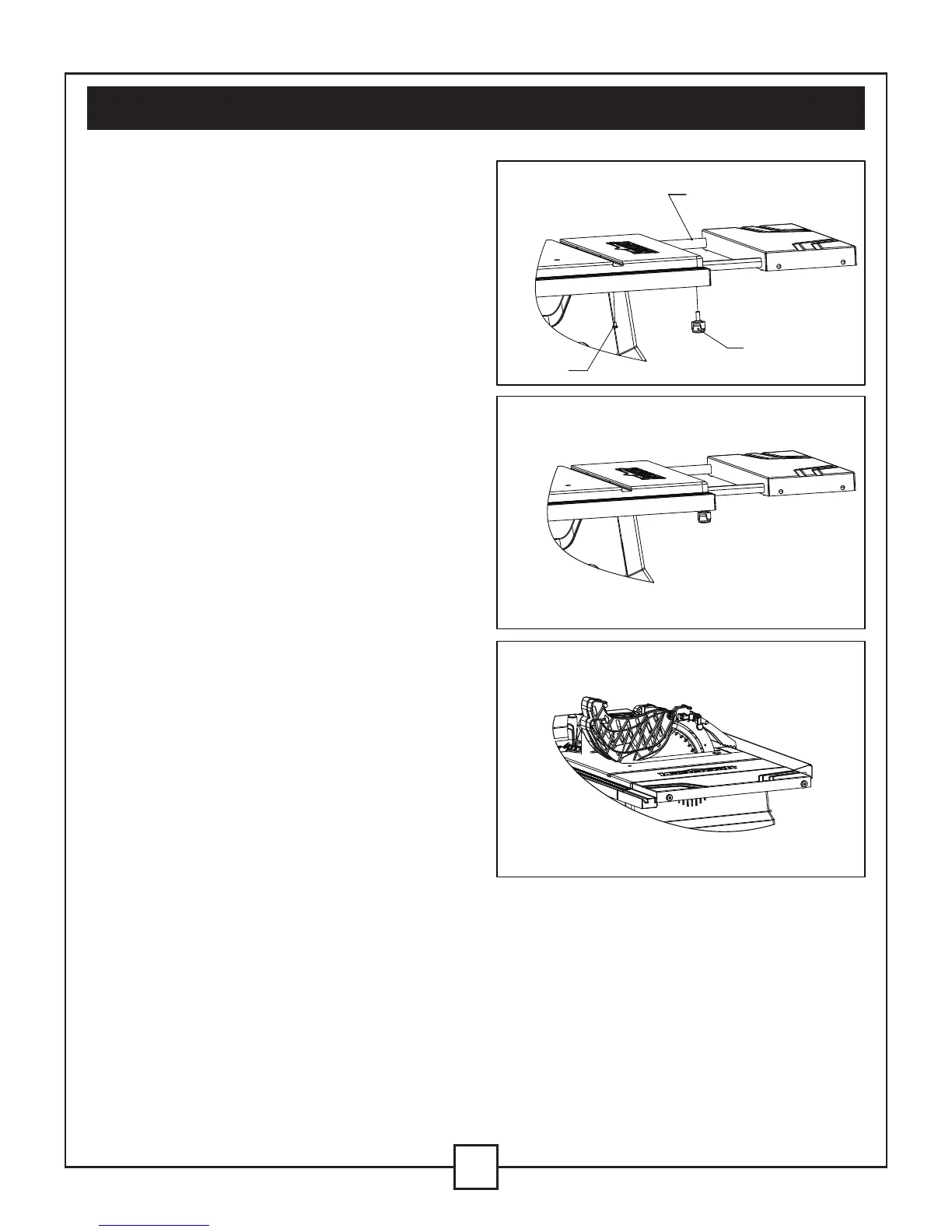

INSTALL THE TABLE EXTENSIONS
(FIG. 13)
INSTALL THE TABLE EXTENSION
FENCE (FIG. 15)
1. Loosen the screw (1) before installing table
side extension.
NOTE:
Make sure the front mounting tube has the
measuring scale visible from the front of
the saw.
2. Loosen the two clamp bolts (2) on the two
extension tube brackets.
3. Insert the table extension mounting tubes
(3) into the two matching holes.
4. Slide the table extension toward the table
until it rests against the saw table.
5. Tighten the two clamp bolts.
6. Thread the stop screw (1) into the hole of
the extension tube (3).
7. Install the left hand table side extension
the same manner.
NOTE:
A. For right ripping short workpieces, the right
extension fence must be extension shortest
position. For left ripping short workpieces,
the left extension fence must be installed in
the shortest position (Fig.15).
B. For right ripping long workpieces, the right
extension fence can be installed in the
extension position (Fig. 14). For left ripping
long workpieces, the left extension fence
must be installed in the extension position.
Fig. 13
Fig. 14
Fig. 15
V. Assembly and adjustments(continued)
16
3
2
1
