ELECTRICAL SAFETY
Grounding instructions: In
the event of a malfunction
or breakdown, grounding
provides the path of least
resistance for electrical
current in order to reduce
the risk of electric shock.
This tool is equipped with
an electric cord that has
an equipment-grounding
conductor and a grounding
plug. The plug must be plugged into a matching outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit into the outlet, have a proper
outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. The insulated conductor that has a green outer surface,
with or without yellow stripes, is the equipment-grounding conductor.
If repair or replacement of the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a live terminal. Check with
a qualified electrician or service technician if the grounding instructions are
not completely understood, or if in doubt as to whether the tool is properly
grounded.
Use only 3-wired extension cords that have 3-pronged grounding plugs and
3-holed receptacles that accept the tool’s plug.
Repair or replace a damaged or worn cord immediately.
Permanently connected tools: This tool should be connected to a grounded
metal permanent wiring system or to a system that has an equipment-
grounding conductor.
GUIDELINES FOR EXTENSION CORDS
Use a proper extension cord. Make sure extension cords are in good
condition. When using an extension cord, be sure to use a cord that is heavy
enough to carry the drawn current needed by the saw. An undersized cord
will cause a drop in line voltage, resulting in loss of power and overheating.
The table below shows the correct size to use, depending on the cord length
and nameplate amperage rating. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.

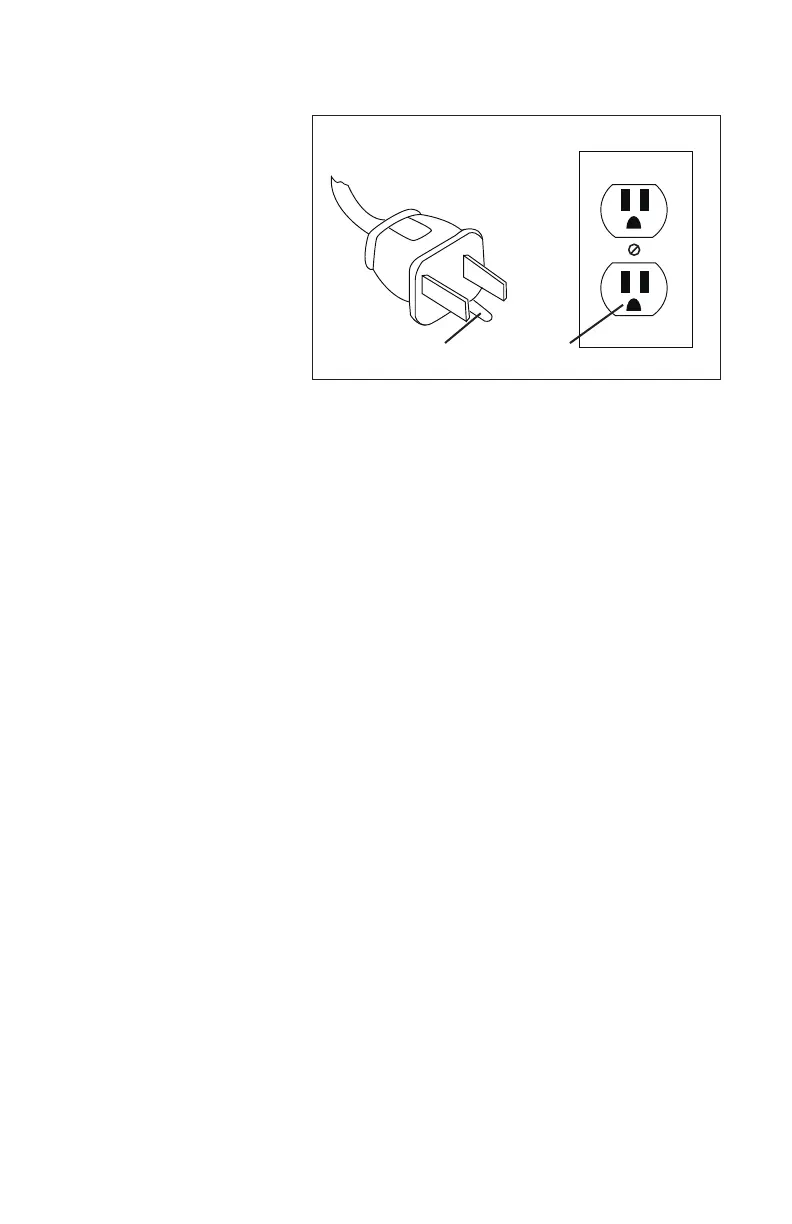

FIG. A
GROUNDING PIN
120V GROUNDED OUTLET
