§ Common hardware item, purchase locally.
331122224433 6622--33552255--66

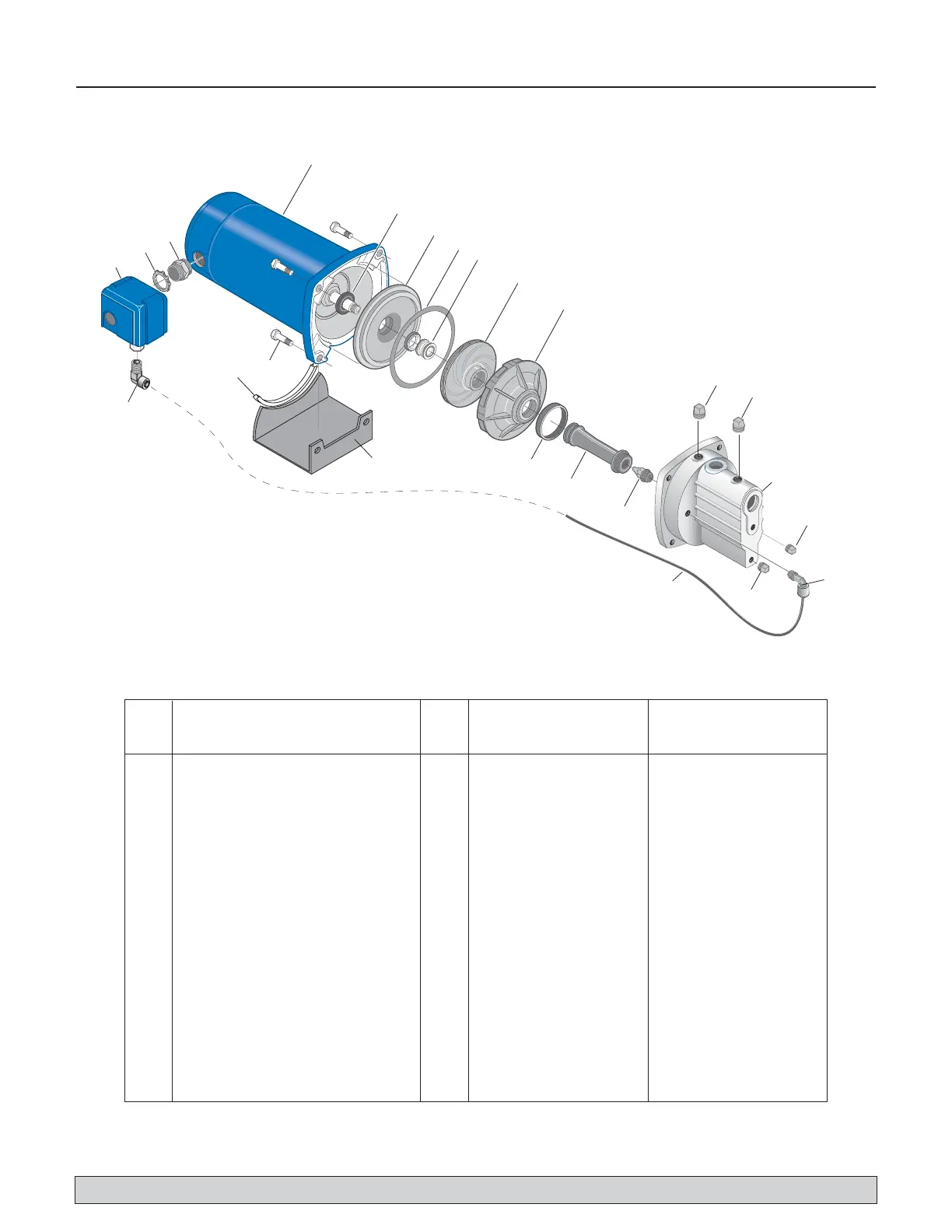

KKeeyy PPaarrtt 331122222222 6622--44000033--22 331122222233 6622--33552266--44
NNoo.. DDeessccrriippttiioonn QQttyy.. 11//22 HHPP 33//44 HHPP
1 Motor 1 J218-577PKG J218-590PKG
2 Water Slinger 1 C69-7 C69-7
3 Seal Plate 1 056592 056592
4 Gasket 1 C20-77 C20-77
5 Shaft Seal 1 U9-6 U9-6
6 Impeller 1 056711 056712
7 Diffuser 1 056796 056796
8 Diffuser Ring 1 L21-1 L21-1
9A Venturi 1 27397 27396
9B Nozzle 4 27921 27925
10 Pipe Plug, 1/4
" 2§ §
11 Tubing Connector 1 U111-212T U111-212T
12 Pump Casing 1 057764BLK 057764BLK
13 Pressure Tube 1 U37-677P U37-677P
14 Pressure Switch 1 U217-1218 U217-1218
15 1/2
" Locknut 1 U36-112ZP U36-112ZP
16 Connector 1 L43-5C L43-5C
17 3/8-16x1-1/4
" Capscrew 4 § §
18 Base 1 J4-9 J4-9
19 Rubber Pad 1 C35-5 C35-5
Repair Parts 11
For parts or assistance, call Diamond Customer Service at 1-800-265-7241
1
2
3
4
5
6
7
8
10
9A
11
10
10
10
9B
17
18
19
13
12
11
14
15
16
