13
securely tighten the screw by turning it clockwise. Remove the wrench,
and store it in a safe place.
7. Make sure the spindle-lock button is released so that the blade will rotate
freely.
8. Lower the saw head, and check the clearance between the blade and the
mitre table. The blade should rotate freely.

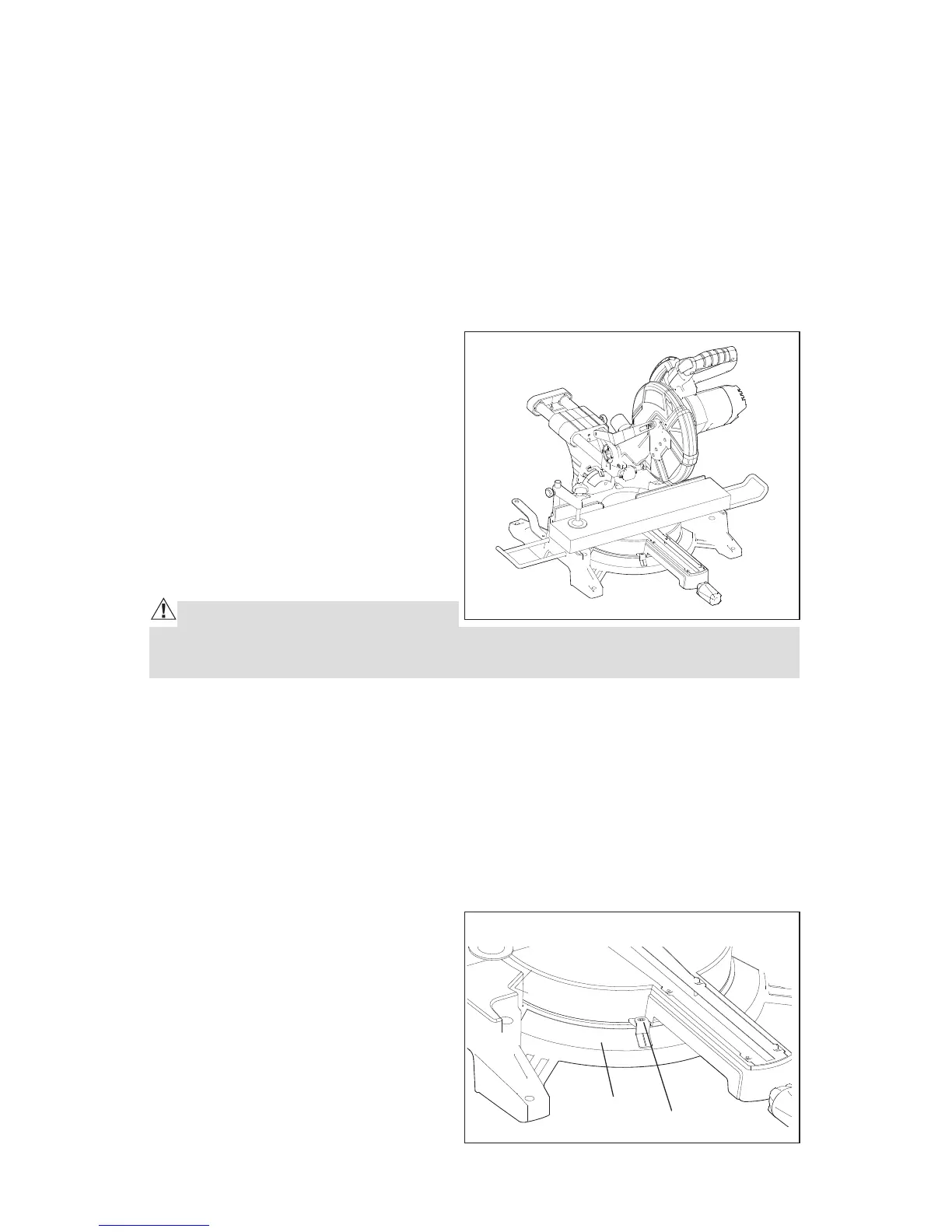

Installing extension wings
The extension wings support long workpiece during cutting. (Fig. 5)
1. Insert both rails of an extension
wing through the holes on the
outside of the Mitre Saw base.
2. Tighten the wing screw that locks
the extension wing in position.
Make sure the extension wings do
not move.
ADJUSTMENTS
WARNING: In order to avoid pos-
sible injury, disconnect the tool’s plug from the power source before performing
any assembly, adjustment, or repair.
IMPORTANT: Do not use thin-kerf blades. Thin-kerf blades can deflect and
contact the guard, which can cause injury to the operator.
Adjusting the mitre
1. Lock the saw head in the down position, and loosen the mitre-lock knob.
2. Hold the cutting handle firmly in order to rotate the mitre table to the
desired angle. The most common angle settings (0°, 15°, 22.5°, 35.3° and
45°) have positive stops.
3. Tighten the mitre-lock knob, and
release the saw head.
Adjusting the mitre-angle indicator
(if necessary)
1. Place the mitre table at the zero
position, making sure the mitre
lock is secured in position.
2. Loosen the mitre-angle indicator
screw, and adjust the indicator to
Fig. 6
Mitre scale
Indicator screw
Fig. 5
