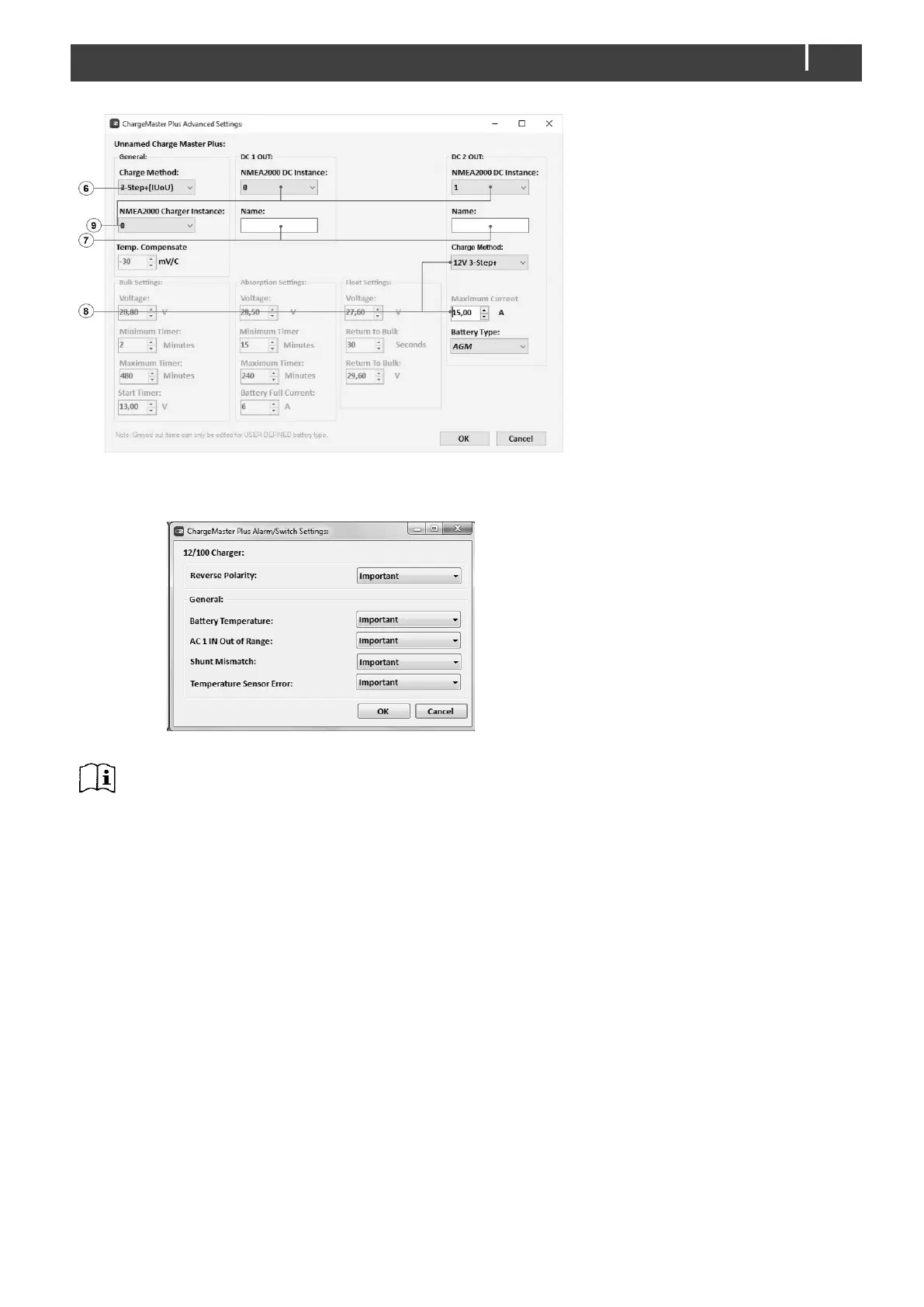

6. Select the required Charge
Method from the drop-down
list.
7. Enter an understandable Name
for DC 1 OUT, DC 2 OUT.
8. From the DC 2 Charge Method
drop-down list, select the
required mode for DC 2 OUT.
See section 5.5. Depending on
the selected mode, additional
settings will be offered, hidden
or grayed out.
9. NMEA2000 Instances are used
to differentiate between multiple
monitoring sources.
10. Press OK to return to the
Module Modification window
and press the Alarm/Switch
Settings button.
11. Select the required Alarm
Severities.
12. Press OK.
Optionally configure digital
switching by adding Circuit
Controls in the Circuits tab (e.g. a
battery low switch can be used to
start a generator). Write the
configuration to the network to use
the new configuration.
For more information, please refer to the CZone
®
Configuration Tool Instruction manual.
