ChargeMaster Plus 24/80-2, 24/110-2 – User and Installation Manual
29

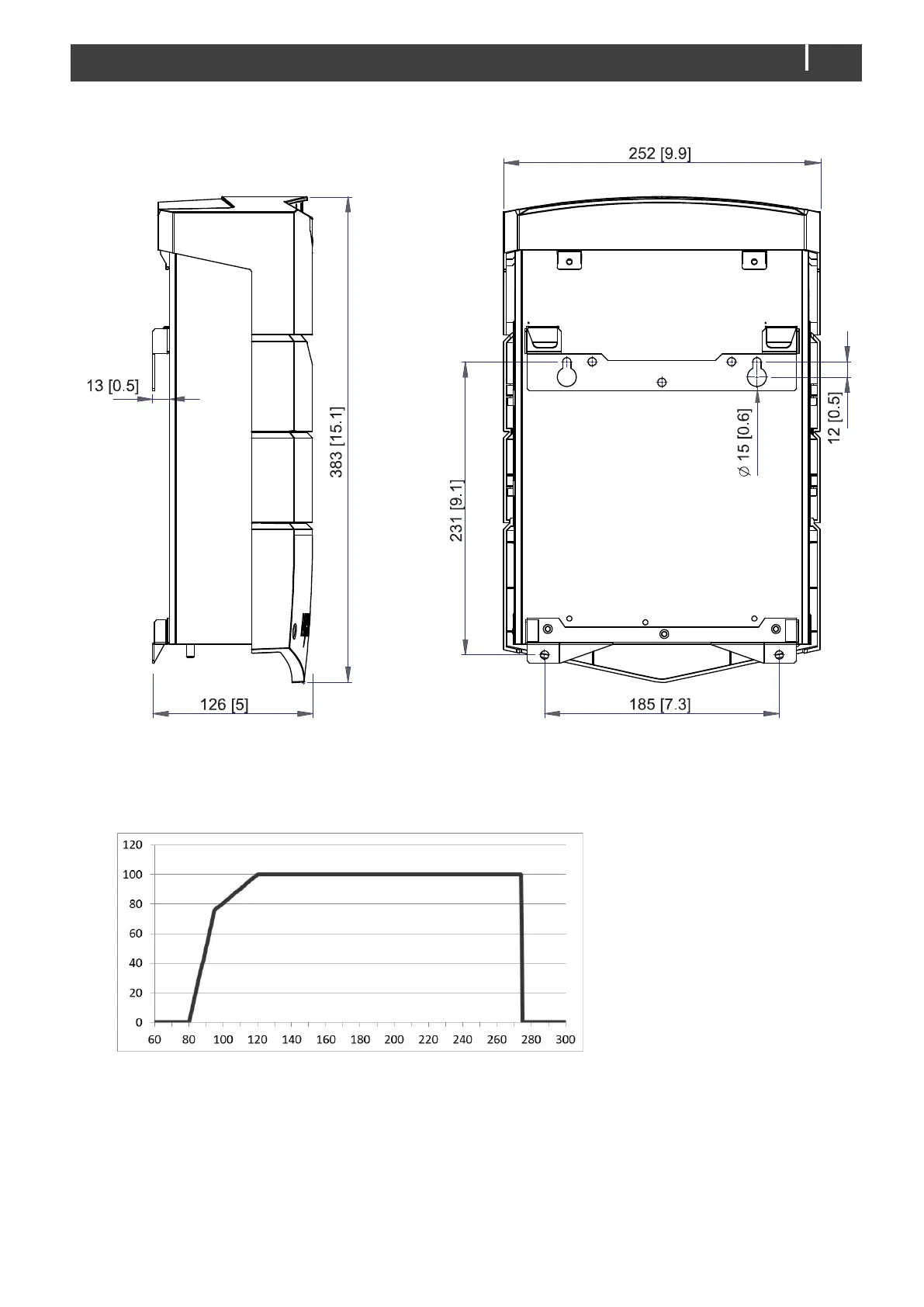

7.2 Dimensions
Dimensions in mm [inches] ChargeMaster Plus models 24/80-2, 24/110-2.
7.3 Characteristics
Output power versus input voltage
Output power (%)
AC voltage (V)
Figure 8: Output power versus input voltage
