• For CZone setup, an RJ45-M12 Drop cable CZone/MB (included) and a tee connector (not included).
• For MasterBus setup, an RJ45 MasterBus cable (not included).
• DC cables to connect the CombiMaster to the batteries and common negative. See section 4.5.1 for specifications.
• DC fuse holder with a DC fuse, to be integrated in the positive DC cable.
• Screws/bolts (Ø 6mm / ¼") with plugs to mount the CombiMaster to a surface. Use mounting materials which are suited to
carry the weight of the CombiMaster.
• AC cable to connect the AC input to an AC power source. See section 4.5.2 for specifications.
• Batteries. See section 4.3 for specifications.
• Appropriate and reliable cable terminals, cable lugs, battery terminals and cord end terminals.
We recommend as a minimum tool kit:
• Socket wrench to fix the main DC cables (13mm / ½”).
• Socket wrench to fix the Safety ground connection (10mm / 3/8”).
• Flat blade screw driver to fix the screw terminals of the AC wiring.
• Tools to fix the screws / bolts (Ø 6mm / ¼") with plugs to mount the CombiMaster to a surface.
• Philips screw driver number 2 to open the connection compartment.

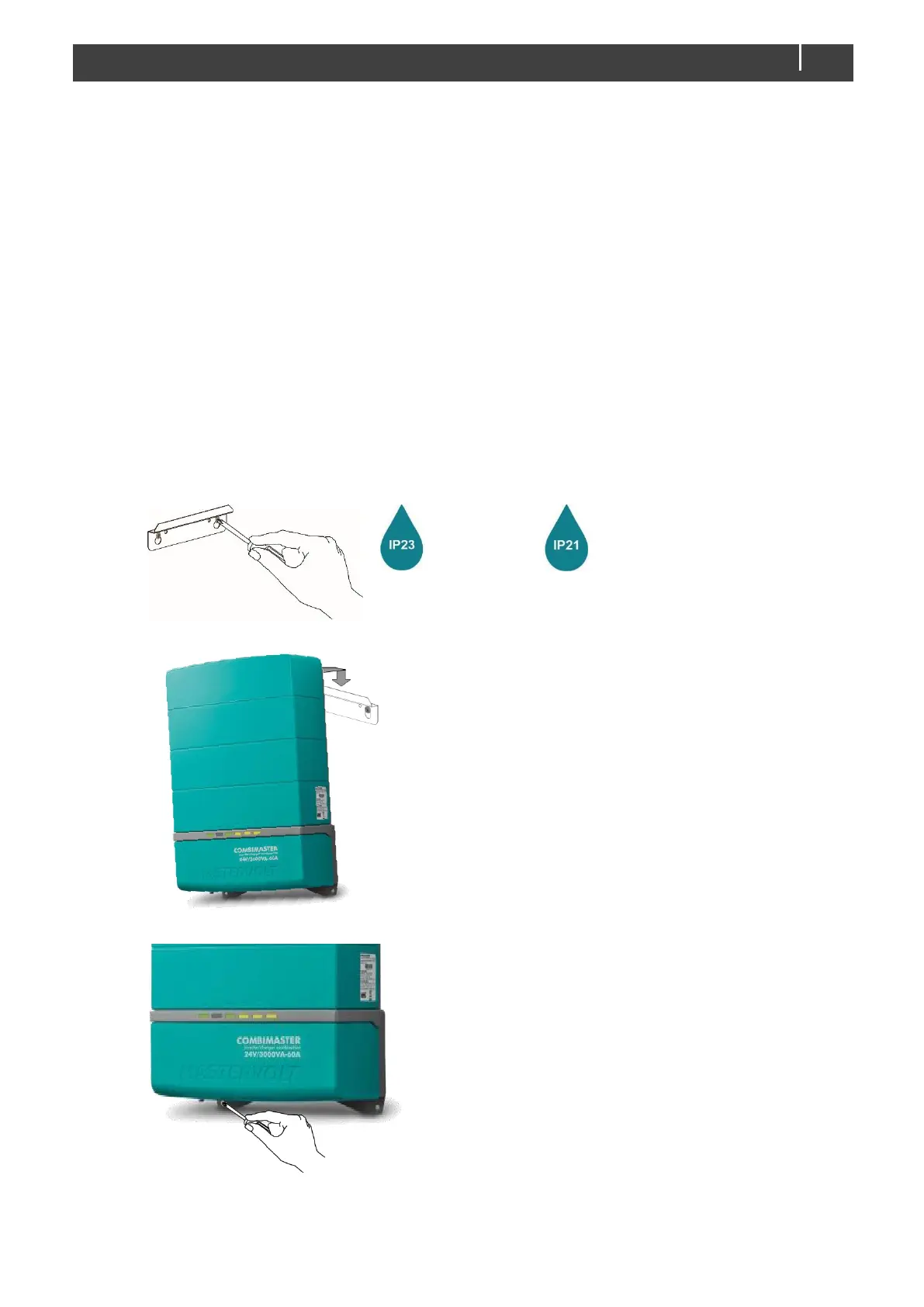

4.7 Installation step-by-step
Step 1. Turn off the electrical power.
Step 2. On a solid surface, mark the holes for the mounting bracket and secure the mounting bracket to the surface.
