CombiMaster 230V Series – User and Installation Manual

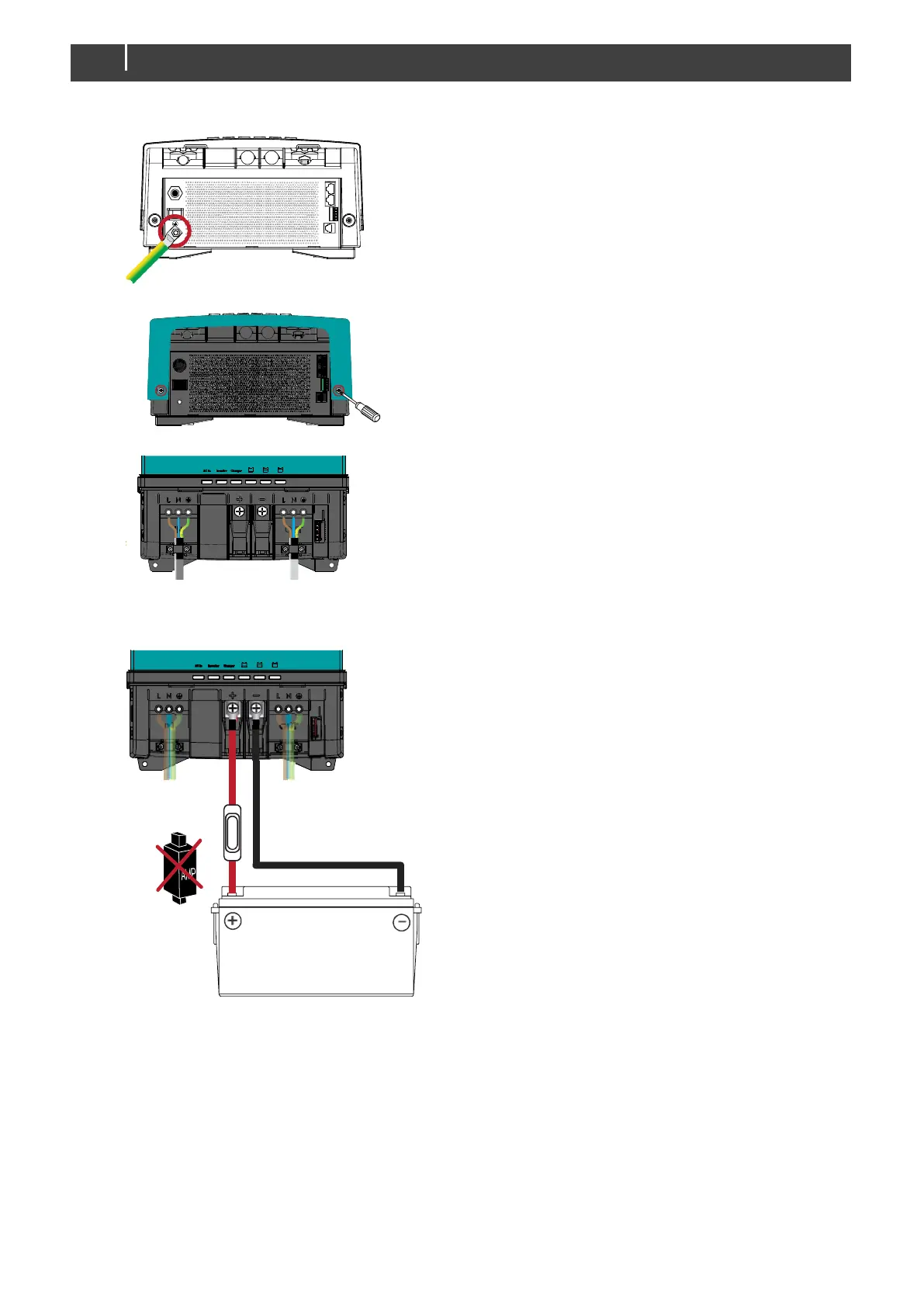

Step 5. Connect the M6 grounding lug to the central grounding point.

Step 6. Open the connection compartment by loosening the two screws at the bottom and then lifting the front cover plate.

Step 7. Connect the AC wiring to the screw terminals. Fasten the cables with a strain relief.

Step 8. Integrate a fuse holder in the positive battery wire but do not place the fuse yet!

Fit crimp-on cable lugs (M8) to the DC cables.

Connect the DC cabling of the battery bank: positive to +, negative to – .

AC IN AC OUT
