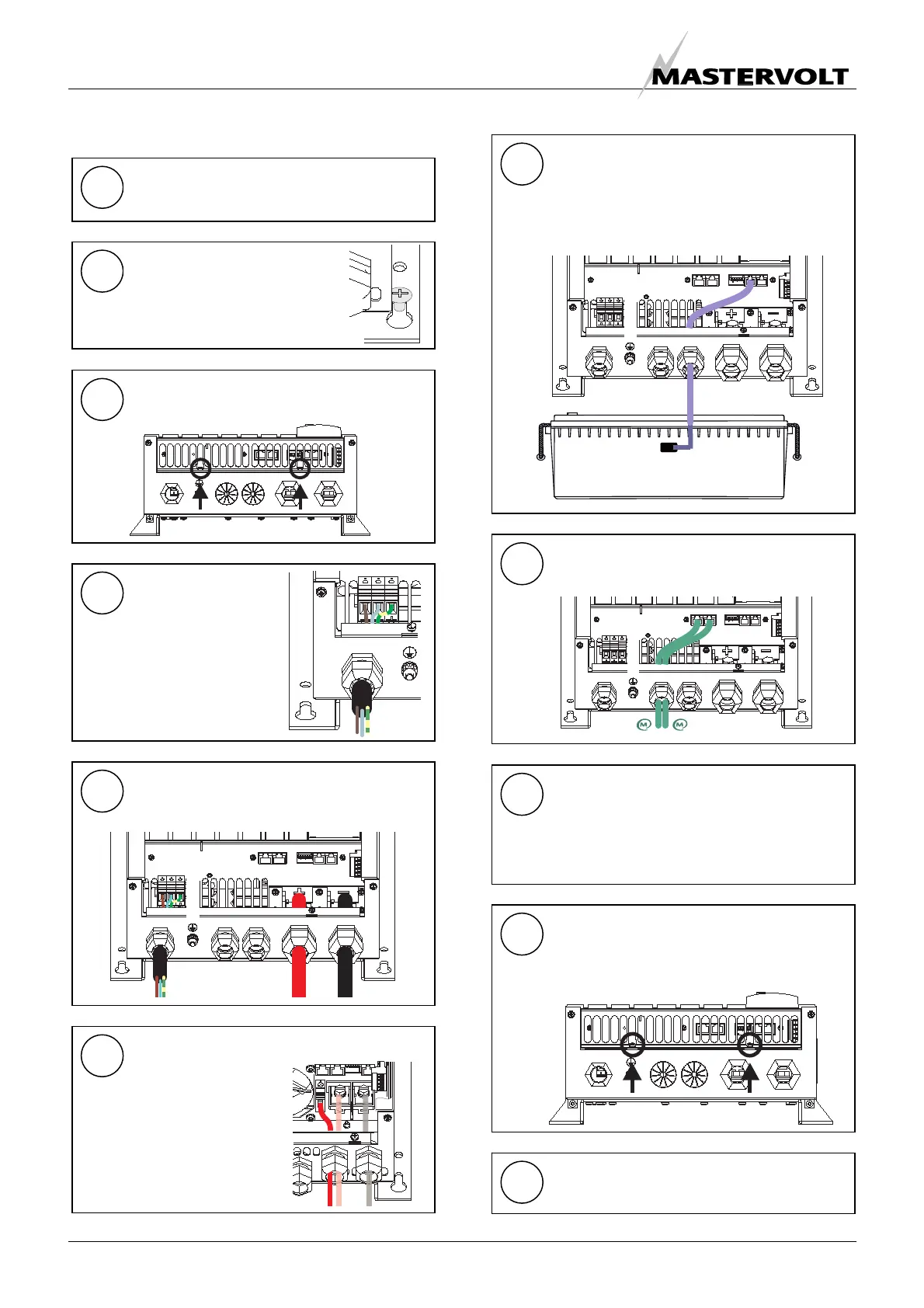

4.15 INSTALLATION STEP-BY-STEP
9
Check all wiring; see also figure 10 for wiring
details. If everything is all right, close the
connection compartment by fixing the two
screws.
10
Continue with section 4.15 for
commissioning of the Mass Charger.
7
Option: Connect the Mass Charger to the
MasterBus network.
5
Connect the DC-cabling of the house bank,
positive to +, negative to – .
+ -
+ -
3
Open the connection compartment by
loosening the two screws.
8
The factory setting of the Mass Charger is
optimal for most installations. Sometimes
however, it is desirable to change these
settings. See ch. 5 DIP switch adjustment
and cha
ter 7 for MasterBus settin
s.
7
Attach the battery temperature sensor to the
casing of battery bank 1.
Plug the temperature sensor cable into the
“temp.sensor” jack.
6
Option for models 12/60, 12/80 and 24/50:
Connect the DC-wiring of
the second battery bank
(max. 3A). This bank has a
common negative with the
main battery.
4
Feed the AC wiring through
cable gland and connect the
wiring to the screw terminals.
Tighten the cable gland firmly.
2
Place the four screws first and
hang the Mass Charger over
them. Then fix the Mass to the
wall by securing the screws.
1
Mark the position of the mounting spots using
the drilling dimensions .
