TECHNICAL DATA
26 July 2010 / Mass Charger 12/60-2; 12/80-2; 24/50-2; 24/75; 24/100; 3-24/100; 48/25; 48/50 / EN
9.3 CHARACTERISTICS (230 V AC)
FLOAT EQUALIZE FLOAT
Float voltage + 2.25V
= 15.50VDC
Float voltage
= 13.25VDC
10% of Imax
Max equalize time = 6hr
Start equalize cycle by jumper change (disabled when Gel)
= voltage
= current

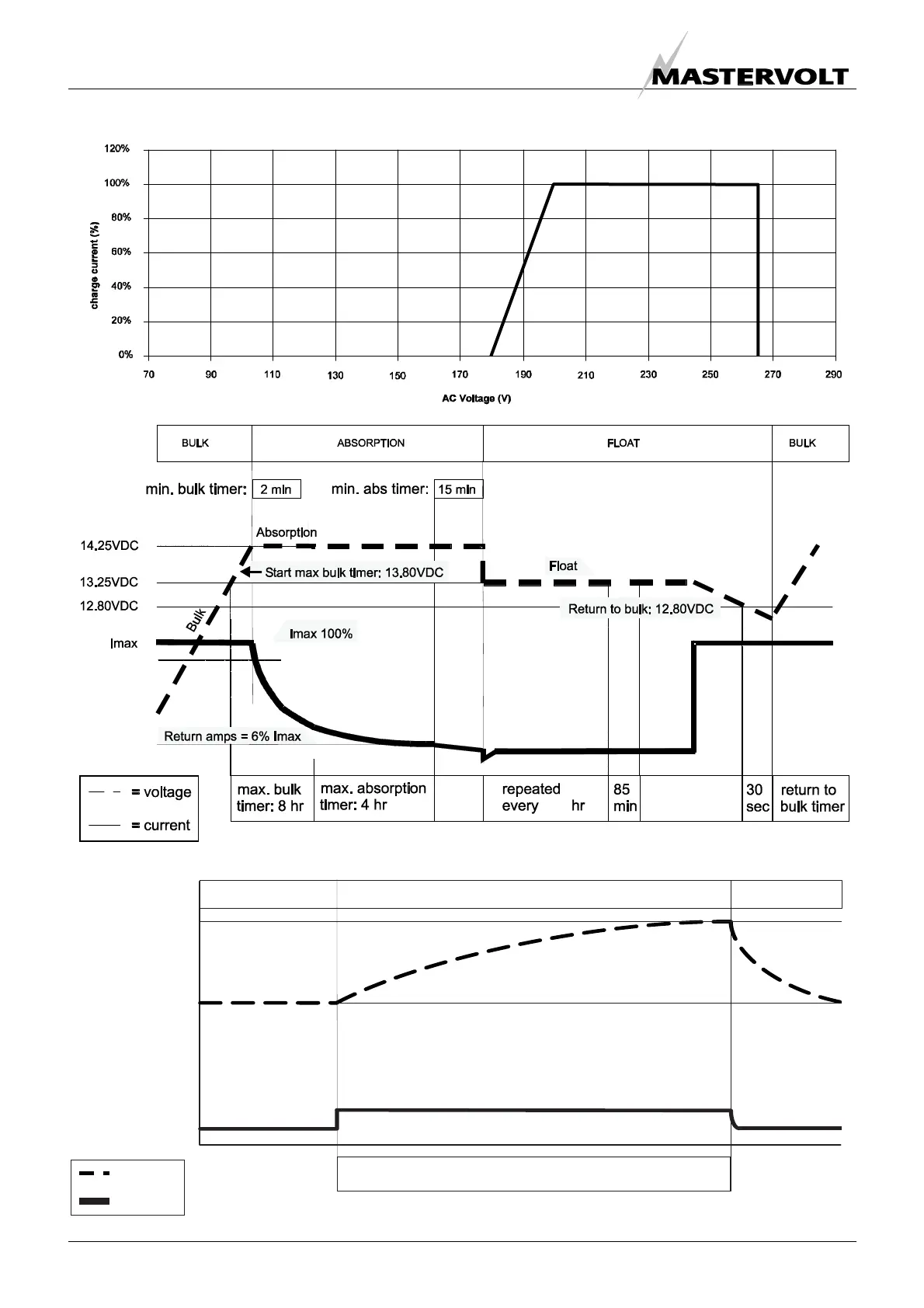

Figure 16: Charge characteristic of the equalize charge cycle (at 25°C / 77°F)
288
Figure 15: Charge characteristic of the three-step Plus charging method (at 25°C / 77°F)
Figure 14: Charge current versus input voltage
