TECHNICAL DATA / ORDERING INFORMATION
EN / Mass Charger 12/60-2; 12/80-2; 24/50-2; 24/75; 24/100; 3-24/100; 48/25; 48/50 / July 2010 27

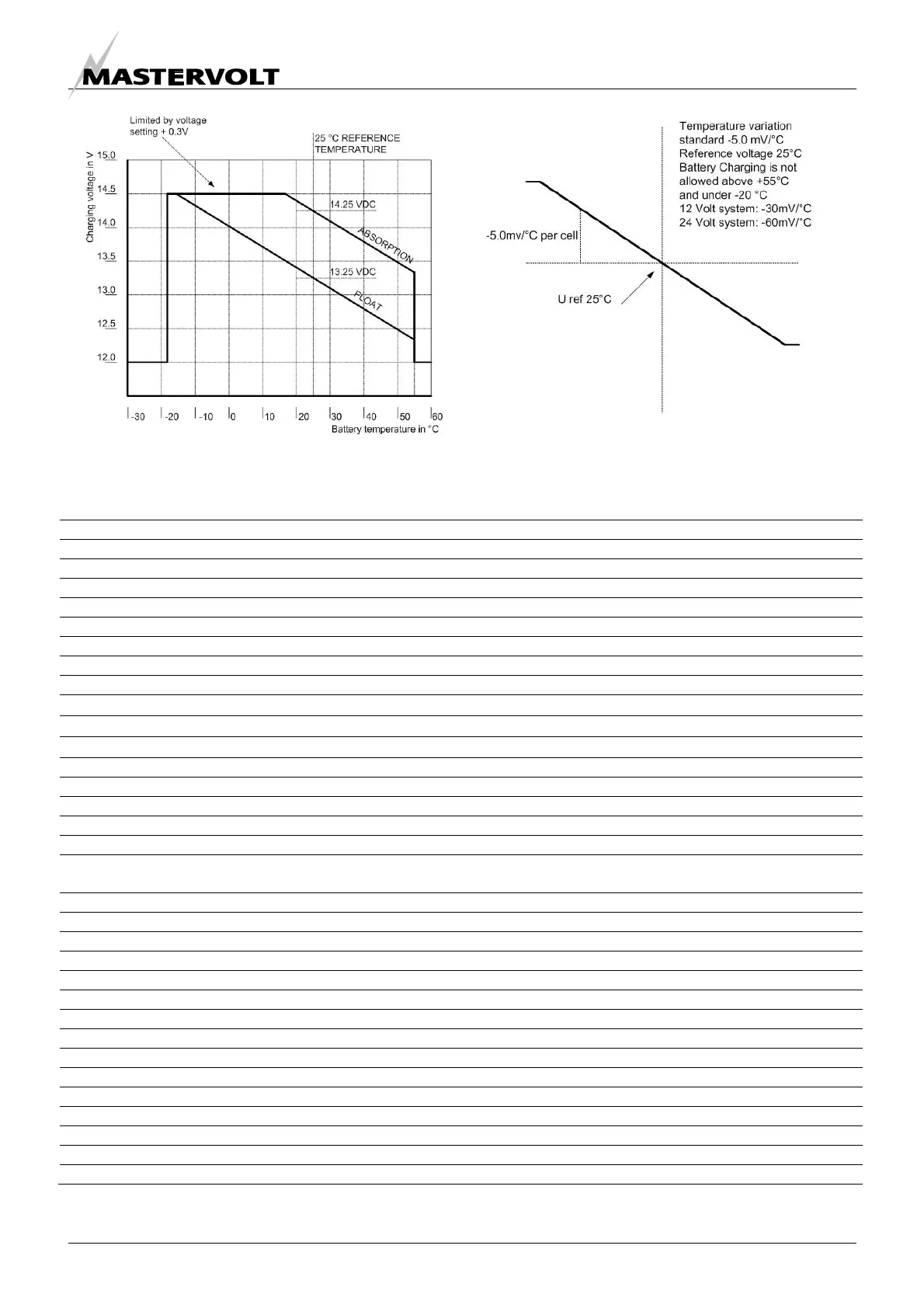

Figure 17: Temperature compensation characteristic (charge voltage versus temperature)
10 ORDERING INFORMATION
Part number Description
77040000 MasterBus terminating device
77040100 MasterBus connection cable (UTP patch cable), 1,0m / 3.3ft
77040300 MasterBus connection cable, 3.0m / 10ft
77040600 MasterBus connection cable, 6.0m / 20ft
77041000 MasterBus connection cable, 10m / 33ft
77041500 MasterBus connection cable, 15m / 49ft
77042500 MasterBus connection cable, 25m / 82ft
77050100 100m / 330ft MasterBus cable
6502001030 Modular communication cable, cross wired, 6 pole, 6 meter / 19 ft
6502100100 Modular communication cable, cross wired, 6 pole, 10 meter / 33 ft
6502100150 Modular communication cable, cross wired, 6 pole, 15 meter / 49 ft
77050200 50 pcs. modular jacks
77050000 Set to assemble MasterBus cables. Delivery: 100m / 330ft cable, 50 pcs. modular jacks and crimping tool
77030100 MasterBus USB interface, interface between your PC and the MasterBus
77010305 MasterView Easy MkII, Touch screen to control and monitor all MasterBus products
77010400 MasterView System, Full-colour touch screen to control and monitor all MasterBus products
77020100 MasterShunt 500, DC-distribution module for exact readout of battery voltage, charge / discharge current,
and state of charge on the display of the Mass Charger. continuous rating: 250A, peak current: 500A
77020200 DC Distribution 500, DC connection device with integrated fuses.
6384003200 Industrial DC fuse 32A DIN 00
6384006300 Industrial DC fuse 63A DIN 00
6384008000 Industrial DC fuse 80A DIN 00
6384010000 Industrial DC fuse 100A DIN 00
6384012500 Industrial DC fuse 125A DIN 00
6381001000 Fuse base DIN 00 (max. 160A)
79009006 Battery switch 250A with knob
79009005 Battery switch 250A with key
6387000600 Double pole automatic circuit breaker DPN 6A-B, 1P+N
6387001000 Double pole automatic circuit breaker DPN 10A-B, 1P+N
6387001600 Double pole automatic circuit breaker DPN 16A-B, 1P+N
6385401610 Double pole automatic circuit breaker and earth leakage switch DPN VIGI 16A / B / 16mA, 1P + N
41500500* Battery temperature sensor, incl. 6 meter / 19 ft cable
21730200 RJ12 splitter for C2 enclosure, refer to section 4.11
* standard included with the delivery of the Mass Charger Mastervolt can offer a wide range of products for your electrical
installation. See our website www.mastervolt.com for an extensive overview of all our products.
