Mastervolt WHISPER 3,5

30 April 2004 / WHISPER 3,5 / USA
SPARE PARTS LIST
Spare parts water pump type K, article no 050201250:
no description article no
1 screw cover, 6x 50209018
2 cover type K, 1x 50201012
3 screw impeller, 1x refer to impeller
4 Impeller (1x), including screw (3) 50209013
5 Gasket, 1x 50209012
6 Pump housing, 1x 50201013
7 Hose connector, 2x, 12,5 MM x 3/8” 50221001
8 Seal, 2x 50209015
9 O-ring, 1x 50209017
10 Bearing, 2x 50209014
11 Clip, 2x 50209019
12 Clip, 1x 50209016
13 Shaft type K, 1x 50201011
Impeller kit: impeller + gasket + screw 50209011
K
1
2
3
4
5
6
7
7
8
9
10
10
11
13
11
12
8

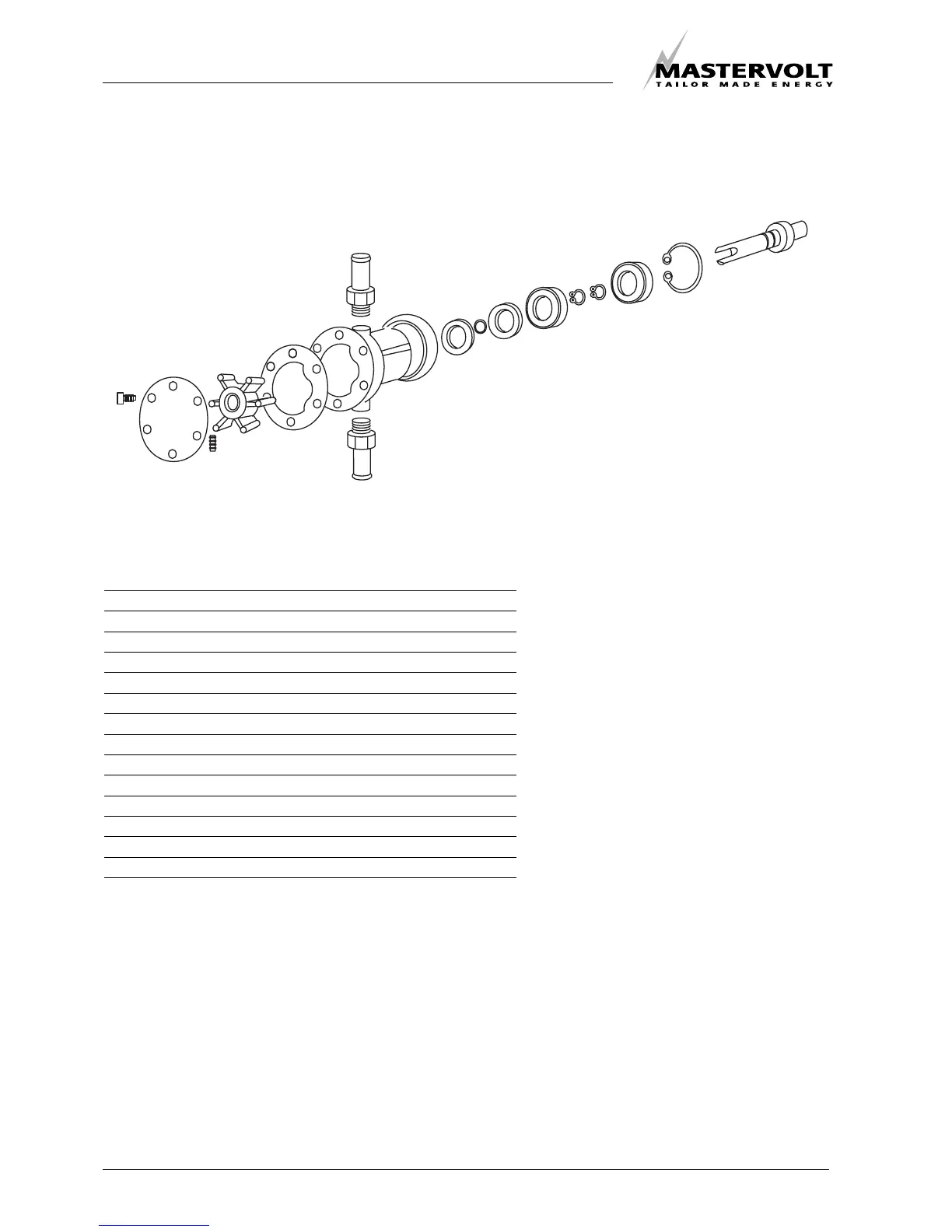

Fig. 18: Water pump type K.
