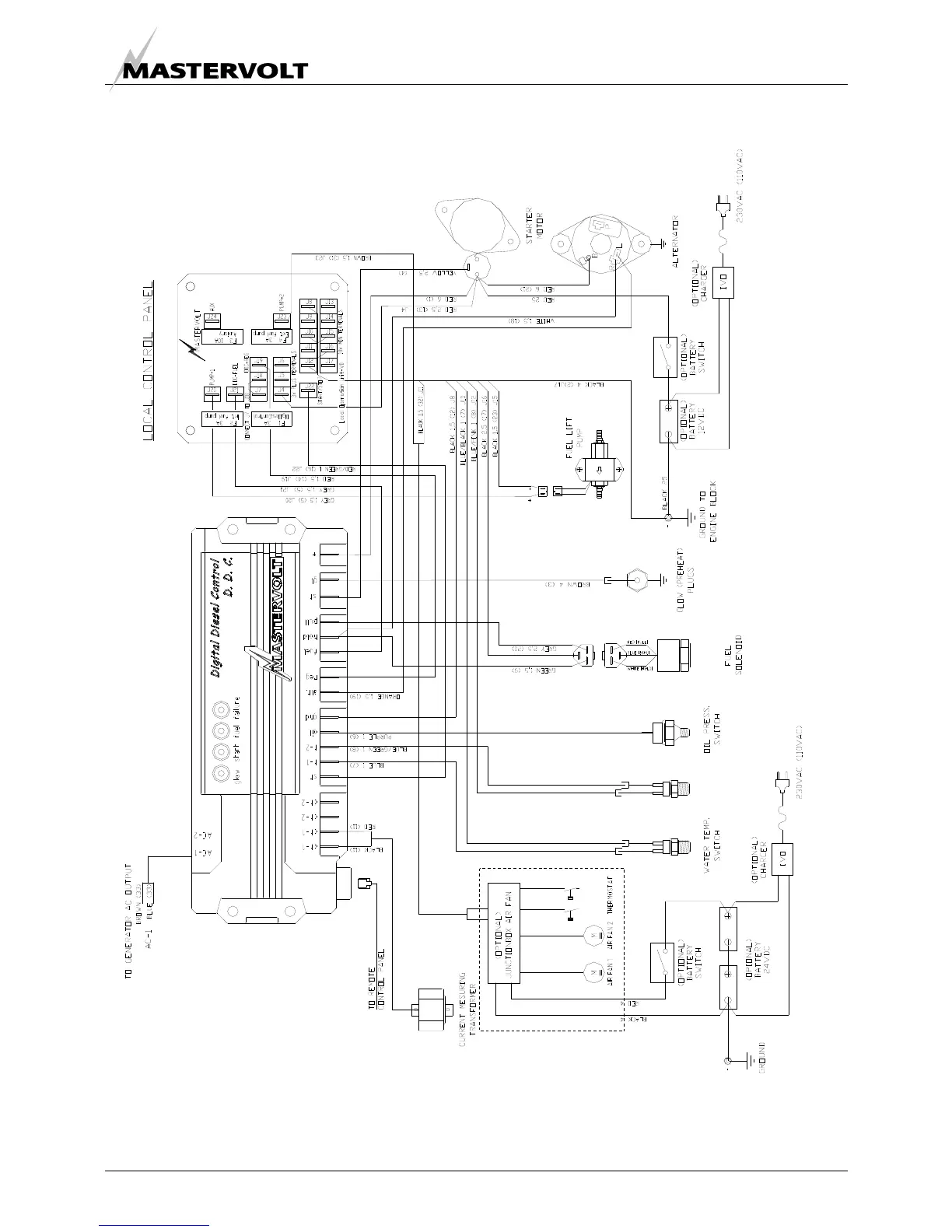

4.3 LAYOUT GENERATOR CONTROL WITH 24VDC FAN
Figure 33: Layout generator control with 24VDC radiator fan
ALTERNATOR TEMP.
SWITCH
Optional control for two speeds fans.
See chapter 4.7
