DIAGRAMS & DRAWINGS
EN/ Whisper 6 / 10 - 3000RPM for mobile applications / August 2009 / Copyright © 2009 Mastervolt / Août 2009 33

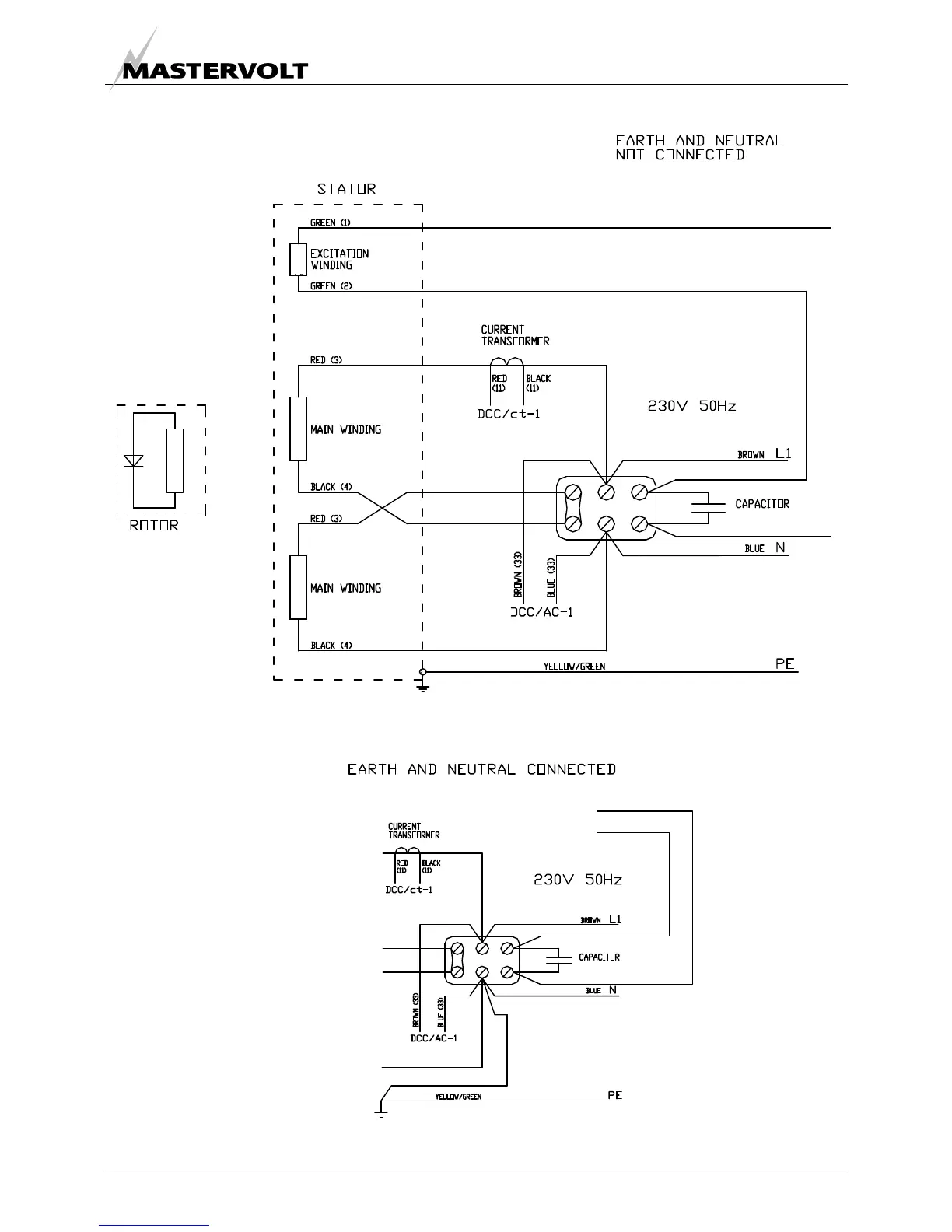

4.5 AC WIRING DIAGRAM 230V / 50HZ
Figure 34: AC wiring diagram
