DIAGRAMS & DRAWINGS
38 Copyright © 2009 Mastervolt / August 2009 / Whisper 6 / 10 - 3000RPM for mobile applications / EN
4.10 DIMENSIONS

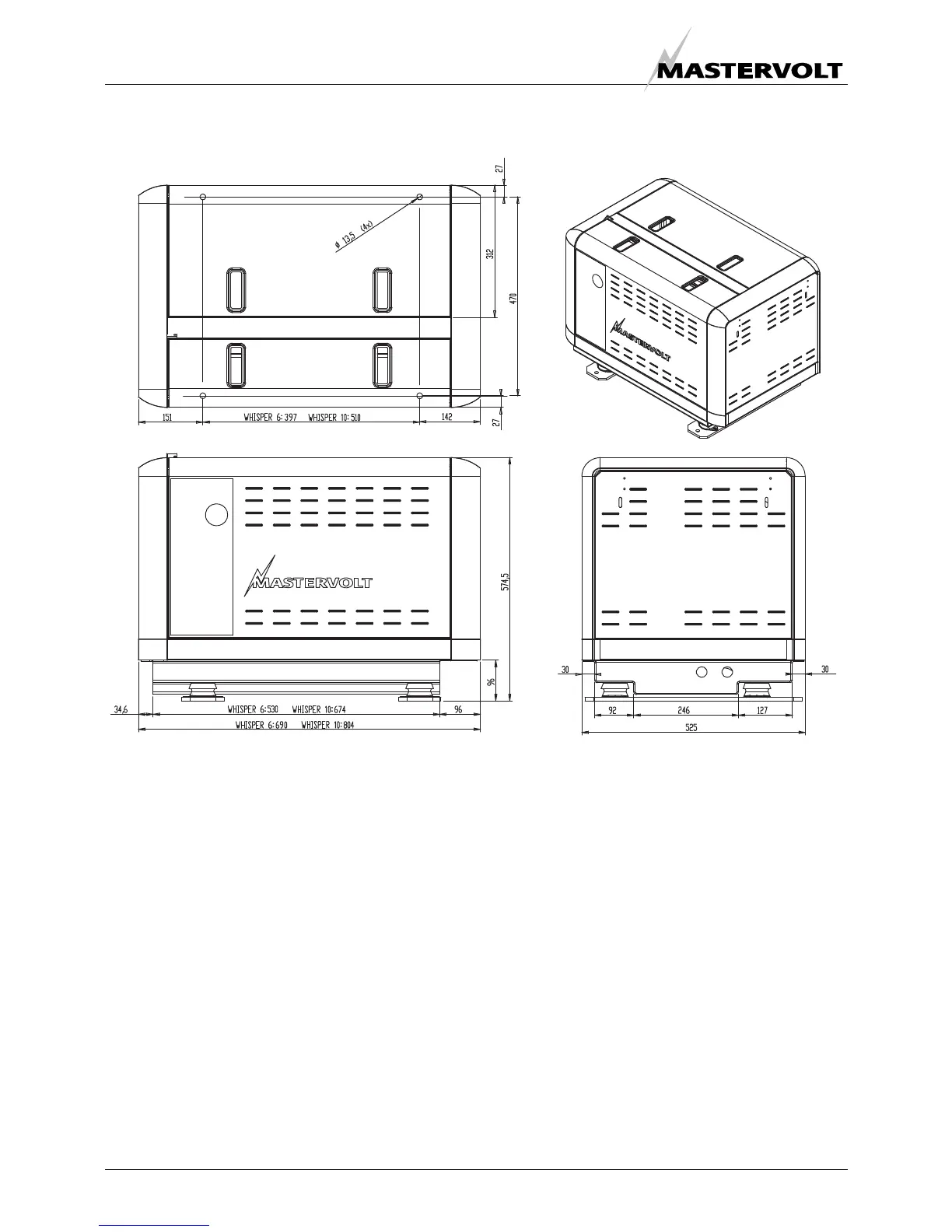

Figure 40: Outer dimensions (mm) Whisper 6 and 10
CONNECTIONS WHISPER 6 WHISPER 10 BOX DIMENSIONS WHISPER WHISPER 6
• exhaust: 1 ½” 1 ½” • length 69.0 cm (26.0’)
• fuel hose: 5/16” (8 mm) 5/16” (8 mm) • width 52.5 cm (20.7’)
• radiator alternator: 3/4” (19 mm) 3/4” (19 mm) • height 58.0 cm (22.8’)
• radiator engine: 1” (25.4 mm) 1¼” (32 mm) • weight 200 kg (440 Lbs)
• battery +: AWG 2 (25 mm2) AWG 2 (25 mm2)
• battery -: AWG 2 (25 mm2) AWG 2 (25 mm2)
POWERCABLES ISO 13297 annex A BOX DIMENSIONS WHISPER WHISPER 10
• 3 x AWG 12 (4 mm2) (not included) • length 80.5 cm (31.7’)
• width 52.5 cm (20.7’)
REMOTE CONTROL: • height 58.0 cm (22.8’)
• 15 meter (45 ft) 8 wire communication cable (included) • weight 240 kg (530 Lbs)
