DIAGRAMS & DRAWINGS
EN/ Whisper 6 / 10 - 3000RPM for mobile applications / August 2009 / Copyright © 2009 Mastervolt / Août 2009 29
4 DIAGRAMS & DRAWINGS
4.1 LAYOUT GENERATOR CONTROL WITH 230VAC FAN

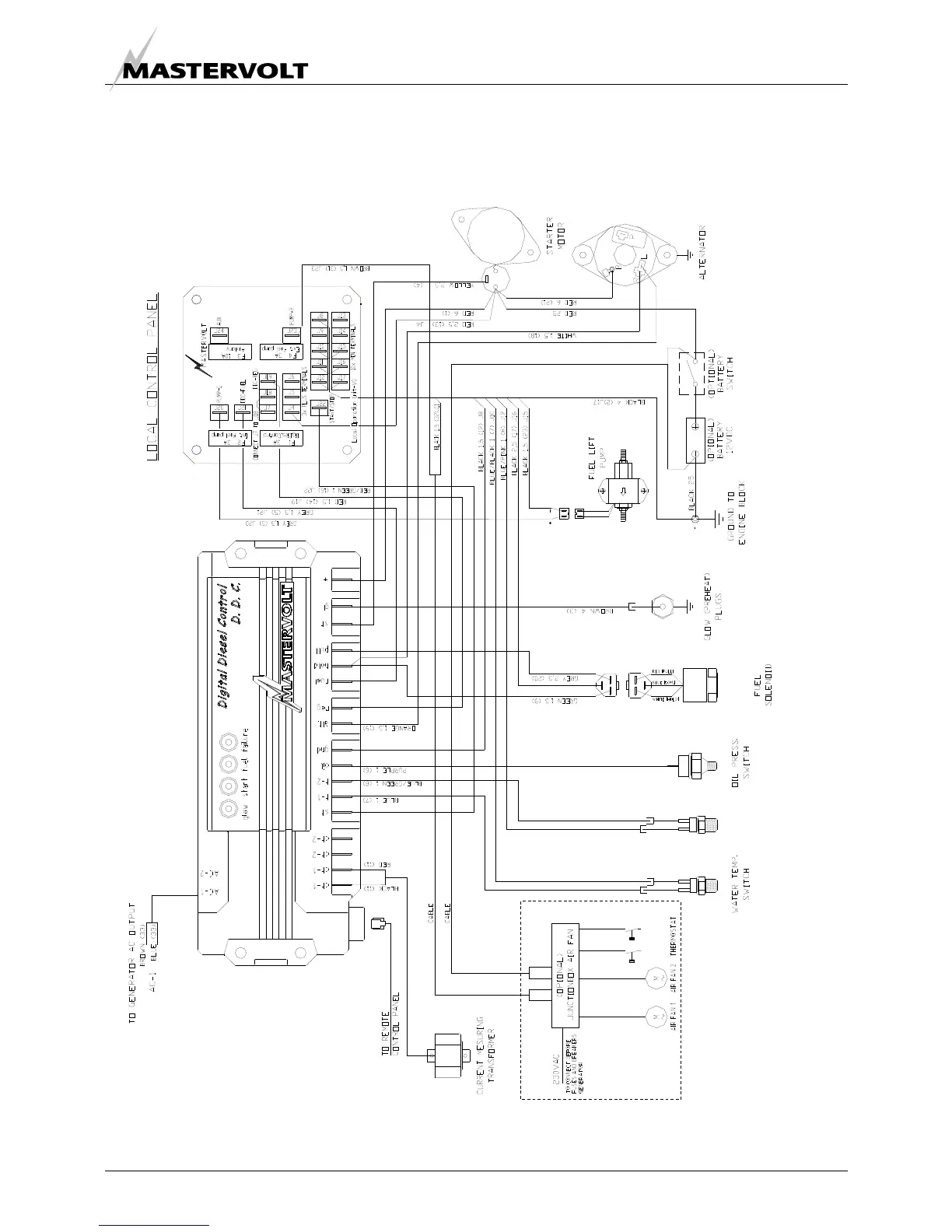

Figure 31: Layout generator control for with 230VAC radiator fan
Optional control for two speeds fans.
See chapter 4.6
ALTERNATOR TEMP.
S
WIT
C
H
