INTRODUCTION
4 Copyright © 2009 Mastervolt / August 2009 / Whisper 6 / 10 - 3000RPM for mobile applications / EN
1 INTRODUCTION
1.1 GENERAL
This installation manual applies to the installation of the
Mastervolt Whisper 6 / 10 -3000RPM mobile diesel
generating set, first launched in August 2008. This manual
is valid for the following models:
Part number Description
51102020 Whisper 6, 230V 3000rpm
Mobile / keel cooling
51102026 Whisper 6, 230V 3000rpm
Mobile / keel cooling -ungrounded
51104020 Whisper 10, 230V 3000rpm
Mobile / keel cooling
51104026 Whisper 10, 230V 3000rpm
Mobile / keel cooling -ungrounded
For other models see our website: www.mastervolt.com
WARNING
A warning symbol draws attention to special
warnings, instructions or procedures which, if
not strictly observed, may result in damage or
destruction of equipment, severe personal
injury or loss of life.
DANGER
This danger symbol refers to electric danger
and draws attention to special warnings,
instructions or procedures which, if not strictly
observed, may result in electrical shock which
will result in severe personal injury or loss of
life.
WARNING!
Before working (installation) on the system
read the section safety instructions in the
user’s manual
1.2 GENERATING SETS FOR VEHICLES
1.2.1 Marine and mobile generators
Whisper Generators originate from the marine sector. But
there are also specially designed Whispers available for
mobile applications, suitable for supplying power on board
of vehicles to use professional apparatus and equipment,
strong lightning and air conditioning etc. The cooling
system and exhaust system on vehicles is completely
different from standard marine systems. Standard marine
generators are cooled by seawater that nowhere exceeds
30° Celsius and is seldom warmer than 20° Celsius in the
northern territories. Cold seawater is pumped through the
alternator, through the heat exchanger and is injected in
the exhaust. The exhaust gasses are therefore cooled and
rubber exhaust hose can be used.
On vehicles the engine and alternator are individually
cooled by radiator with an electric (12V/24V or 230V)
driven fan. The radiators can be fitted below, on top or in
the side of the vehicle.
The exhaust is of the dry type and includes a stainless
flexible bellow and high quality mufflers.
Never use rubber exhaust hose, neither
fibreglass nor plastic exhaust parts in a dry
exhaust system as applied on vehicles.

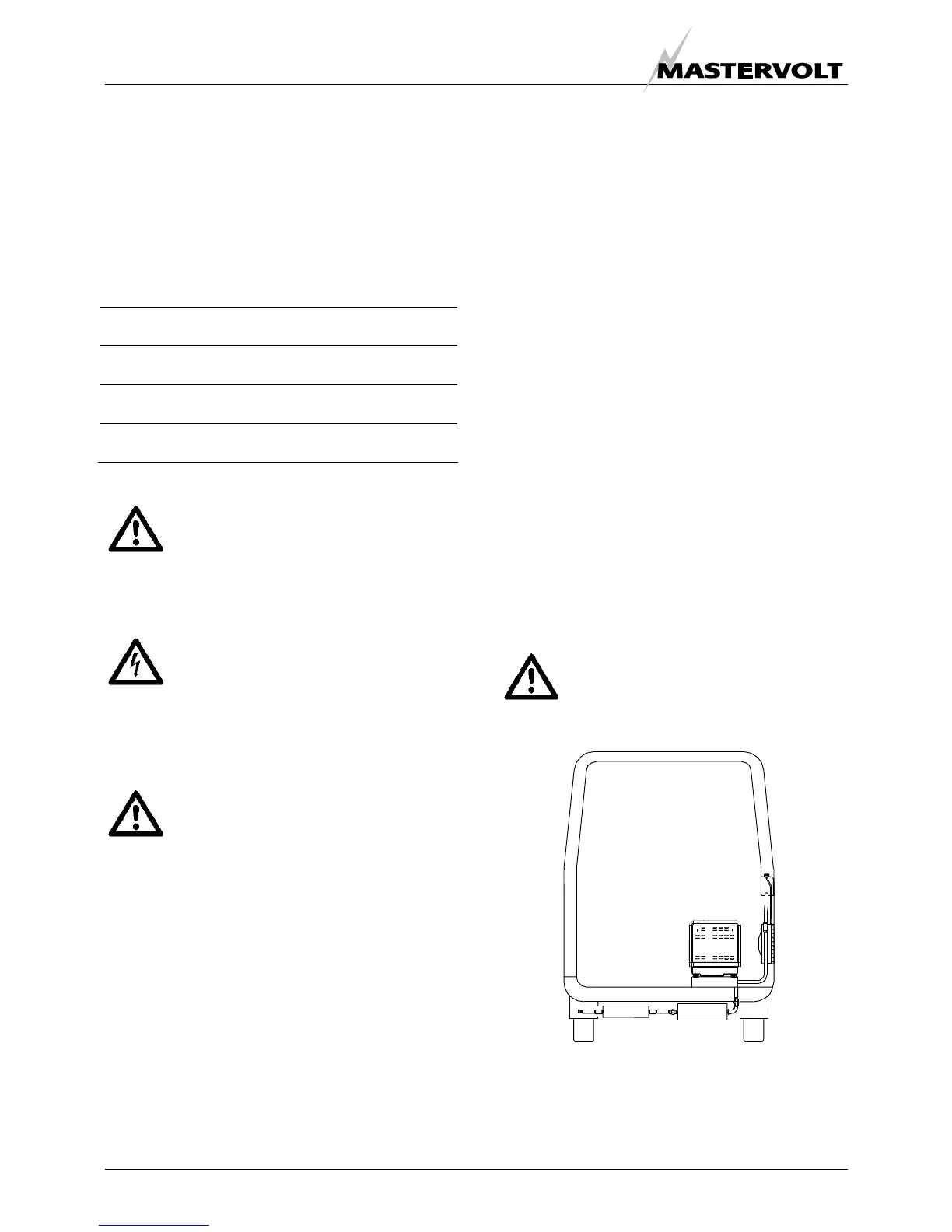

Figure 1: Typical vehicle application radiator side mounted
