Mastervolt Whisper 6 Installation Manual

INSTALLATION
EN/ Whisper 6 / 10 - 3000RPM for mobile applications / August 2009 / Copyright © 2009 Mastervolt / Août 2009 9

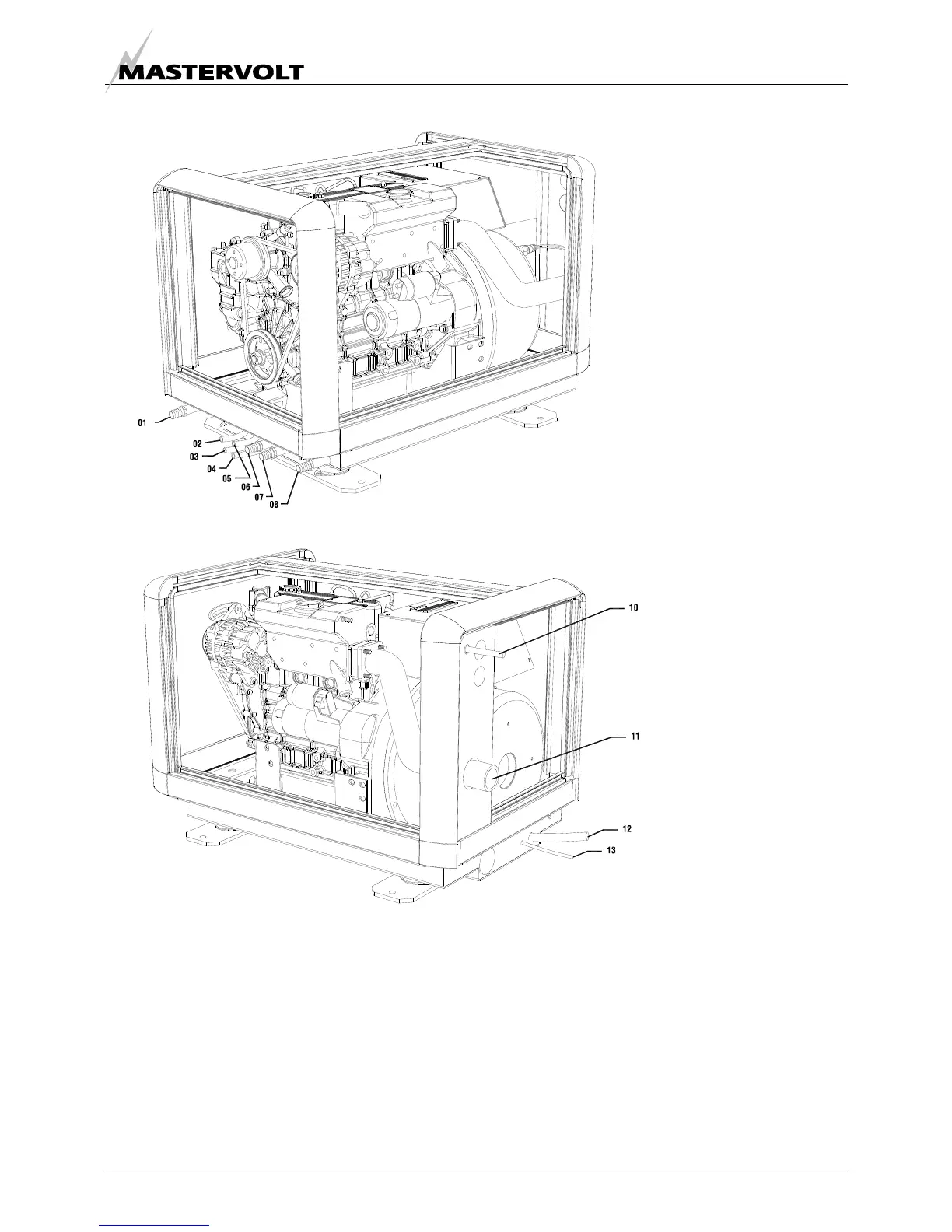

Fig. 7 Connections Whisper 6 and 10 for mobile applications
01 Coolant generator in
02 Battery positive (+)
03 Fuel out Ø8mm
04 Fuel in Ø8mm
05 Battery negative (–)
06 Coolant engine out
07 Coolant engine in
08 Coolant generator out
10 Expansion tank
11 Exhaust 1½”
12 AC power output
13 Remote control
