MBT1015 rev-C
User’s Manual Versio18.08
16. Just press key if you need to printout the results.
17. To exit the program, pressing the key at any moment will exit and
return back to the menu screen (Fig.48).
7.4 Grounding Test
The engine body and the vehicle chassis are always connected to the battery
negative terminal to provide the electrical return path (grounding) for all the
electrical components. Due to the surrounding environmental effect, the surface
contacts of these joints or connections of these circuits will subject to oxidation
and corrosion in a matter of time rendering them to have high resistance in it.
One typical example is the connection at the battery terminals where oxidation
and corrosion takes place very often. If these contacts were no good then it will
pose a lot of electrical problems to the vehicle.
To check the grounding condition, this Analyser will measure the resistance from
the engine body contact to the battery terminal then it will display the results and
the recommendations.
Start Testing
1. With engine OFF, place the vehicle transmission in NEUTRAL for Manual and
PARK for Automatic and apply the parking brake.

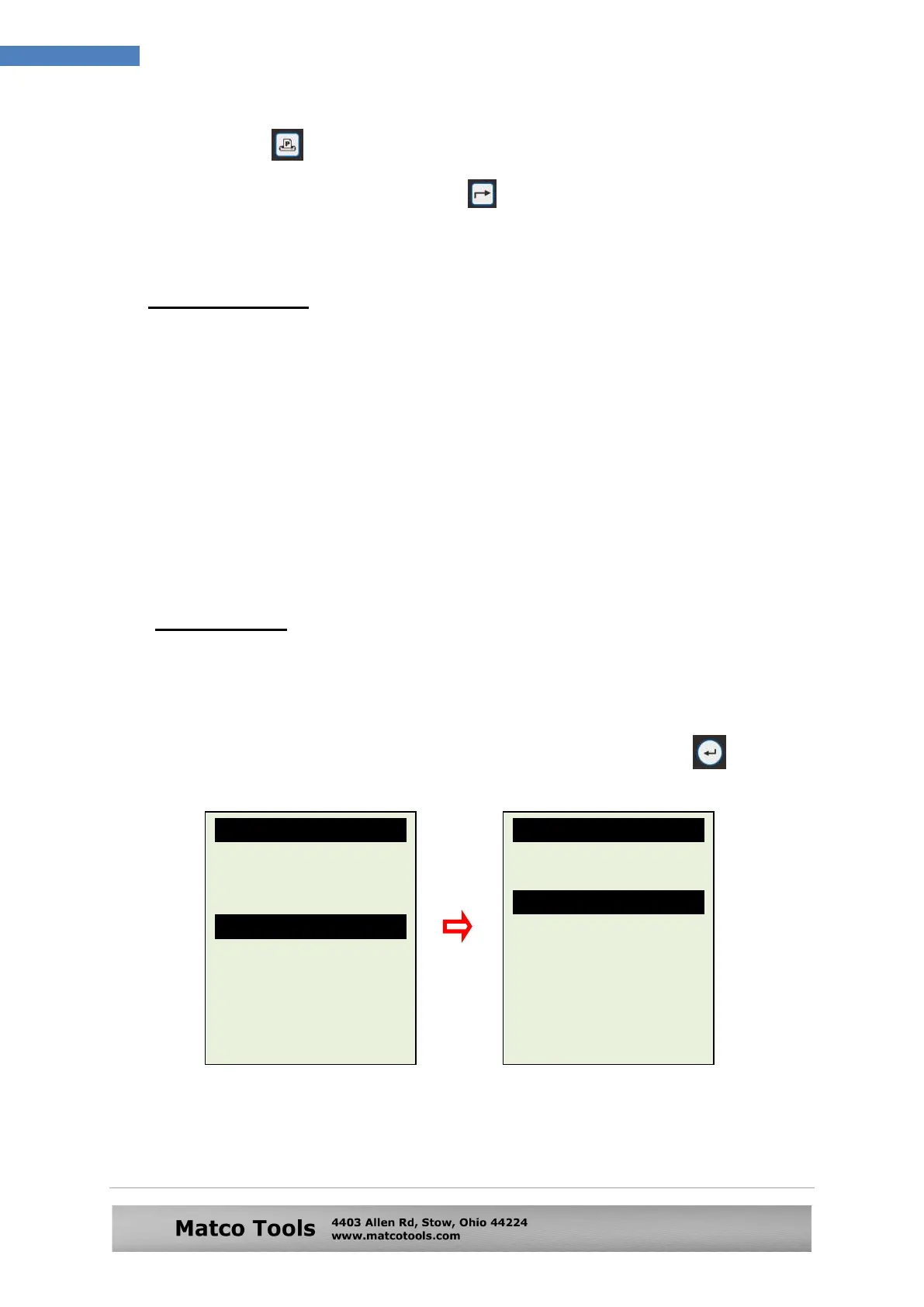

2. Attach the Analyser clips onto the battery terminal posts and it will power up
and lights up the LCD display screen as shown (Fig.64). Press key and
the display will show as Fig. 65 below.
Select Menu
23/12/2014 16:48
New Test
Continue Testing
Stored Results
Setup Menu
Select Test
Battery Test
Grounding Test
Starter Test
Charging Test
[Enter] to proceed
Fig.64
Fig.65
To Next Page
