3.3 Regulating the Tension of Driving Belt
ATTENTION: The machine shall always stand still for
regulating the tension.

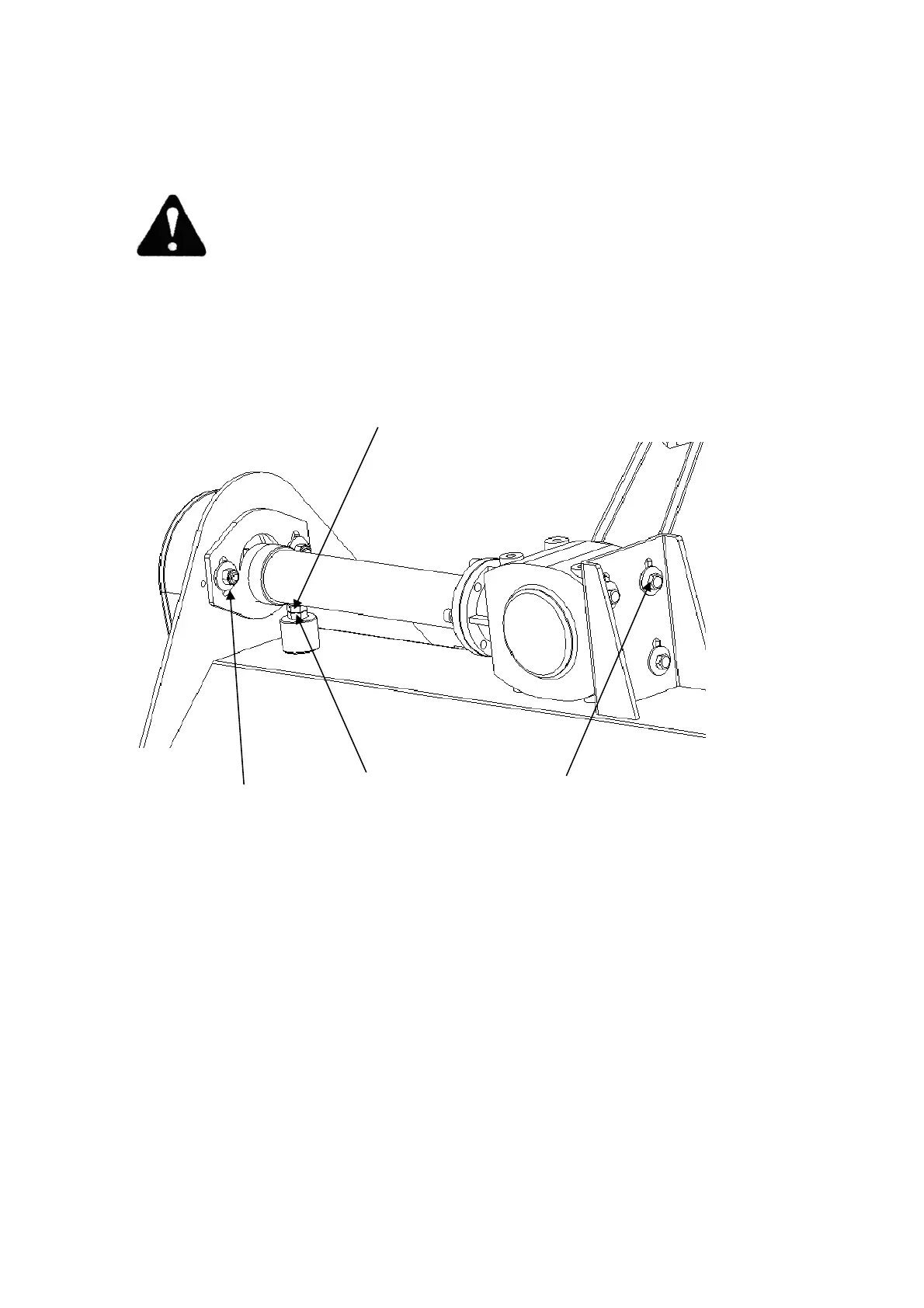

Remove the drivng betl cover. Loosen screws 1 2 3 4. and adjust screw 1. Tighten the
screws 1 2 3 4 . Put back the driving belt cover.
1
2 3 4
3.4 Staring up
Before starting the machine, control and adjust the following items:
z Tension of trapezoidal driving belt.
z Oil level of gear.
z Point of lubrication
z All bolts, nuts and screws.
