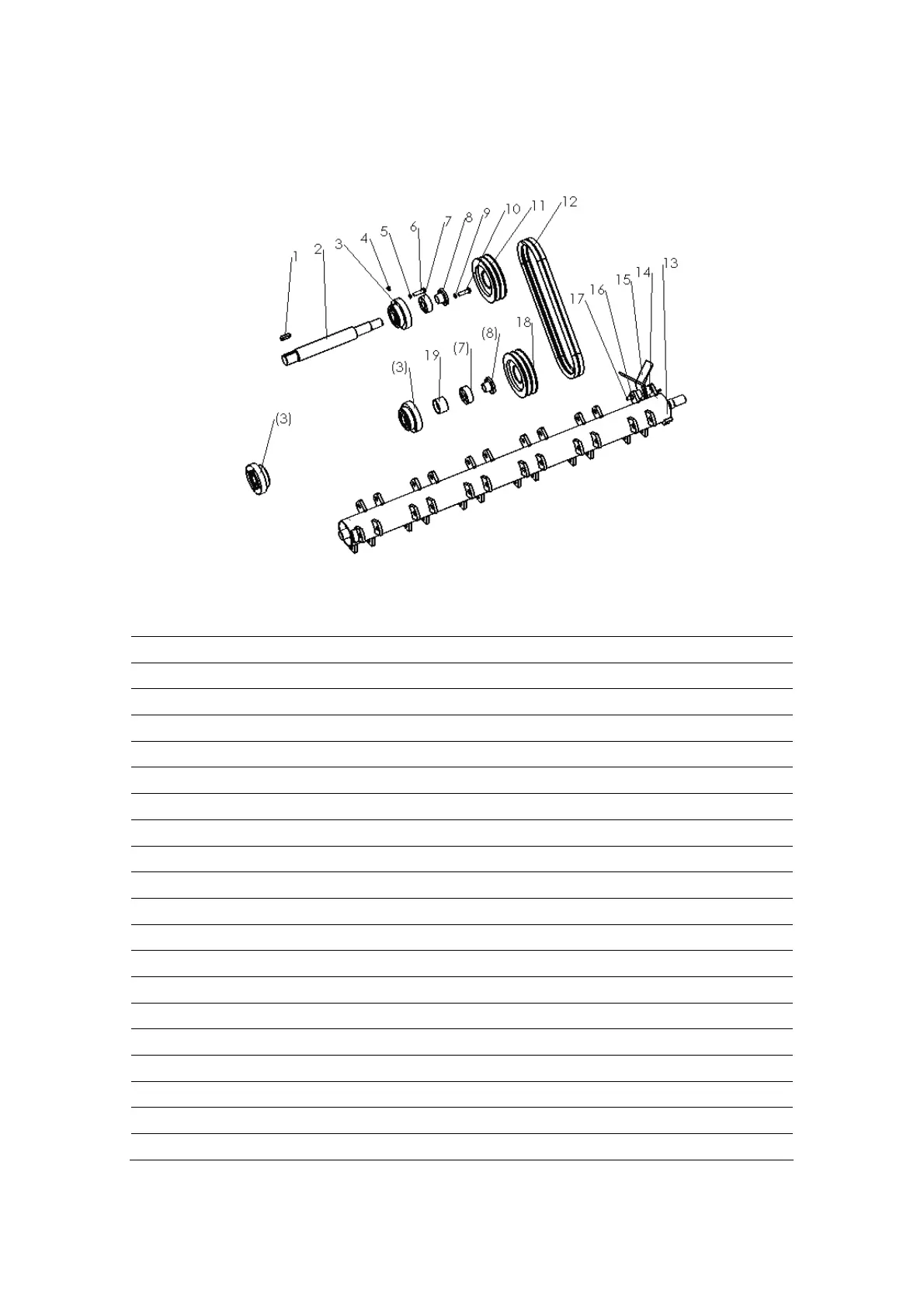

5.3 Blade Axle and Transmission Parts (EF95-EF155)

Blade Axle and Transmission Parts

Ser.No Part No Name and Specification Quantity Remarks

1 GB1096-79 Key 10×30 1

2 SL100.00.113 Transmission shaft 1

3 UC205-Z Bearing with flange 90207 3

4 Grease nipple M8 1

5 GB 93-87 Spring lock washer 8 14

6 GB 5783-86 Hex. head bolt M8×25 14

7 SL100.00.109 Outer swellable sleeve 2

8 SL100.00.110 Inner swellable sleeve 2

9 GB 93-87 Spring lock washer 6 6

10 GB 70-85 Hex. head bolt M6×25 6

11 SL100.00.114 Belt wheel (large) 1

12 GB Belt 2

13 SL100.00.012 Blade axle 1

14 SL100.00.103 Spacer 36

15 SL100.00.102 Blade 36

16 GB 6170-86 Hex. nut M12 18

17 GB 5780-86 Hex. head bolt M12×80 18

18 SL100.00.111 Belt wheel (little) 1

19 SL100.00.108 Sleeve 1
