CHAPTER Ⅱ SPECIFICATIONS
2.1 Brief Introduction
The series Flail mower is designed for pulverizing grass and short bramble, and shall be
used in the indicated purpose.
The Flail mower consists of a rotating shaft with many blades attached to it. The blades cut
the grass while traveling over the working area. Rotational power to the shaft is provided by
the tractor PTO through the gearbox in the center of the machine.
The Flail mower attaches to the 3 point hitch on the tractor.

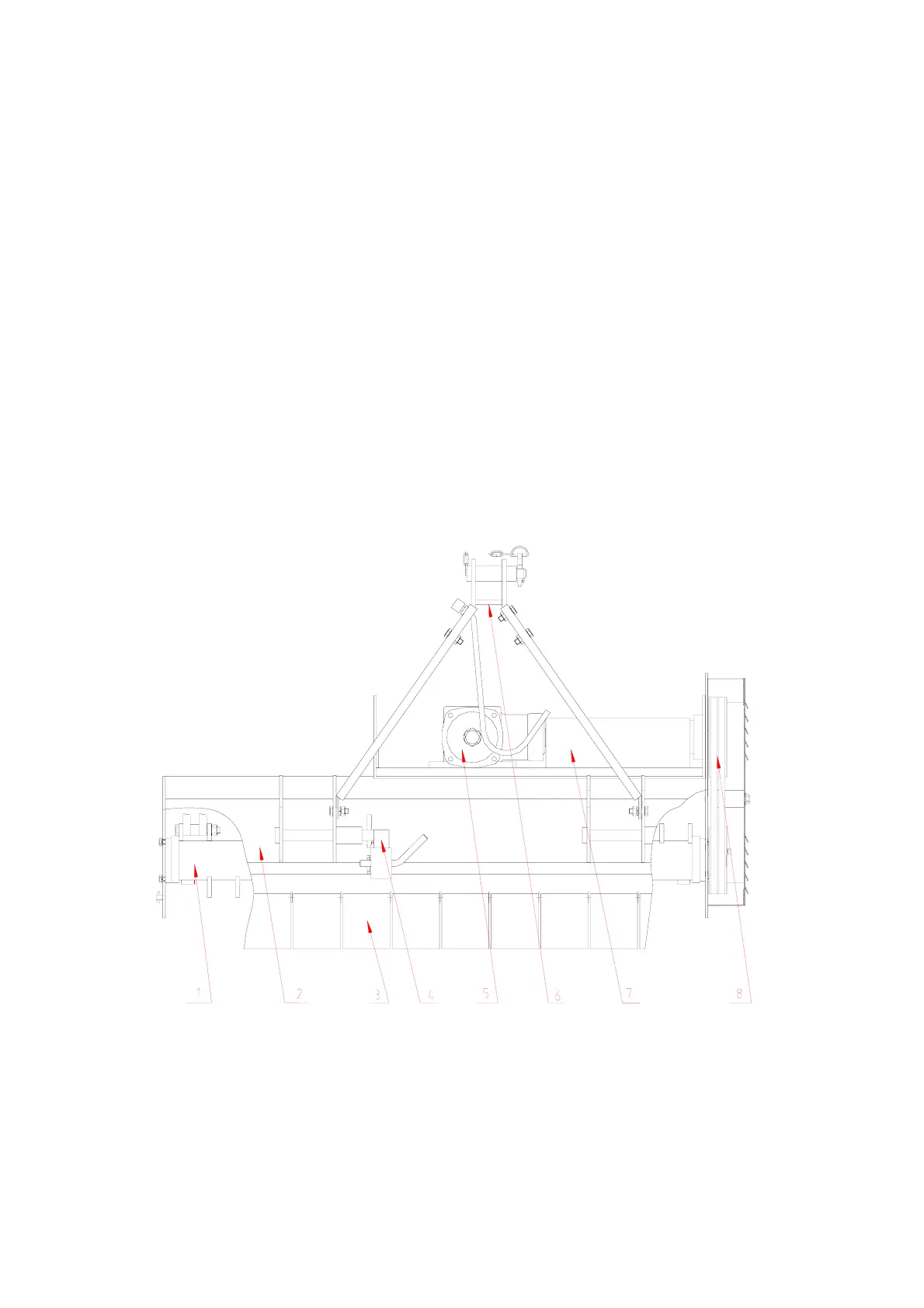

Fig. 2.1 Main components of the Flail mower
1. Blade axle 2. Blade axle cover 3. Combined fender 4.Supporting frame
5. Gearbox assembly 6. Suspension bracket 7. Transmission shaft 8. Belt wheel and belt
