Mateng EF95 - Gearbox Assembly (EF95-EF155)

17

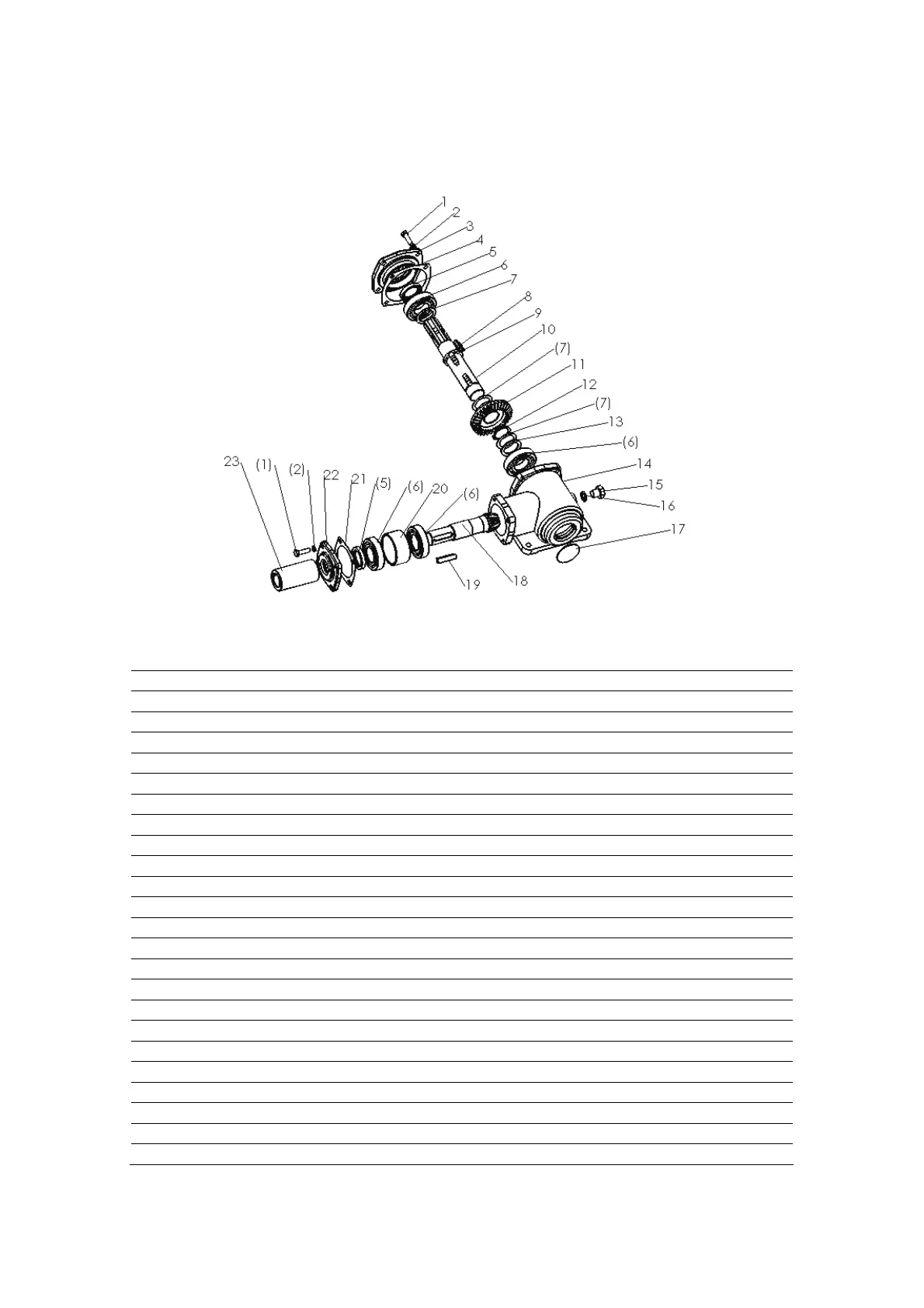

5.2 Gearbox assembly (EF95-EF155)
Gearbox Assembly
Ser.No Part No Name and Specification Quantity Remarks
1 GB 5783-86 Hex. head bolt M8×30 8
2 GB 93-87 Spring lock washer 8 8
3 SL100.01.107 Bearing cover 1
4 SL100.01.108 Paper gasket 1
5 GB 13871-94 Oil seal 35×50×8 2
6 GB/T 276-94 Bearing 6207 4
7 SL100.01.109 Adjusting shim 4
8 SL100.01.110 Key 1
9 SL100.01.111 Pressure spring 2
10 SL100.01.106 Input shaft 1
11 SL100.01.112 Bevel gear 1
12 GB 894.1 - 86 Blocked patch 35 1
13 SL100.01.114 Retainer 1
14 SL100.01.113 Case 1
15 12.37.149 Combined seal washer 1
16 200.38.024 Oil drain plug 1
17 Blocked patch 1
18 SL100.01.105 Output shaft 1
19 GB1096-79 Key 10×45 1
20 SL100.01.104 Spacer sleeve 1
21 SL100.01.103 Paper gasket 1
22 SL100.01.102 Bearing cover 1
23 SL100.01.101 Connected sleeve 1
