Matrix C3X-02 User Manual

49
CHAPTER 9: PART REPLACEMENT GUIDE
9.3 CONSOLE KEYPAD / OVERLAY REPLACEMENT - CONTINUED

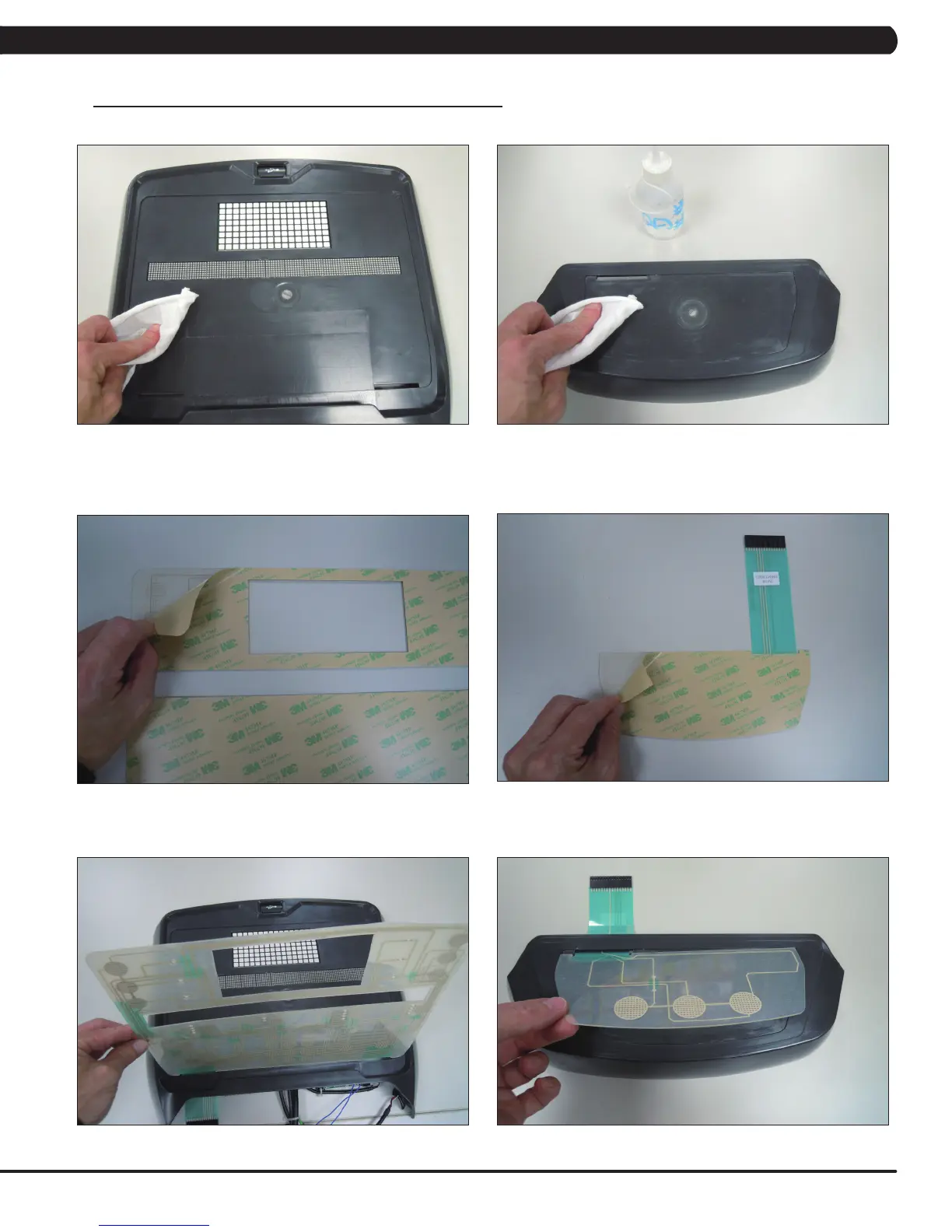

5) Clean the console area with alcohol to remove any left over adhesive (Figure G & H).
6) Peel the backing off of the new keypad Figures I & J).
7) Slide the ribbon cables through the slots in the console faceplate (Figure K & L).
FIGURE G
FIGURE H
FIGURE I
FIGURE J
FIGURE LFIGURE K
