Matrix C3X-02 User Manual

50
9.3 CONSOLE KEYPAD / OVERLAY REPLACEMENT - CONTINUED
CHAPTER 9: PARTS REPLACEMENT GUIDE

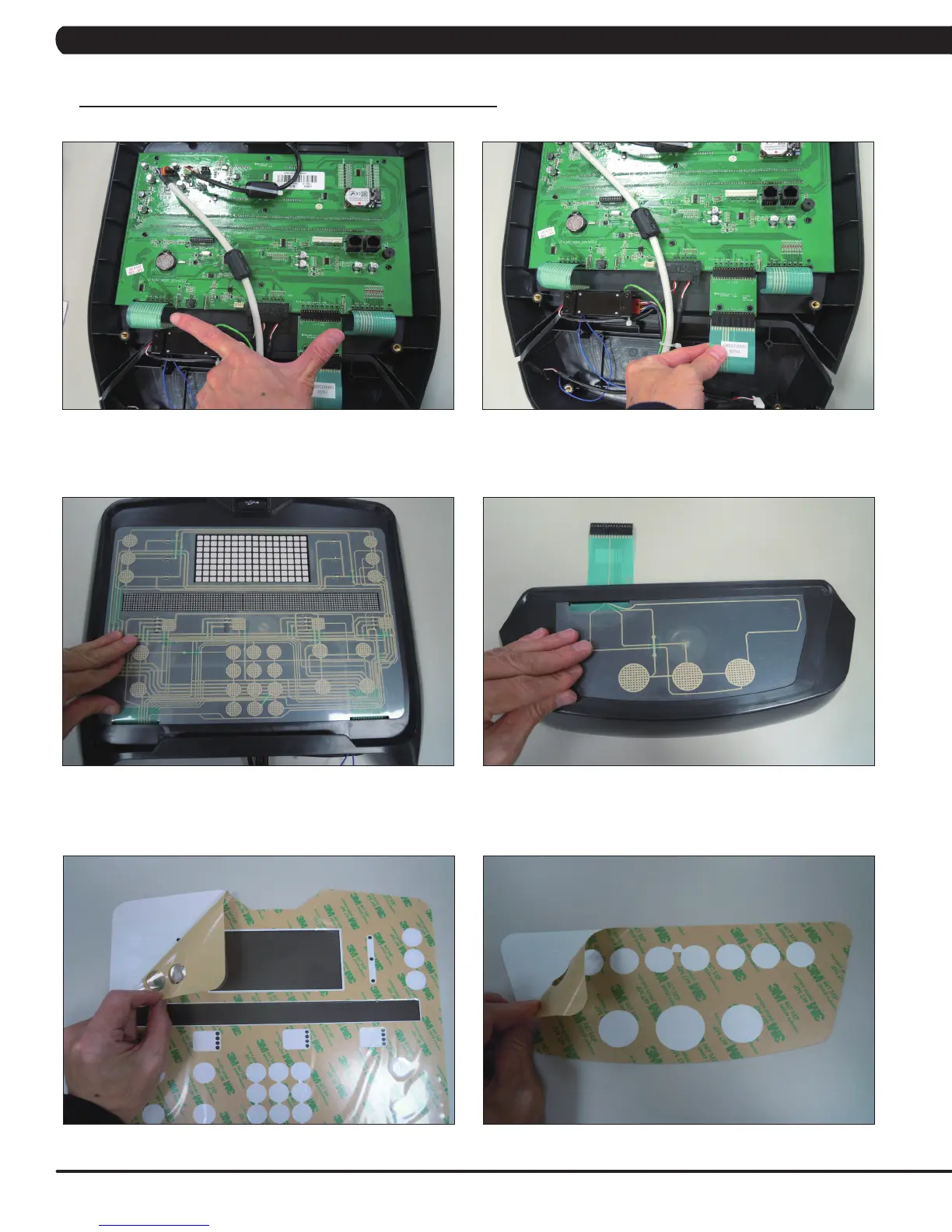

FIGURE M
8) Plug the ribbon cables into the UCB (Figures M & N).
9) Carefully line up the new keypad to the outline in the console faceplate (Figure O & P).
10) Peel the backing off of the new overlay (Figure Q & R).
FIGURE RFIGURE Q
FIGURE PFIGURE O
FIGURE N
